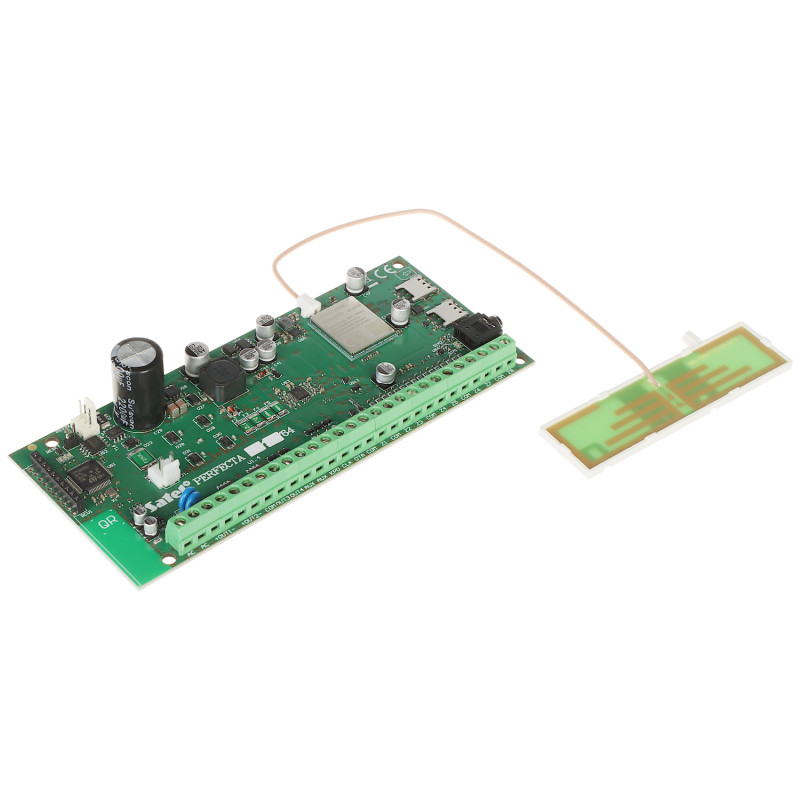

Hybrid Alarm Control Panel GPRS LTE Grade 2 Home and Office Security System SATEL PERFECTA-64-M
zł897.90
Tax included
The PERFECTA series alarm control panels are modern and reliable solutions designed for comprehensive protection of small and medium-sized facilities, such as apartments, detached houses, terraced houses, offices, and small businesses. The device provides professional protection in accordance with the strict requirements of Grade 2 according to the EN 50131 standard, which guarantees a high level of security and resistance to sabotage attempts.
The PERFECTA-64-M model is distinguished by its unique hybrid architecture, which allows for the free combination of traditional wired installations with advanced wireless systems. Thanks to the ability to connect ABAX 2 system controllers (operating in the 868 MHz band) or MICRA system modules (433 MHz), the control panel becomes an extremely flexible tool, ideal for expanding existing systems without the need for costly and troublesome new wiring.
The integrated GPRS/LTE module offers the user a wide spectrum of communication channels. It enables cooperation with the intuitive PERFECTA CONTROL mobile application, support for PUSH notifications, as well as remote system configuration using PERFECTA Soft software. The control panel supports event monitoring to security stations, voice notification, and control via simple SMS commands. Connection security is enhanced by two nano-SIM card slots, which ensures full redundancy – in the event of one operator's failure, the system automatically switches to the second network.
An advantage of the system is also the built-in acoustic alarm verification module, allowing for real-time listening to sounds from the protected facility. This solution significantly facilitates event verification and reduces the number of false interventions. PERFECTA-64-M is the heart of the system, combining functionality, ease of use, and professional security technology.
Hybrid Alarm Control Panel GPRS LTE Grade 2 Home and Office Security System
Model: SATEL PERFECTA-64-M
EAN: 6931240099803 SKU: 931099801
- Compliance with EN 50131 Grade 2 standard
- Hybrid design: support for wired and wireless systems (ABAX 2 / MICRA)
- Integrated LTE and GPRS communicator with dual nano-SIM card support
- Support for up to 64 programmable inputs and 64 outputs
- System can be divided into 4 security zones
- Compatible with the PERFECTA CONTROL mobile app (PUSH notifications)
- Built-in voice module for telephone notifications
- Acoustic alarm verification function (listening-in)
- Remote configuration and firmware updates via GPRS/LTE
- Built-in switching power supply with full battery diagnostics
Description
The PERFECTA series alarm control panels are modern and reliable solutions designed for comprehensive protection of small and medium-sized facilities, such as apartments, detached houses, terraced houses, offices, and small businesses. The device provides professional protection in accordance with the strict requirements of Grade 2 according to the EN 50131 standard, which guarantees a high level of security and resistance to sabotage attempts.
The PERFECTA-64-M model is distinguished by its unique hybrid architecture, which allows for the free combination of traditional wired installations with advanced wireless systems. Thanks to the ability to connect ABAX 2 system controllers (operating in the 868 MHz band) or MICRA system modules (433 MHz), the control panel becomes an extremely flexible tool, ideal for expanding existing systems without the need for costly and troublesome new wiring.
The integrated GPRS/LTE module offers the user a wide spectrum of communication channels. It enables cooperation with the intuitive PERFECTA CONTROL mobile application, support for PUSH notifications, as well as remote system configuration using PERFECTA Soft software. The control panel supports event monitoring to security stations, voice notification, and control via simple SMS commands. Connection security is enhanced by two nano-SIM card slots, which ensures full redundancy – in the event of one operator's failure, the system automatically switches to the second network.
An advantage of the system is also the built-in acoustic alarm verification module, allowing for real-time listening to sounds from the protected facility. This solution significantly facilitates event verification and reduces the number of false interventions. PERFECTA-64-M is the heart of the system, combining functionality, ease of use, and professional security technology.
Specification
Wireless System
Cooperation with ABAX 2 (up to 48 devices, 4 keypads) or MICRA (up to 64 detectors, 4 sirens, 4 keypads); requires ACU-220/280 controller or PERFECTA-RF.
Local Inputs and Outputs
8 programmable inputs on the main board; 4 programmable outputs (2 high-current 1A, 2 low-current 25mA).
Maximum System Capacity
Support for up to 64 programmable inputs and up to 64 programmable outputs after expansion with expanders.
System Structure
Division into 4 independent zones; 3 arming modes in each zone (full, day, night); possibility to assign an input to 1-4 zones.
Users and Memory
Support for 62 users + 1 administrator; event log with a capacity of 3584 entries; 8 programmable timers.
GSM/LTE Communication
Integrated module with 2 nano-SIM slots; support for SMS, monitoring to stations (GPRS), PUSH notifications, and app control.
Audio Verification
Built-in acoustic alarm verification module; possibility to listen to sounds from the facility via phone.
Communication Bus
Dedicated bus for keypads (INT-TSH2, INT-TSG2, PRF-LCD) and expansion modules (INT-E, INT-O, INT-ORS).
Standards and Security
Grade 2 according to EN 50131; built-in self-diagnostic function for key system components.
System Power Supply
Requires 18 V AC power supply; built-in 2 A switching power supply; 2 power outputs on the main board.
Battery Support
Battery charging and monitoring circuit; deep discharge protection; charging current control.
Environmental Parameters
Operating temperature from -10 °C to 55 °C; permissible humidity up to 93% (non-condensing).
Dimensions and Construction
PCB dimensions: 160 x 69 mm; RS-232 port (pin5) for local programming from a computer.
Software
The system works with two key applications: PERFECTA Soft and PERFECTA CONTROL. PERFECTA Soft is professional software designed for installers, allowing for full configuration of all control panel parameters from a computer. It enables editing names, assigning inputs to zones, and setting timer schedules in a graphical and clear way. The connection can be made locally or remotely via LTE. PERFECTA CONTROL is a mobile application for the end user, offering instant PUSH notifications about events, remote arming and disarming of the system, and control of control outputs (e.g., gates, lighting). The application is characterized by a high level of security thanks to encrypted communication and the lack of need for the control panel to have an external IP address.
Contents
1x PERFECTA-64-M control panel board
1x GSM antenna
1x Mounting accessories (plugs, resistors)
1x Quick start guide
Dimensions, Weight
Product dimensions: 25 x 160 x 69 mm (D x W x H)
Packaging dimensions: 55 x 230 x 130 mm (D x W x H)
Product weight: 96 g
Weight with packaging: 214 g
