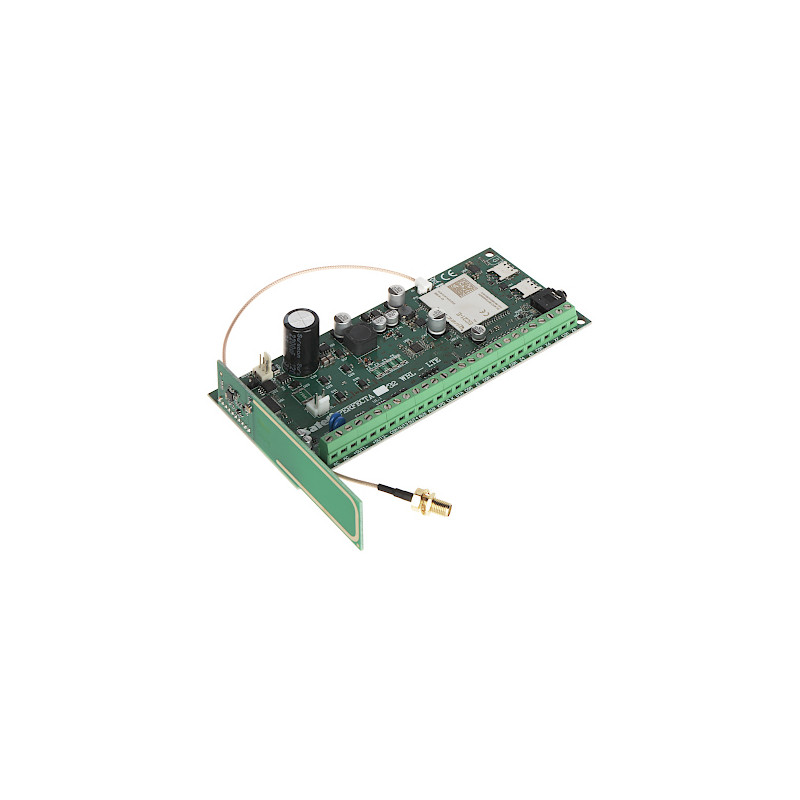

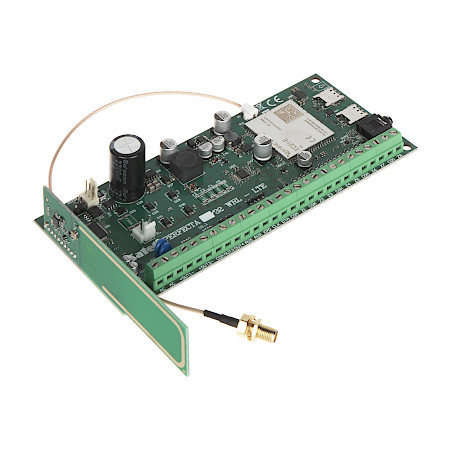

LTE Hybrid Grade 2 Wireless 433MHz Alarm Control Panel Intrusion and Robbery Signaling System SATEL PERFECTA-32-WRL-LTE
zł1,314.87
Tax included
The Satel PERFECTA-32-WRL-LTE alarm control panel is an advanced heart of a security system, designed to protect small and medium-sized facilities. The device is distinguished by its hybrid architecture, which means it allows for the creation of fully wired, wireless, and mixed systems. Thanks to LTE technology support, the control panel guarantees lightning-fast and reliable communication with monitoring stations and the end user.
One of the key advantages of the device is the built-in radio module operating at 433 MHz, which enables two-way communication with wireless PRF-LCD-WRL keypads and MSP-300-R sirens. Additionally, the system works with a wide range of MICRA series detectors and modern MPT-350 keyfobs, meaning that expanding the installation with new protection points does not require troublesome wall chasing or cable laying.
The control panel meets the strict requirements of the Grade 2 EN 50131 standard, which confirms its high effectiveness in detecting threats. Communication security is enhanced by two nano-SIM card slots. In the event of a signal failure from one operator, the system automatically switches to the second card, ensuring continuity of monitoring and notification. The user has access to the intuitive PERFECTA CONTROL mobile app, which allows for full remote control of the system, receiving PUSH notifications, and real-time event verification. It is an ideal solution for those seeking professional protection combined with maximum user comfort.
LTE Hybrid Grade 2 Wireless 433MHz Alarm Control Panel Intrusion and Robbery Signaling System
Model: SATEL PERFECTA-32-WRL-LTE
EAN: 6931240086339 SKU: 931086335
- Compliance with EN 50131 Grade 2 standard
- Built-in LTE / HSPA+ / EDGE / GPRS communicator
- Support for 2 nano-SIM cards for maximum connection reliability
- Integrated 433 MHz radio module for wireless systems
- Two-way communication with PRF-LCD-WRL keypads
- Compatibility with MICRA series detectors and MPT-350 keyfobs
- Support for up to 32 inputs and 16 programmable outputs
- Built-in voice module with 16 messages
- Acoustic alarm verification function (listening-in)
- Remote control via free PERFECTA CONTROL mobile app
Description
The Satel PERFECTA-32-WRL-LTE alarm control panel is an advanced heart of a security system, designed to protect small and medium-sized facilities. The device is distinguished by its hybrid architecture, which means it allows for the creation of fully wired, wireless, and mixed systems. Thanks to LTE technology support, the control panel guarantees lightning-fast and reliable communication with monitoring stations and the end user.
One of the key advantages of the device is the built-in radio module operating at 433 MHz, which enables two-way communication with wireless PRF-LCD-WRL keypads and MSP-300-R sirens. Additionally, the system works with a wide range of MICRA series detectors and modern MPT-350 keyfobs, meaning that expanding the installation with new protection points does not require troublesome wall chasing or cable laying.
The control panel meets the strict requirements of the Grade 2 EN 50131 standard, which confirms its high effectiveness in detecting threats. Communication security is enhanced by two nano-SIM card slots. In the event of a signal failure from one operator, the system automatically switches to the second card, ensuring continuity of monitoring and notification. The user has access to the intuitive PERFECTA CONTROL mobile app, which allows for full remote control of the system, receiving PUSH notifications, and real-time event verification. It is an ideal solution for those seeking professional protection combined with maximum user comfort.
Specification
System Type
Hybrid (wired and wireless 433 MHz)
Grade
Grade 2 per EN 50131
On-board Inputs
8 programmable (maximum 32)
On-board Outputs
4 programmable (maximum 16)
Mobile Communication
LTE, HSPA+, EDGE, GPRS, 2 nano-SIM card slots
Users
15 users + 1 administrator
Partitions
2 independent partitions, 3 arming modes for each partition
Power Supply and Performance
18V AC, power supply current capacity 2A, 2 power outputs on board
Bus Support
Communication bus for keypads (max 4) and expansion modules (INT-E, INT-O, INT-ORS)
Voice and Audio Functions
Built-in voice module (16 messages), acoustic alarm verification module
Memory and Schedules
3584 event log, 8 programmable timers
Configuration Software
The PERFECTA Soft program is a dedicated tool for Windows systems, used for full, clear configuration of the alarm control panel. It allows for editing the names of inputs, outputs, partitions, and setting advanced timer and user parameters. The program offers a graphical interface that significantly speeds up the installation and system diagnostics process. Connection to the control panel can be made locally via USB-RS port or remotely via LTE technology, allowing the installer to service the system without needing to visit the site.
Mobile App
The PERFECTA CONTROL app for Android and iOS is an intuitive home security management center. The user can arm and disarm the alarm from anywhere in the world, check the event history, and control the control panel outputs (e.g., open a gate or turn on lighting). A key feature is PUSH notifications, which immediately inform about detector violations, power failures, or sabotage. The app ensures a secure connection thanks to encrypted data transmission and simple configuration via QR codes.
Environmental Parameters
Operating temperature: -10 °C ... 55 °C, permissible humidity 93%
Dimensions and Weight
Board: 160 x 110 mm, Weight: 110 g
Contents
1x PERFECTA-32-WRL-LTE control panel board
1x Antenna
1x Quick user guide
Dimensions, Weight
Product dimensions: 20 x 160 x 110 mm (D x W x H)
Packaging dimensions: 55 x 230 x 130 mm (D x W x H)
Product weight: 110 g
Weight with packaging: 266 g
