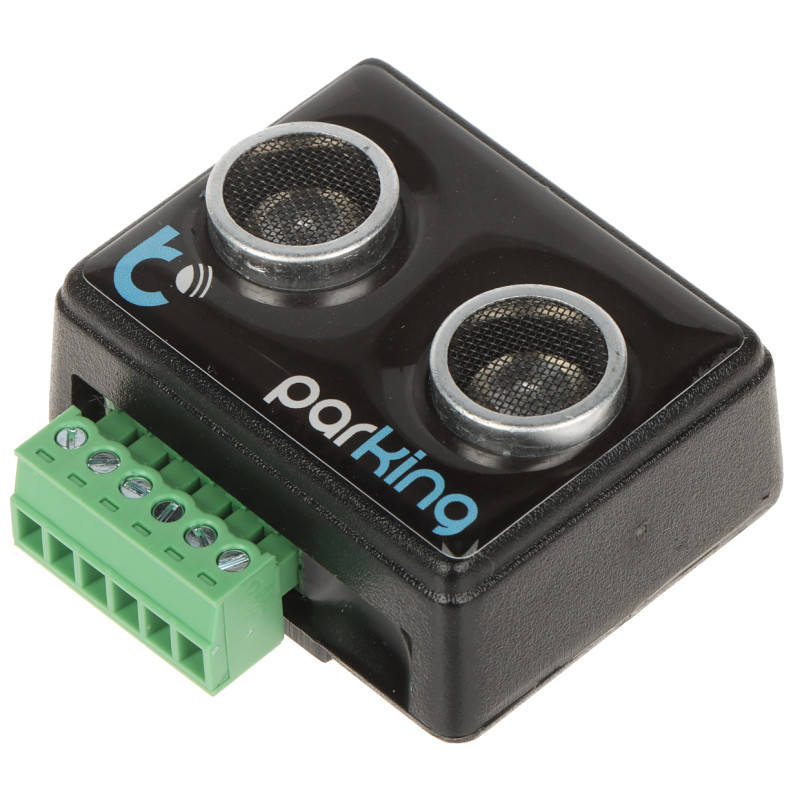

Parking sensor controlling RGB LED lighting 7-24V DC ultrasonic distance sensor BleBox PARKING-SENSOR/BLEBOX
zł211.34
Tax included
The PARKING-SENSOR/BLEBOX parking sensor is an advanced solution designed to facilitate vehicle maneuvering in garages, parking halls, and other tight spaces. Mounted on an obstacle, such as a wall, the device acts as an intelligent assistant that informs the driver of the current distance from the wall using visual light signals generated by connected RGB LED lighting. This makes parking safer, more intuitive, and allows for maximum use of available space without the risk of collision.
One of the most important advantages of the device is the ability to precisely define a so-called virtual wall in a wide range from 2 to 250 cm. The user can independently set the moments of light color changes, which allows the system to be adapted to the specifics of a particular parking space. The device offers four signaling levels: green (safe distance), blue (approaching the obstacle), red (stop), and flashing red (critical proximity alarm). This is a solution that is much clearer and less stressful than standard audible parking sensors.
An additional advantage is a dedicated output for signaling space occupancy, which allows for integration with larger parking management systems or home automation. The product is characterized by extremely small dimensions, which enables its discreet installation. The self-extinguishing plastic housing ensures a high level of safety, and the wide supply voltage range from 7V to 24V DC makes it compatible with most standard power supplies and LED strips available on the market. It is a reliable tool for anyone who values comfort and safety in daily garage use.
Parking sensor controlling RGB LED lighting 7-24V DC ultrasonic distance sensor
Model: BleBox PARKING-SENSOR/BLEBOX
EAN: 6931240069660 SKU: 931069665
- Ultrasonic sensor for precise distance measurement
- Possibility to define a virtual wall in the range of 2 - 250 cm
- Four light signaling thresholds (RGB LED colors)
- Support for LED strips with a voltage from 7V to 24V DC
- High current efficiency up to 8A
- Open collector (OC) outputs up to 250 mA
- Additional output signaling parking space occupancy
- Compact housing made of self-extinguishing plastic
- Easy installation thanks to screw terminals
Description
The PARKING-SENSOR/BLEBOX parking sensor is an advanced solution designed to facilitate vehicle maneuvering in garages, parking halls, and other tight spaces. Mounted on an obstacle, such as a wall, the device acts as an intelligent assistant that informs the driver of the current distance from the wall using visual light signals generated by connected RGB LED lighting. This makes parking safer, more intuitive, and allows for maximum use of available space without the risk of collision.
One of the most important advantages of the device is the ability to precisely define a so-called virtual wall in a wide range from 2 to 250 cm. The user can independently set the moments of light color changes, which allows the system to be adapted to the specifics of a particular parking space. The device offers four signaling levels: green (safe distance), blue (approaching the obstacle), red (stop), and flashing red (critical proximity alarm). This is a solution that is much clearer and less stressful than standard audible parking sensors.
An additional advantage is a dedicated output for signaling space occupancy, which allows for integration with larger parking management systems or home automation. The product is characterized by extremely small dimensions, which enables its discreet installation. The self-extinguishing plastic housing ensures a high level of safety, and the wide supply voltage range from 7V to 24V DC makes it compatible with most standard power supplies and LED strips available on the market. It is a reliable tool for anyone who values comfort and safety in daily garage use.
Specification
Application
Visualization of distance from an obstacle using RGB LED lighting (LED strips)
Rated voltage
7 ... 24 V DC (Direct current)
Maximum load
56 W (at 7V) ... 192 W (at 24V)
Total maximum current
8 A
Control outputs
4 open collector (OC) outputs, 250 mA current per output
Sensor type
Ultrasonic distance measurement
Virtual wall range
Adjustable in the range from 2 cm to 250 cm
Distance thresholds (standard)
Green: 140 cm (safe), Blue: 48 cm, Red: 17 cm, Flashing red: 4 cm
Electrical connectors
Screw terminals (mounting blocks)
Number of inputs
0
Housing and material
Self-extinguishing plastic, black color
Ingress protection class
IP20 (protection against touch, for indoor use)
Operating conditions
Ambient temperature: -20 °C to 50 °C
Additional features
Output for space occupancy signaling, small design dimensions
Software
BleBox system software enables precise configuration of the device, including defining threshold distances for individual lighting colors. The programming process is carried out in accordance with the IPR manual, which allows for perfect adjustment of the sensor to the garage geometry. The system ensures stable operation and fast reaction to changes in vehicle position, eliminating delays in signaling. The ability to reset settings allows for easy reconfiguration of the device after changing the mounting location or lighting parameters.
Contents
1x PARKING-SENSOR/BLEBOX parking sensor
1x Complete technical documentation
Dimensions, Weight
Product dimensions: 25 x 51 x 58 mm (Depth x Width x Height)
Packaging dimensions: 30 x 95 x 75 mm (Depth x Width x Height)
Product weight: 60 g
Weight with packaging: 68 g
