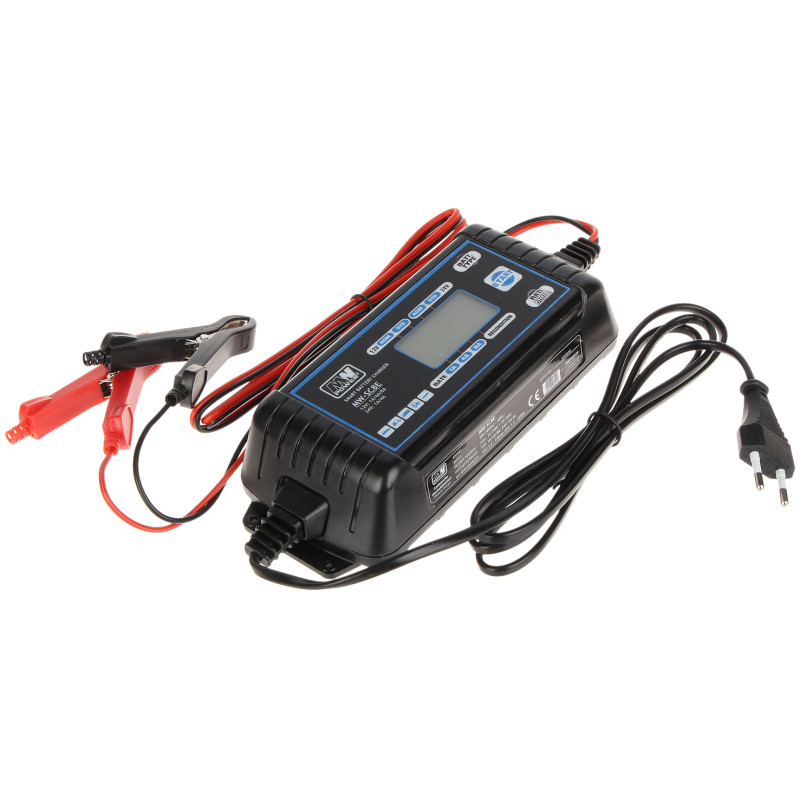

Intelligent 12V 24V Battery Charger AGM Gel Microprocessor Rectifier 8A LCD IP65 MW POWER MW-SC8E
zł205.02
Tax included
The MW-SC8E intelligent battery charger is an advanced microprocessor-controlled device that ensures a fully automatic and safe charging process. It is designed for a wide range of lead-acid, gel, and AGM batteries with 12V and 24V voltage. Thanks to its versatility, it is perfect for servicing vehicles such as cars, motorcycles, ATVs, boats, and even garden mowers.
One of the most important advantages of the device is the 10-stage, automated duty cycle, which not only charges but also analyzes and maintains the cells. The regeneration function allows for restoring the efficiency of exhausted batteries, which significantly extends their service life. The charger automatically switches to maintenance mode upon reaching full charge, which prevents the risk of overcharging and allows the device to be left connected safely for an extended period.
User and equipment safety is guaranteed by a series of built-in protections: short-circuit, overvoltage, thermal, and reverse polarity protection. The high IP65 ingress protection rating makes the charger resistant to dust and splashes, enabling its operation in demanding workshop conditions and outdoors. A clear LCD display informs about current charging parameters, providing full control over the process.
Intelligent 12V 24V Battery Charger AGM Gel Microprocessor Rectifier 8A LCD IP65
Model: MW POWER MW-SC8E
EAN: 6931240017425 SKU: 931017426
- Microprocessor-controlled charging process system
- Fully automatic, 10-stage duty cycle
- Support for 12V and 24V batteries (lead-acid, gel, AGM)
- Detection and regeneration function for exhausted batteries
- Full charge maintenance mode
- Complete protection package: short circuit, overvoltage, overcharge, overheating
- Reverse polarity protection
- Clear LCD display
- High IP65 ingress protection rating
- Insulated, safe alligator clips
- Suitable for indoor and outdoor use
Description
The MW-SC8E intelligent battery charger is an advanced microprocessor-controlled device that ensures a fully automatic and safe charging process. It is designed for a wide range of lead-acid, gel, and AGM batteries with 12V and 24V voltage. Thanks to its versatility, it is perfect for servicing vehicles such as cars, motorcycles, ATVs, boats, and even garden mowers.
One of the most important advantages of the device is the 10-stage, automated duty cycle, which not only charges but also analyzes and maintains the cells. The regeneration function allows for restoring the efficiency of exhausted batteries, which significantly extends their service life. The charger automatically switches to maintenance mode upon reaching full charge, which prevents the risk of overcharging and allows the device to be left connected safely for an extended period.
User and equipment safety is guaranteed by a series of built-in protections: short-circuit, overvoltage, thermal, and reverse polarity protection. The high IP65 ingress protection rating makes the charger resistant to dust and splashes, enabling its operation in demanding workshop conditions and outdoors. A clear LCD display informs about current charging parameters, providing full control over the process.
Specification
Battery type
12 V, 24 V : lead-acid, Gel, AGM (Absorbent Glass Mat)
Supported battery capacity
For 12 V: from 1.2 Ah to 240 Ah; For 24 V: from 1.2 Ah to 120 Ah
Battery charging current
For 12 V: 1 A / 4 A / 8 A; For 24 V: 1 A / 4 A
Charging voltage
12V: 14.4 V / 14.7 V DC; 24V: 28.8 V / 29.4 V DC
Charging process
10-stage, automatic: Initialization, Low current charging, Constant current charging (CC), Constant voltage charging (CV), Rest charging, Analysis, Maintenance, Desulfation, Regeneration
Indicators
LCD display with backlight (no additional LEDs)
Protections
Short-circuit, Overvoltage, Overcharge, Thermal, Reverse polarity
Mains power supply
220V - 240V AC / 50 Hz
Power consumption
Maximum 140 W
Ingress protection and insulation class
Ingress protection rating: IP65; Insulation class: Class II
Operating temperature
-5 °C ... 40 °C
Construction
Hanging-capable housing, insulated alligator clips
Control software
Built-in microprocessor algorithm controlling charging logic. The software dynamically analyzes the internal resistance of the battery and its voltage level, automatically selecting one of the ten stages of operation. The system can detect permanently damaged or sulfated batteries, launching a special pulse program for desulfation. The software ensures optimization of the IUoU charging curve, protecting against electrolyte gassing and thermal damage to cells, which is crucial for the safety and durability of AGM and gel batteries.
Warranty
2 years
Contents
1x Intelligent charger MW-SC8E
1x Set of cables with alligator clips
1x User manual
Dimensions, Weight
Product dimensions: 218 x 90 x 50 mm (D x W x H)
Packaging dimensions: 280 x 155 x 60 mm (D x W x H)
Product weight: 650 g
Weight with packaging: 814 g
