- New

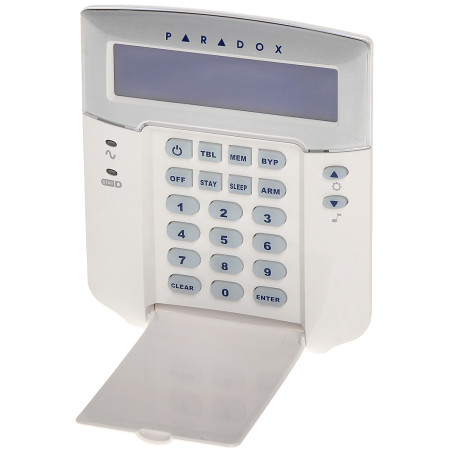

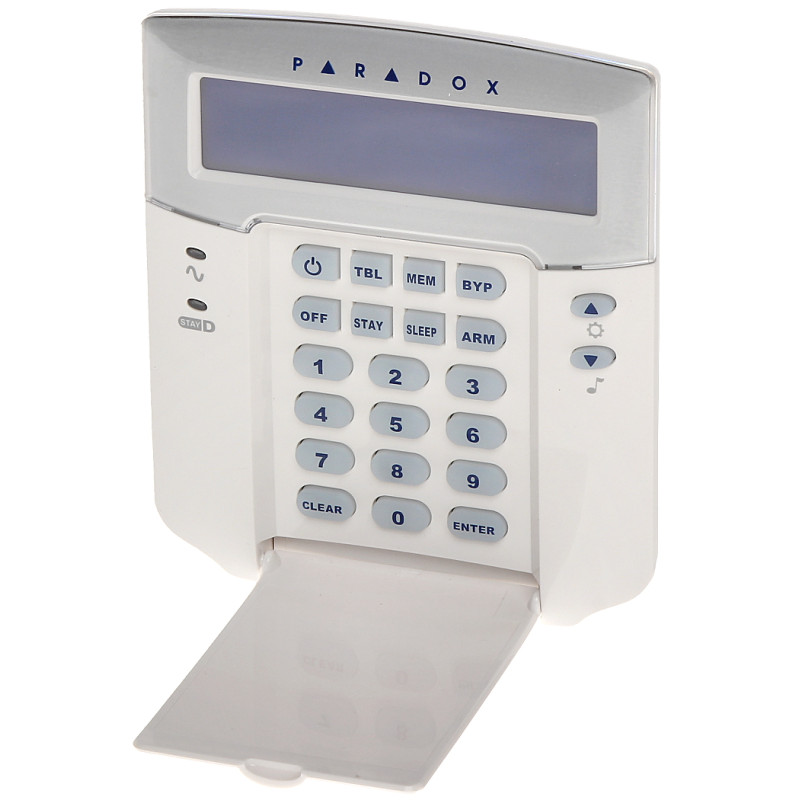

LCD keypad for Spectra Magellan alarm control panels alphanumeric blue backlit PARADOX K32LCD+-W2W
zł273.06
Tax included
The K32LCD+-W2W keypad is a professional alphanumeric keypad designed for users who value comfort, clarity, and full control over their alarm system. The device is fully compatible with renowned PARADOX alarm control panels from the Spectra SP and Magellan M series, making it a universal solution for modern security installations.
A key advantage of this model is the built-in 32-character LCD display, which presents text messages in a clear and understandable way. This makes daily system operation and advanced programming simple and intuitive, eliminating the need to remember complex LED codes. The blue backlight not only gives the device a modern look but also ensures excellent visibility in all lighting conditions, including at night.
The keypad offers support for the innovative StayD feature, which redefines home security by keeping the system armed 24/7 while allowing easy disarming of specific zones during passage. Additionally, the keypad is equipped with quick access buttons that allow for instant triggering of special alarms such as PANIC, FIRE, or MEDICAL ASSISTANCE. The user also has the ability to independently set chime zones and adjust backlight intensity and contrast, allowing for perfect adaptation of the device to interior aesthetics and personal preferences.
Solid construction, Canadian precision, and compliance with rigorous EN safety standards make the K32LCD+-W2W a reliable element of any alarm system, combining high functionality with an elegant white-silver design.
LCD keypad for Spectra Magellan alarm control panels alphanumeric blue backlit
Model: PARADOX K32LCD+-W2W
EAN: 6931240050460 SKU: 931050463
- Compatibility with PARADOX Spectra SP (V4.90+) and Magellan M (V2.31+) control panels
- Clear 2x16 character LCD display (alphanumeric)
- Modern blue backlight for keys and screen
- Full support for the unique StayD safety-enhancing feature
- Audible system event signaling (buzzer)
- Quick access buttons for key system functions
- Three alarms triggered directly from the keypad: Panic, Fire, Medical
- Support for one or multiple partitions simultaneously
- Built-in input for an additional alarm zone
- Adjustable contrast, brightness, and message scroll speed
- Independent chime zone settings
- Connection via standard 4-wire communication bus
Description
The K32LCD+-W2W keypad is a professional alphanumeric keypad designed for users who value comfort, clarity, and full control over their alarm system. The device is fully compatible with renowned PARADOX alarm control panels from the Spectra SP and Magellan M series, making it a universal solution for modern security installations.
A key advantage of this model is the built-in 32-character LCD display, which presents text messages in a clear and understandable way. This makes daily system operation and advanced programming simple and intuitive, eliminating the need to remember complex LED codes. The blue backlight not only gives the device a modern look but also ensures excellent visibility in all lighting conditions, including at night.
The keypad offers support for the innovative StayD feature, which redefines home security by keeping the system armed 24/7 while allowing easy disarming of specific zones during passage. Additionally, the keypad is equipped with quick access buttons that allow for instant triggering of special alarms such as PANIC, FIRE, or MEDICAL ASSISTANCE. The user also has the ability to independently set chime zones and adjust backlight intensity and contrast, allowing for perfect adaptation of the device to interior aesthetics and personal preferences.
Solid construction, Canadian precision, and compliance with rigorous EN safety standards make the K32LCD+-W2W a reliable element of any alarm system, combining high functionality with an elegant white-silver design.
Specification
Cooperation and system
Device dedicated to PARADOX alarm systems. Compatible with SPECTRA SP (version V4.90 and higher) and MAGELLAN M (version V2.31 and higher) series. Supports communication via a 4-wire system bus.
Display and interface
Alphanumeric LCD display with 2x16 character capacity. Blue backlight color for the matrix and keys. Full adjustment of brightness, display contrast, and information text scroll speed.
Security features
Full support for StayD mode (system remains armed, disabling only the selected zone during passage). Ability to trigger 3 types of manual alarms: Panic, Fire, Medical. Support for multiple partitions (zones).
Input parameters
The keypad has 1 built-in alarm zone input, allowing for the connection of a local sensor directly to the keypad without the need to run wires to the control panel.
Signaling and notifications
Built-in sounder for acoustic signaling of zone violations (chime), entry/exit delays, and system faults. Independent chime zone settings for selected inputs.
Power supply and energy consumption
Supply voltage: 9V ... 16V DC (typically 12V from the control panel bus). Current consumption: maximum 150 mA with full backlight.
Environmental conditions
Operating temperature: -10 °C to 55 °C. Permissible ambient relative humidity: 5% to 93% (non-condensing).
Compliance and certificates
Product meets standards: EN 50130-4 (electromagnetic immunity), EN 61000-6-3 (emissions), EN 60950-1 (IT equipment safety), EN 50581 (RoHS).
Construction and color
Housing made of high-quality plastic. Color scheme: White body with silver finishes. Aesthetic design suitable for modern interiors.
Country of origin and warranty
Made in Canada. Manufacturer's warranty: 24 months (2 years).
System software
The keypad works with Paradox control panel firmware. It enables full system configuration from the installer menu. Message language supported: Polish. Thanks to cooperation with Spectra/Magellan control panels, the system can be managed remotely via the INSITE GOLD mobile application and PC BabyWare software (IP/GPRS communication modules required), which allow for event monitoring, arming/disarming the system, and controlling PGM outputs from anywhere in the world.
Contents
1x K32LCD+-W2W Keypad
1x User manual
Dimensions, Weight
Product dimensions: 27 x 150 x 126 mm (D x W x H)
Package dimensions: 30 x 130 x 150 mm (D x W x H)
Product weight: 220 g
Weight with packaging: 250 g
