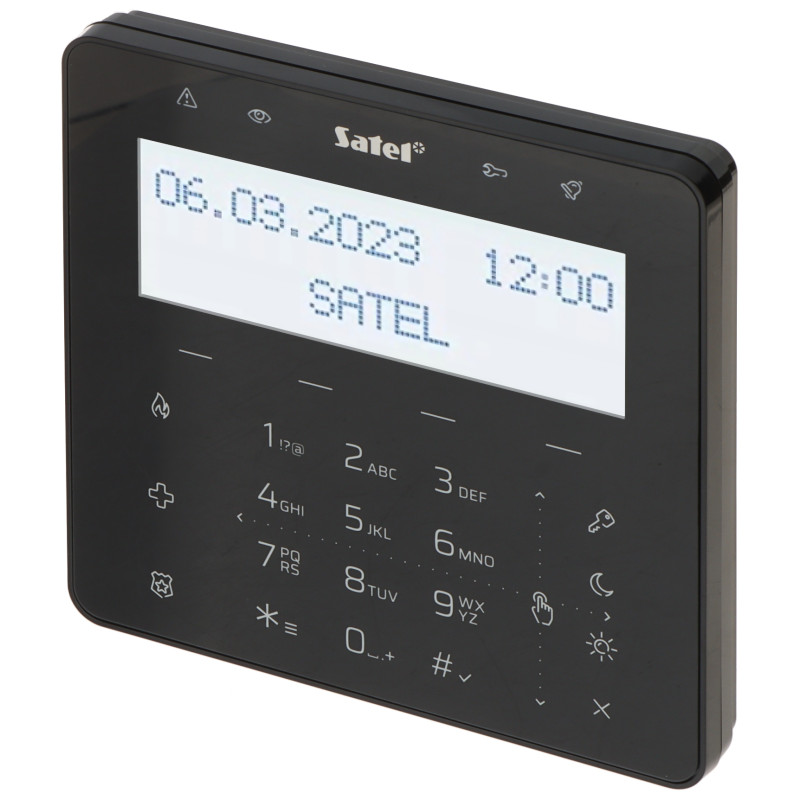

Sensory LCD keypad for alarm control panel black backlit touch screen RFID alarm systems SATEL INT-KSG2R-B
zł859.77
Tax included
The sensory keypad is a modern and extremely elegant control device, designed for the most demanding users of security systems. The device is characterized by an exceptionally attractive appearance that combines a minimalist form with advanced technology, making it a perfect fit for the decor of modern offices and smart homes. It is fully compatible with renowned alarm control panels from the INTEGRA and INTEGRA Plus series, as well as the latest PERFECTA 64 M models, making it a universal component of professional alarm installations.
One of the key advantages of the keypad is the use of a large, clear LCD display with energy-saving backlighting. This screen provides precise information about the status of the entire system in the form of clear text messages, eliminating the need to memorize complicated codes. The device interface supports innovative swipe gesture operation, which allows for instant navigation through the extensive menu, almost identical to modern smartphones. The sensory buttons are touch-sensitive and backlit, which guarantees trouble-free operation even in total darkness, while giving the keypad a prestigious look.
An undeniable advantage of the product is the support for advanced MACRO functions. Thanks to them, the user can trigger a complex sequence of events with a single short touch, covering both the alarm system and home automation elements. For example, selecting the "Leave home" function can automatically arm the alarm, close all external blinds, and turn off the lighting. Such a solution not only saves time but drastically increases the comfort of everyday life. Furthermore, the built-in proximity reader operating in the 13.56 MHz S50 standard allows for the future use of cards and key fobs for convenient authorization in the system.
The device also offers full physical security thanks to advanced tamper protection. The system will immediately detect and signal any attempt to open the housing or detach the keypad from the wall. The ability to personalize the standby screen and create up to 4 additional quick-access menus by the installer allows for perfect adjustment of the device's functionality to the individual needs of each household member. This product is a synonym for reliability and Polish quality in the field of modern security systems.
Sensory LCD keypad for alarm control panel black backlit touch screen RFID alarm systems
Model: SATEL INT-KSG2R-B
EAN: 6931240068397 SKU: 931068393
- Attractive and modern design suitable for any interior
- Large and clear LCD display with white backlight
- Sensory buttons resistant to mechanical wear
- Support for intuitive swipe gestures
- MACRO functions for controlling automation and alarms with a single touch
- Built-in 13.56 MHz S50 proximity reader
- Full tamper protection against opening and detachment
- Two programmable inputs (INTEGRA / INTEGRA Plus only)
- Customizable menu and standby screen
- Product of the Polish manufacturer SATEL
Description
The sensory keypad is a modern and extremely elegant control device, designed for the most demanding users of security systems. The device is characterized by an exceptionally attractive appearance that combines a minimalist form with advanced technology, making it a perfect fit for the decor of modern offices and smart homes. It is fully compatible with renowned alarm control panels from the INTEGRA and INTEGRA Plus series, as well as the latest PERFECTA 64 M models, making it a universal component of professional alarm installations.
One of the key advantages of the keypad is the use of a large, clear LCD display with energy-saving backlighting. This screen provides precise information about the status of the entire system in the form of clear text messages, eliminating the need to memorize complicated codes. The device interface supports innovative swipe gesture operation, which allows for instant navigation through the extensive menu, almost identical to modern smartphones. The sensory buttons are touch-sensitive and backlit, which guarantees trouble-free operation even in total darkness, while giving the keypad a prestigious look.
An undeniable advantage of the product is the support for advanced MACRO functions. Thanks to them, the user can trigger a complex sequence of events with a single short touch, covering both the alarm system and home automation elements. For example, selecting the "Leave home" function can automatically arm the alarm, close all external blinds, and turn off the lighting. Such a solution not only saves time but drastically increases the comfort of everyday life. Furthermore, the built-in proximity reader operating in the 13.56 MHz S50 standard allows for the future use of cards and key fobs for convenient authorization in the system.
The device also offers full physical security thanks to advanced tamper protection. The system will immediately detect and signal any attempt to open the housing or detach the keypad from the wall. The ability to personalize the standby screen and create up to 4 additional quick-access menus by the installer allows for perfect adjustment of the device's functionality to the individual needs of each household member. This product is a synonym for reliability and Polish quality in the field of modern security systems.
Specification
Compatibility
INTEGRA, INTEGRA Plus, and PERFECTA 64 M series alarm control panels
Display
Large, clear LCD display with backlight showing detailed system status information in the form of text messages
Buttons
Touch (sensory) keypad buttons with backlight, facilitating operation in total darkness
Hardware inputs
2 inputs (supported only by INTEGRA, INTEGRA Plus) with support for vibration detectors, roller shutter detectors, and EOL, 2EOL, 3EOL configuration
MACRO functions
Advanced macro commands allowing for the execution of action sequences (e.g., home automation control) upon touching a single button
Proximity reader
Built-in 13.56 MHz S50 proximity card and key fob reader (Mifare standard) for future applications in INTEGRA systems
User menu
4 additional menus (up to 16 items each) and quick-access functions defined by the installer for user convenience
Sound signaling
Built-in piezoelectric transducer for signaling selected system events (entry/exit times, violations)
Special alarms
Ability to quickly trigger PANIC, FIRE, and AUXILIARY alarms directly from the keypad
Gesture interface
Support for swipe gestures allowing for comfortable navigation through menu items and system functions
Security
Tamper protection detecting opening of the device housing and its detachment from the surface
Firmware update
Ability to update firmware via RS-485 bus using a computer
Software and configuration
The keypad software is characterized by a high degree of flexibility, allowing for deep personalization of the user interface. A key feature is the MACRO system, which transforms the keypad into a smart home control center. The user can trigger complex scenarios with a single touch, such as closing all blinds, turning off lights, and arming the alarm. Additionally, the software allows for the configuration of dedicated quick-access menus (4 menus with 16 items each), which minimizes the time needed to reach specific system functions. The graphical interface supports modern gestures, making navigation through the menu structure similar to operating a smartphone. The standby screen is fully configurable, allowing for the display of any logical states of the control panel in a clear form. The system also supports secure firmware updates via the communication bus, ensuring longevity and compatibility of the device with new control panel functions.
Electrical parameters
12V DC power supply, current consumption approx. 155 mA, operation in a wide temperature range
Housing and color
Black color, dimensions 132 x 129 x 16 mm, elegant surface finish
Contents
1x Sensory keypad
1x Mounting accessories
1x User manual
Dimensions, Weight
Product dimensions: 16 x 132 x 129 mm (D x W x H)
Packaging dimensions: 37 x 185 x 162 mm (D x W x H)
Product weight: 220 g
Weight with packaging: 344 g
