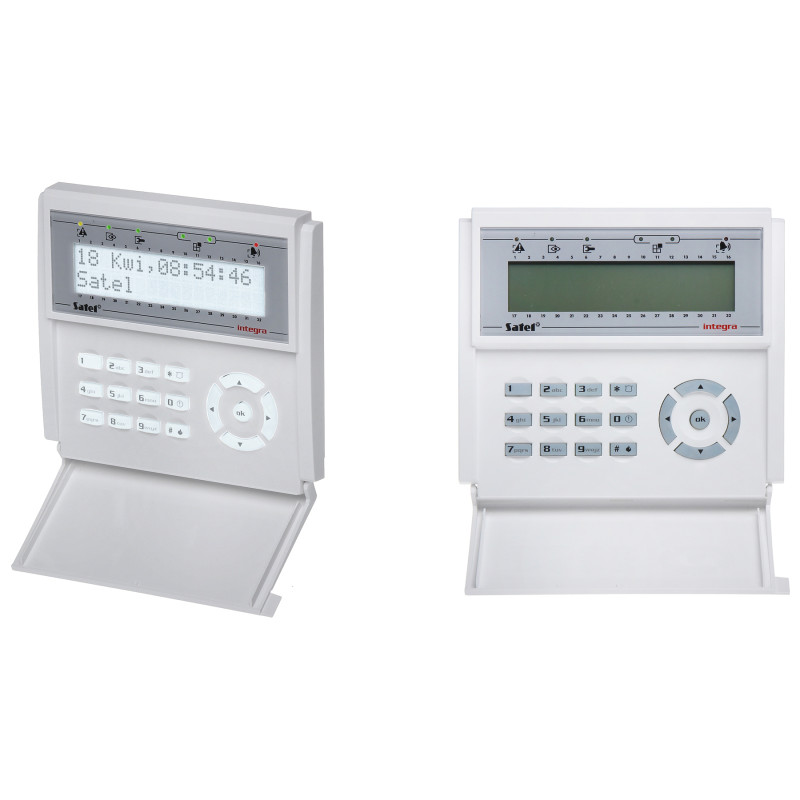

LCD keypad with white backlight for intrusion and robbery alarm systems zone control SATEL INT-KLCD-W
zł589.17
Tax included
A professional keypad designed for daily operation and advanced programming of alarm systems. The device has been designed for maximum user convenience, combining an aesthetic appearance with high functionality. Equipped with a large, readable LCD display, it allows for real-time monitoring of the system status through text messages, which eliminates the need to memorize complex LED codes.
The advantages of the device include an intuitive menu that guides the user through all available functions, from arming to viewing the event log. The white backlight of the keys and screen not only gives the device a modern look but, above all, ensures full visibility in total darkness. An additional advantage is the dedicated quick-access alarm buttons – Robbery, Fire, and Help, which allow for immediate calling of emergency services in critical situations. The keypad also has two programmable inputs, which allows for system expansion with additional detectors without the need to run wires directly to the control panel. The robust housing is protected by a tamper microswitch that immediately detects attempts to open or detach it from the wall, ensuring the highest level of security.
LCD keypad with white backlight for intrusion and robbery alarm systems zone control
Model: SATEL INT-KLCD-W
EAN: 6931240057858 SKU: 931057855
- Compatibility with INTEGRA and CA-64 series control panels
- Large and readable alphanumeric LCD display
- Elegant white backlight for buttons and screen
- Two additional programmable wired inputs on the keypad
- Quick trigger for special alarms: ROBBERY, FIRE, HELP
- LED indicators for zone and system status
- Built-in RS-232 port for communication with GUARDX software
- Audible signaling of selected system events
- Full tamper protection against opening and detachment
- Intuitive operation via text messages
Description
A professional keypad designed for daily operation and advanced programming of alarm systems. The device has been designed for maximum user convenience, combining an aesthetic appearance with high functionality. Equipped with a large, readable LCD display, it allows for real-time monitoring of the system status through text messages, which eliminates the need to memorize complex LED codes.
The advantages of the device include an intuitive menu that guides the user through all available functions, from arming to viewing the event log. The white backlight of the keys and screen not only gives the device a modern look but, above all, ensures full visibility in total darkness. An additional advantage is the dedicated quick-access alarm buttons – Robbery, Fire, and Help, which allow for immediate calling of emergency services in critical situations. The keypad also has two programmable inputs, which allows for system expansion with additional detectors without the need to run wires directly to the control panel. The robust housing is protected by a tamper microswitch that immediately detects attempts to open or detach it from the wall, ensuring the highest level of security.
Specification
System compatibility
Full compatibility with SATEL alarm control panels from the INTEGRA series and older CA-64 models.
User interface
Alphanumeric LCD display presenting data in text format; full numeric keypad with function buttons.
Alarm functions
Dedicated key sequences for immediate triggering of alarms: Fire, Medical (Help), and Robbery.
System inputs
Device equipped with 2 additional wired NO/NC inputs supporting EOL and 2EOL configurations with programmable functions.
Optical signaling
LEDs indicating system status, arming, faults, and entry/exit delay time.
Acoustic signaling
Built-in piezoelectric transducer for operation confirmation and signaling of alarms and entry time.
Communication ports
RS-232 (TTL) standard connector enabling direct connection to a PC.
Control software
Full support for GUARDX application. This program is an advanced tool for visualization and management of the alarm system from a computer. It allows for creating interactive object plans, displaying detector status in real-time, user management, and remote system control. Thanks to the integration with the keypad via the RS-232 port, the system administrator gains comprehensive insight into the security of the protected object, and operation becomes much more transparent and automated. The application also allows for reading the event log and generating reports.
Tamper protection
Tamper switch reacting to opening the housing and attempts to tear the device from the mounting surface.
Electrical parameters
Supply voltage: 12V DC (tolerance +/- 15%); Maximum current consumption: 101 mA; Current consumption in standby mode: approximately 40 mA.
Operating environment
Operating temperature: from -10 °C to +55 °C; Environmental class according to EN50130-5: II.
Backlight
LED technology; white color; high contrast ensuring readability from different angles.
Housing construction
High-quality ABS plastic; surface mounting; classic white color.
Compliance and standards
Product compliant with European CE requirements; meets standards for intrusion alarm systems.
Warranty
24 months (2 years) from the date of purchase provided by the manufacturer.
Contents
1x INT-KLCD-W Keypad
1x Installation and user manual
1x Set of mounting plugs
Dimensions, Weight
Product dimensions: 26 x 140 x 126 mm (D x W x H)
Package dimensions: 30 x 150 x 130 mm (D x W x H)
Product weight: 230 g
Weight with packaging: 260 g
