- New

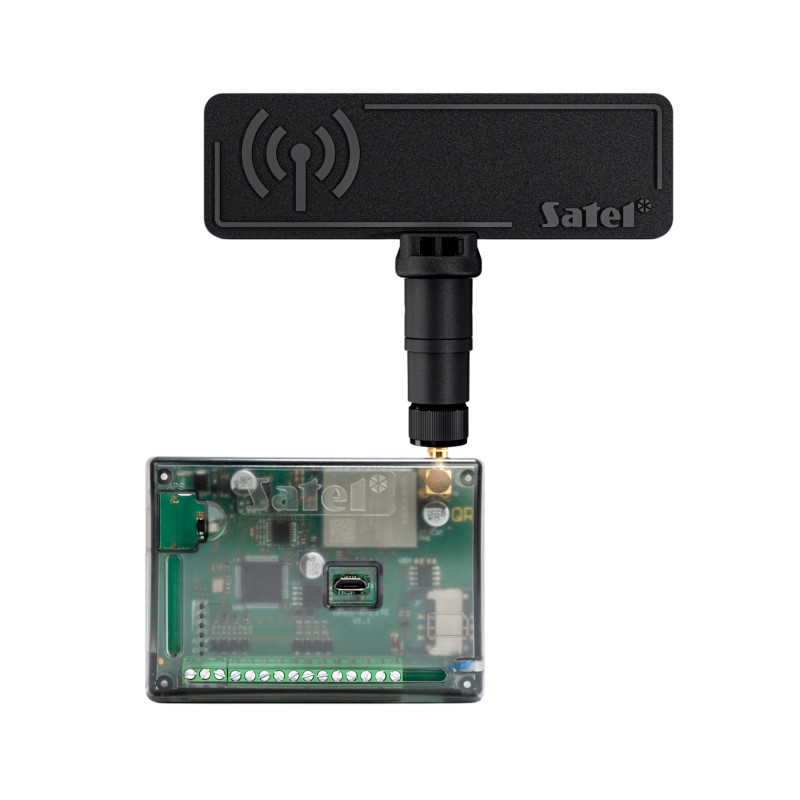

Universal GPRS monitoring and SMS notification module 4 inputs 4 OC outputs phone control SATEL GPRS-A-LITE
zł276.48
Tax included
The GPRS-A-LITE module is a versatile monitoring device that revolutionizes the way alarm systems and automation processes are supervised. Its primary task is to provide instant information about changes in input status by sending event codes to monitoring stations via GPRS transmission or SMS messages. Thanks to its universal design, the device allows for effective monitoring of a wide range of equipment, including older alarm control panels that were not originally equipped with a telephone communicator.
The advantages of the device are invaluable in modern security installations. Primarily, the GPRS-A-LITE offers four programmable inputs that can work with any sensors, and four OC-type outputs, enabling remote system control, such as entrance gates, lighting, or network device restarts. The module is characterized by exceptional stability and high sensitivity of the GSM module, which guarantees reliable connectivity even in difficult signal conditions. An additional advantage is the ability to work in autonomous mode, making it an ideal solution for monitoring pumping stations, warehouses, or summer houses. By choosing a SATEL brand product, you are guaranteed the highest quality of workmanship and full technical support from a Polish manufacturer. The notification system supports up to 8 phone numbers, ensuring that alarm information always reaches the appropriate persons on time. The aesthetic casing and compact dimensions allow for discreet mounting inside existing installation boxes.
Universal GPRS monitoring and SMS notification module 4 inputs 4 OC outputs phone control
Model: SATEL GPRS-A-LITE
EAN: 6931240087671 SKU: 931087678
- Universal GPRS and SMS monitoring module
- Support for 4 programmable inputs (NO, NC)
- 4 controllable OC (Open Collector) outputs
- Standalone operation or integration with an alarm control panel
- Notification to 8 phone numbers (SMS/CLIP)
- External antenna with standard SMA connector
- Configuration via dedicated GX Soft software
- Product of the renowned Polish brand SATEL
Description
The GPRS-A-LITE module is a versatile monitoring device that revolutionizes the way alarm systems and automation processes are supervised. Its primary task is to provide instant information about changes in input status by sending event codes to monitoring stations via GPRS transmission or SMS messages. Thanks to its universal design, the device allows for effective monitoring of a wide range of equipment, including older alarm control panels that were not originally equipped with a telephone communicator.
The advantages of the device are invaluable in modern security installations. Primarily, the GPRS-A-LITE offers four programmable inputs that can work with any sensors, and four OC-type outputs, enabling remote system control, such as entrance gates, lighting, or network device restarts. The module is characterized by exceptional stability and high sensitivity of the GSM module, which guarantees reliable connectivity even in difficult signal conditions. An additional advantage is the ability to work in autonomous mode, making it an ideal solution for monitoring pumping stations, warehouses, or summer houses. By choosing a SATEL brand product, you are guaranteed the highest quality of workmanship and full technical support from a Polish manufacturer. The notification system supports up to 8 phone numbers, ensuring that alarm information always reaches the appropriate persons on time. The aesthetic casing and compact dimensions allow for discreet mounting inside existing installation boxes.
Specification
Transmission type
GPRS, SMS, CLIP - multi-channel reporting path ensuring continuity of data transmission.
Alarm inputs
4 physical inputs with the possibility of configuration as NO (normally open) or NC (normally closed).
Control outputs
4 OC (Open Collector) type outputs with maximum load dedicated to controlling relays or automation elements.
Notification numbers
Support for up to 8 independent phone numbers for transmitting system event information.
Notification methods
CLIP voice notification (calling) and text SMS messages with event description.
GPRS monitoring
Compatibility with transmission formats to monitoring stations (STAM-2) using packet data transmission.
Antenna connector
SMA type connector allowing for the connection of an external, high-gain GSM antenna to improve signal quality.
Power supply voltage
12V DC power supply (tolerance +/- 15%), ideal for buffer systems.
Power consumption
Maximum current consumption at 220 mA during active GSM transmission.
Operating temperature
Wide temperature range from -10 °C to +55 °C, allowing for mounting in unheated rooms.
Operating modes
Autonomous (stand-alone controller) or integrated (as a communication module for an external control panel).
Configuration interface
RS-232 (TTL) port for local connection with a PC and firmware updates.
Status signaling
Built-in LED diodes indicating GSM signal status, power supply, and system errors.
GX Soft software
GX Soft is an advanced application designed for complex configuration and diagnostics of Satel communication modules. The program offers an intuitive, graphical interface that significantly simplifies the process of defining input parameters, assigning SMS content to events, and programming control outputs. The user has the ability to view the module status in real-time, check the GSM signal level, and access the event log. The software allows for local connection via USB-RS cable or remote connection via GPRS, which enables system servicing without the need for a site visit.
Contents
1x GPRS-A-LITE Module
1x External antenna
1x Quick installation guide
1x Warranty card
Dimensions, Weight
Product dimensions: 24 x 83 x 65 mm (Depth x Width x Height)
Packaging dimensions: 50 x 200 x 120 mm (Depth x Width x Height)
Product weight: 69 g
Weight with packaging: 102 g
