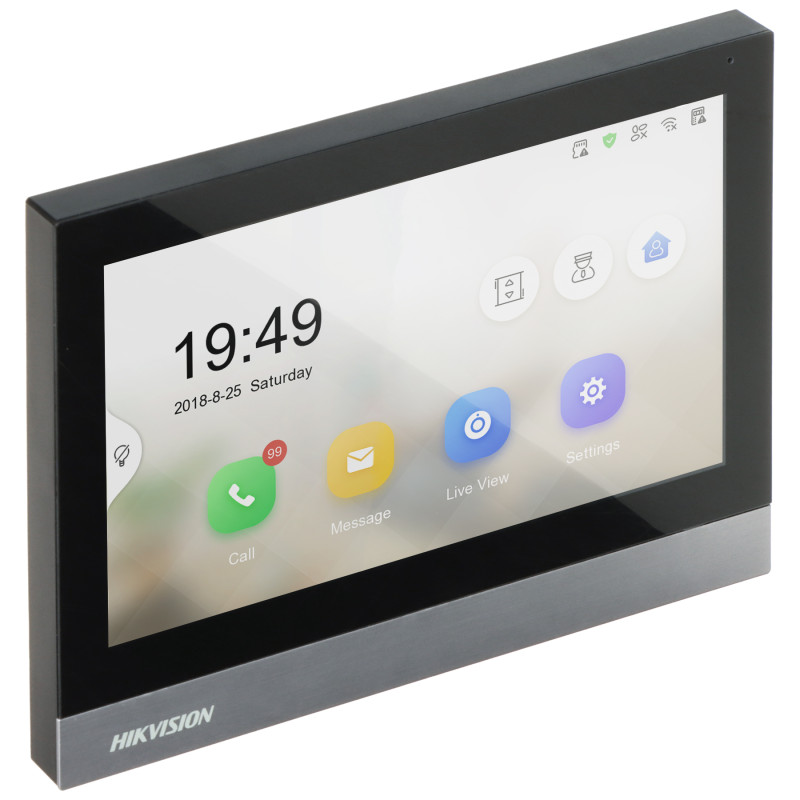

7 inch IP Wi-Fi Video Intercom Indoor Station Touchscreen Base Station 2-Way Audio

Model: Hikvision DS-KH8380-WTE1

EAN: 6931240056110 SKU: 931056119

• Colorful, 7-inch capacitive TFT touchscreen
• Screen resolution 1024 x 600 pixels
• Built-in Wi-Fi module IEEE 802.11 b/g/n
• Support for 8 alarm inputs (alarm panel function)
• Power supply standard 12V DC or via PoE (802.3af)
• Full integration with Hikvision IP cameras
• Remote operation capability via Hik-Connect mobile app
• RS-485 and RS-232 communication interfaces
• 4 relay outputs NO/NC for controlling external devices
• Built-in 128 MB memory and microSD card slot up to 128 GB
• Two-way voice communication (built-in microphone and speaker)
• Elegant aluminum housing
• Intercom communication capability between multiple panels
• Smooth adjustment of brightness, volume, and ringtone parameters
• Voice message recording when resident is away

Description

The DS-KH8380-WTE1 panel is a modern indoor station designed for maximum user comfort in advanced Hikvision IP video intercom systems. The device features a colorful, 7-inch capacitive touchscreen with a high resolution of 1024x600 pixels, providing a crystal-clear image and extremely intuitive menu navigation. Thanks to the built-in Wi-Fi module (802.11 b/g/n), the installation is extremely flexible and can be completed without the need for additional network cabling.

Specification

One of the key advantages of the device is its multi-functionality – it can act as a simplified alarm control panel thanks to support for up to 8 alarm inputs, to which devices such as motion detectors or magnetic door sensors (reed switches) can be connected. The panel allows for live viewing of images from Hikvision IP cameras directly on its screen, which significantly increases the level of resident security. The system offers full two-way audio communication thanks to the built-in microphone and speakers, as well as an automatic photo capture and storage function for callers in case of no response.

The device's construction, based on high-quality silver and black aluminum, makes the panel look very elegant and modern, fitting into prestigious interiors. Support for power over PoE (Power over Ethernet) allows for data and power transmission via a single twisted-pair cable, which drastically reduces installation time and simplifies infrastructure. It is a reliable solution for demanding users of Smart Home systems and professional access control.

Screen and Display

Type: 7 inches, Capacitive touchscreen; Resolution: 1024 x 600 pixels; Matrix type: High-contrast TFT LCD; Touch support: Multi-point.

Communication and Network

Network interface: RJ-45 10/100 Mbps Ethernet; Wi-Fi module: Yes, IEEE 802.11 b/g/n standard; Supported protocols: TCP/IP, RTSP, SIP; Serial interfaces: 1x RS-485 (two-wire bus), 1x RS-232.

Audio and Sound

Audio input: Built-in omnidirectional microphone; Audio output: Built-in speakers; Compression: G.711u; Functions: Noise and echo reduction, two-way conversation (Talk-back).

Alarm Interfaces

Alarm inputs: 8 (zone configuration possible); Relay outputs: 4x NO/NC (for controlling e.g., gate, lighting); Power output: 12V DC / 500 mA.

Memory and Recording

Internal memory: 128 MB (built-in for system and logs); Memory card slot: Micro SD / Micro SDHC / Micro SDXC card support up to 128 GB (photo and audio-video message recording).

Software and Management

Operating system: Embedded Linux; Client software: iVMS-4200 (PC); Mobile app: Hik-Connect (Android/iOS). The system allows full remote control of the video intercom system. The iVMS-4200 software is an advanced tool for technical configuration, permission management, and device status monitoring. The Hik-Connect mobile app allows the user to receive real-time doorbell notifications, conduct video calls with guests, remotely open locks, and view integrated CCTV monitoring cameras from anywhere with Internet access.

Video Functions

Live view: Ability to display images from Hikvision IP cameras and door stations; Image capture: Automatic or manual taking of photos during a call; Video messages: Ability for a guest to leave a short message.

Electrical Parameters

Power supply: PoE (802.3af standard) or 12V DC; Power consumption: Maximum 12 W; Stability: Voltage drop protection.

Construction and Design

Housing material: High-quality aluminum; Color: Silver with black screen frame finish; Style: Modern, ultra-slim design.

Working Conditions

Operating temperature: -10 °C to 55 °C; Air humidity: 10% - 90% (non-condensing); Intended use: Indoor use.

Dimensions and Weight

Physical dimensions: 179 x 127 x 22 mm; Net weight: 360 g; Installation: Surface-mounted (bracket included).

Supported Languages

Menu language: Polish, English, Bulgarian, Croatian, Czech, French, Greek, Spanish, Dutch, German, Portuguese, Romanian, Serbian, Hungarian, Italian.

Compatibility

System: Fully compatible with Hikvision IP video intercom systems (2nd generation); Cameras: Works with Hikvision IP cameras (main and sub-stream preview).

Dimensions, Weight

Product dimensions: 22 x 179 x 127 mm (D x W x H)

Package dimensions: 60 x 250 x 175 mm (D x W x H)

Product weight: 360 g

Weight with package: 702 g
