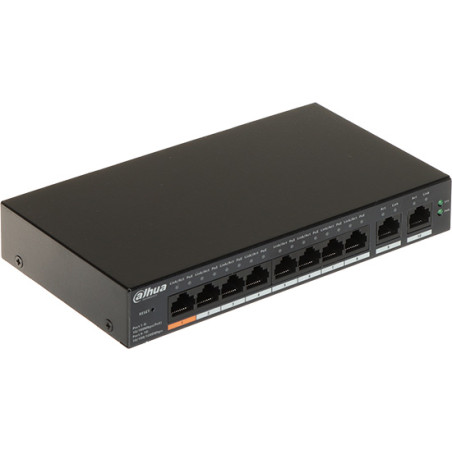

8-Port 10/100M Cloud and Web Managed PoE Switch Hi-PoE 60W Gigabit Uplink Metal Case

Model: DAHUA CS4010-8ET-60

EAN: 6931240028858 SKU: 931028853

• 8 PoE 10/100 Mbps ports for IP cameras and network devices
• 2 Uplink RJ45 10/100/1000 Mbps ports for high-speed backbone connections
• Supports Hi-PoE technology (Port 1) with output power up to 60W
• Management via Web browser and cloud (DoLynk Care)
• PoE Watchdog function - automatic restart of unresponsive devices
• Long Distance PoE mode allowing transmission range up to 250 meters
• VLAN support (Port Based) for traffic isolation and improved security
• Solid metal desktop case with wall-mount capability
• Advanced lightning protection up to 4kV
• LLDP protocol support and network loop detection (Loop Protection)

Description

The professional Dahua CS4010-8ET-60 PoE switch is an advanced networking solution that combines high performance, reliability, and modern cloud management features. The device is designed for expanding modern home and office networks, with a particular focus on IP monitoring systems. The switch offers 8 LAN 10/100 Mbps ports with support for Power over Ethernet (PoE) technology and 2 additional Gigabit (10/100/1000 Mbps) RJ45 Uplink ports, ensuring smooth data transmission to recorders or routers.

Specification

Thanks to the innovative Long Distance PoE function, the switch enables power and data transmission up to 250 meters (at 10 Mbps), which significantly lowers installation costs in large facilities. Additionally, the PoE Watchdog function automatically monitors the status of connected devices and, upon detecting a lack of response, performs a power restart on the specific port, eliminating the need for manual service intervention. Management is performed via an intuitive web interface or the modern DoLynk Care mobile application, providing full control over the network from anywhere in the world.

One of the key advantages of the device is the support for the Hi-PoE standard on the first port, allowing for power delivery of up to 60W – an ideal solution for demanding PTZ dome cameras or network speakers. The remaining 7 ports support 802.3af/at standards (up to 30W per port), while maintaining a total power budget of 60W. The solid metal desktop housing not only protects internal components but also aids in heat dissipation, which translates to stable operation in temperatures from -10°C to 55°C.

Interfaces and Ports

Total 10 ports: 8 x RJ45 10/100 Mbps (PoE ports), 2 x RJ45 10/100/1000 Mbps (Uplink)

Standards and Performance

Switching capacity: 4.8 Gbps; Packet forwarding rate: 3.57 Mpps; MAC address table: 8k

PoE Power Supply

Port 1: Hi-PoE (60W); Ports 2-8: PoE 802.3af/at (30W); Total power budget: 60W; Power pins: 1-2(+), 3-6(-), 4-5(+), 7-8(-)

Management and Configuration

L2 management via Web interface (browser) and DoLynk Care cloud platform; Default IP address: 192.168.1.110; Login: admin

Software (DoLynk Care)

The DoLynk Care cloud network management system enables full remote diagnostics and configuration of Dahua devices. The application offers real-time network topology monitoring, port failure notifications, remote restarting of end devices, and one-click firmware updates. Thanks to the cloud, the administrator can manage multiple locations from a single mobile app or web dashboard, which drastically reduces incident response time and facilitates the maintenance of IP monitoring systems.

Layer 2 Functions

Flow control (802.3x), Port Based VLAN (32 zones), LLDP protocol support, DHCP Client

Transmission Range

Standard: up to 100m; Long Distance PoE mode: up to 250m at 10 Mbps bandwidth (Ports 1-8)

Protection Mechanisms

PoE Watchdog (automatic camera hang detection), Loop Protection, Surge protection: 4 kV (common) / 2 kV (differential)

ESD Protection

Contact discharge: 6 kV; Air discharge: 8 kV

LED Indicators

Power, System (device status), Link/Act (port activity), PoE (power status)

Device Power Supply

Input voltage: 53V DC; Current: 1.22A; Power consumption: max. 65W (with PoE load)

Physical Construction

Metal housing, Desktop type; Color: Black; Wall-mount capability using brackets

Environmental Conditions

Operating temperature: -10 °C to +55 °C; Humidity: 10% - 90% (non-condensing)

Certification

CE compliance mark, safety and EMC standards

Dimensions, Weight

Product dimensions: 106 x 190 x 30 mm (D x W x H)

Packaging dimensions: 245 x 260 x 85 mm (D x W x H)

Product weight: 490 g

Weight with packaging: 1152 g
