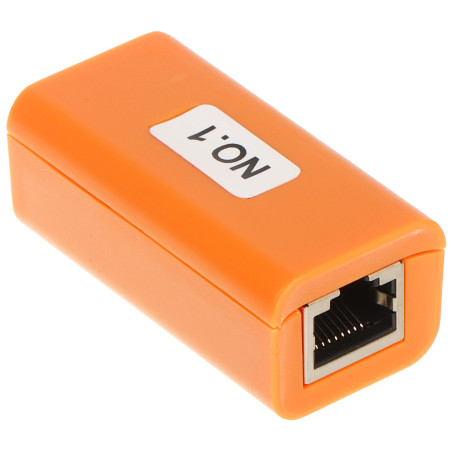

Set of 10 ID Terminators 1-10 for CCTV and LAN Network Testers RJ45 Delta CS-TER-1/10
zł391.63
Tax included
The CS-TER-1/10 terminator set is a professional diagnostic accessory designed specifically for CCTV system installers and computer network technicians. It is an essential addition to the functionality of advanced CS-Hx, CS-Rx, and CS-NT series video testers. The main purpose of using this set is to radically reduce the time required to identify and map extensive Ethernet cabling structures terminated with RJ-45 plugs.
The set consists of ten numbered modules, each with a unique, encoded identification number (ID) ranging from 1 to 10. This allows for the simultaneous connection of terminators to multiple network points (e.g., wall outlets) in a building. After connecting the tester to the other end of the cable in the patch panel or distribution point, the device immediately recognizes and displays the ID number of the terminator located at the end of that specific line. This allows the installer to instantly assign cables to specific rooms without the need for constant movement between floors.
Advantages of the set:
- Exceptional time savings: Ability to verify up to 10 lines in a single work cycle.
- High-quality workmanship: Robust RJ-45 sockets ensure excellent contact and long-term durability even under intensive use.
- Intuitive operation: Clear numerical markings on the housings eliminate the risk of errors during assembly.
- Wide compatibility: Works with most modern Delta brand testers equipped with an ID reading function.
- Compact dimensions: Low weight and size allow for easy transport of the entire set in a tool bag.
Using original Delta terminators guarantees measurement precision and tester stability. It is a passive solution that does not require additional batteries, making the set always ready for field work. It is ideal for technical acceptance of large IP monitoring installations and office LAN networks.
Set of 10 ID Terminators 1-10 for CCTV and LAN Network Testers RJ45
Model: Delta CS-TER-1/10
EAN: 6931240075937 SKU: 931075935
- Set of 10 numbered terminators with IDs 1-10
- Compatibility with CS-Hx, CS-Rx, CS-NT series testers
- Enables quick identification of RJ-45 cables
- Durable RJ-45 sockets
- Passive operation requiring no power supply
- Significant reduction of network mapping time
- Clear ID markings on each module
Description
The CS-TER-1/10 terminator set is a professional diagnostic accessory designed specifically for CCTV system installers and computer network technicians. It is an essential addition to the functionality of advanced CS-Hx, CS-Rx, and CS-NT series video testers. The main purpose of using this set is to radically reduce the time required to identify and map extensive Ethernet cabling structures terminated with RJ-45 plugs.
The set consists of ten numbered modules, each with a unique, encoded identification number (ID) ranging from 1 to 10. This allows for the simultaneous connection of terminators to multiple network points (e.g., wall outlets) in a building. After connecting the tester to the other end of the cable in the patch panel or distribution point, the device immediately recognizes and displays the ID number of the terminator located at the end of that specific line. This allows the installer to instantly assign cables to specific rooms without the need for constant movement between floors.
Advantages of the set:
- Exceptional time savings: Ability to verify up to 10 lines in a single work cycle.
- High-quality workmanship: Robust RJ-45 sockets ensure excellent contact and long-term durability even under intensive use.
- Intuitive operation: Clear numerical markings on the housings eliminate the risk of errors during assembly.
- Wide compatibility: Works with most modern Delta brand testers equipped with an ID reading function.
- Compact dimensions: Low weight and size allow for easy transport of the entire set in a tool bag.
Using original Delta terminators guarantees measurement precision and tester stability. It is a passive solution that does not require additional batteries, making the set always ready for field work. It is ideal for technical acceptance of large IP monitoring installations and office LAN networks.
Specification
Number of elements in the package
10 pieces of terminators with unique hardware addresses.
Connector type
Standard 8P8C (RJ-45) socket compatible with twisted pair cables (UTP/FTP).
ID numbering range
Range from 1 to 10 (each terminator has a different number recognized by the tester).
Compatible devices
Professional Delta CCTV video testers of the CS-Hx, CS-Rx series and CS-NT models.
Main function
Identification of physical Ethernet cable paths and continuity checking of pairs.
System application
IP video surveillance, AHD/CVI/TVI systems, structural class LAN computer networks.
Housing material
Durable ABS plastic resistant to mechanical damage and scratches.
Device type
Passive identification module (does not require batteries or external power).
Data presentation method
ID number is displayed graphically or textually on the LCD matrix of the connected tester.
Mapping method
Verification of wiring correctness (Wiremap) and identification of ports in switches/patch panels.
Operating speed
Instant ID reading after plugging the RJ45 connector into the terminator socket.
Operating conditions
Designed for indoor use, at temperatures from -10°C to +50°C.
Single module dimensions
Compact design with dimensions of 54 mm length, 27 mm width, and 22 mm height.
Manufacturer warranty
24 months (2 years) for individual customers and companies.
Contents
10x ID Terminator (numbering 1, 2, 3, 4, 5, 6, 7, 8, 9, 10)
1x Collective packaging
Dimensions, Weight
Product dimensions: 22 x 54 x 27 mm (Depth x Width x Height)
Packaging dimensions: 95 x 285 x 240 mm (Depth x Width x Height)
Product weight: 20 g
Weight with packaging: 1508 g
