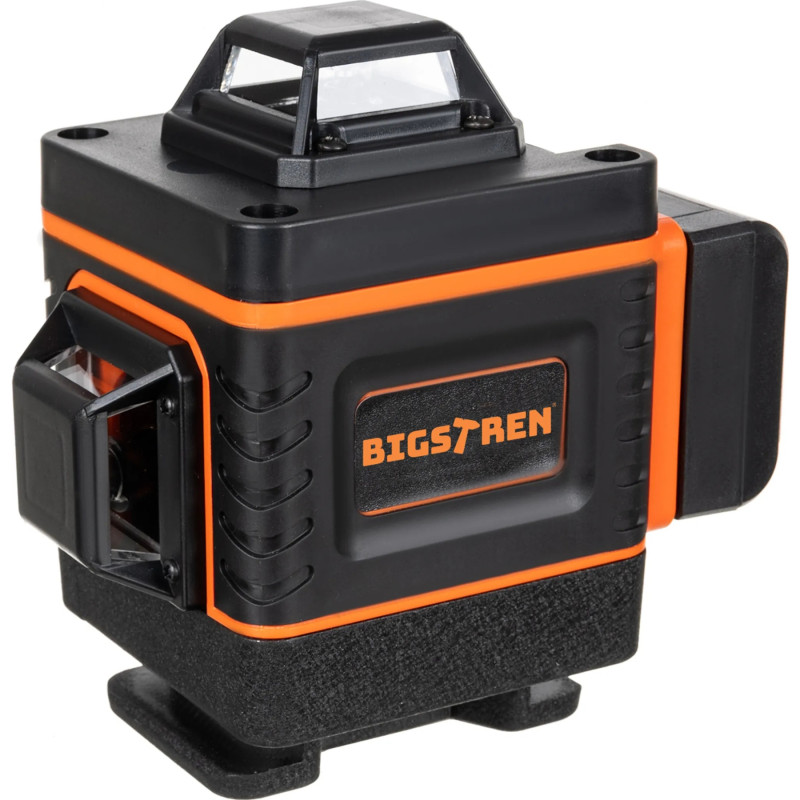

Professional 16 Line 4D Green Laser Level 360 Degree 25m Range IP54 Accessories BIGSTREN BIGSTREN-18763
zł330.33
Tax included
The BIGSTREN-18763 4D plane laser level is a modern and extremely precise measuring tool that will find use in every construction, finishing, and assembly project. The device generates 16 laser lines in 4D mode, allowing for full 360-degree coverage in vertical and horizontal planes. Thanks to the use of a green laser beam with a 532 nm wavelength, the displayed lines are perfectly visible even in bright rooms, which significantly increases comfort and efficiency compared to traditional red lasers.
One of the key advantages of the device is its working range of up to 25 meters and high accuracy of 0.2 mm per every 10 meters. The level is equipped with an intelligent self-leveling system operating in the range of +/- 3 degrees, which informs the user with an audible signal if the tilt is too high. For professionals working in harsh outdoor conditions, the manufacturer has provided a special OUT mode (pulse mode), which allows working with a beam detector in full sunlight.
The device design is compact and durable, meeting IP54 ingress protection standards, ensuring resistance to dust and splashes. Included are two dedicated batteries with a capacity of 1500 mAh each, which eliminates work downtime – while one battery powers the device, the other can be charged at the same time. Additionally, the included remote control allows for changing line display modes from a distance of up to 15 meters, which is invaluable when working on ladders or scaffolding. The whole set is packed in a professional, reinforced case, which facilitates transport and protects the equipment from mechanical damage.
Professional 16 Line 4D Green Laser Level 360 Degree 25m Range IP54 Accessories
Model: BIGSTREN BIGSTREN-18763
EAN: 6931240097199 SKU: 931097193
- Generation of 16 laser lines in 4D technology (360 degrees)
- Use of a green laser beam for better visibility
- Automatic self-leveling function with tilt alarm
- Working range up to 25 meters with high precision
- Includes 2 x 1500 mAh batteries ensuring continuous operation
- IP54 ingress protection rating resistant to dust and splashes
- Remote control via remote with a range of up to 15m
- Ability to work outdoors thanks to the OUT pulse mode
- Rich set of mounting accessories: magnetic mount, platform, adapter
- Adjustable leveling platform for precise height adjustment
Description
The BIGSTREN-18763 4D plane laser level is a modern and extremely precise measuring tool that will find use in every construction, finishing, and assembly project. The device generates 16 laser lines in 4D mode, allowing for full 360-degree coverage in vertical and horizontal planes. Thanks to the use of a green laser beam with a 532 nm wavelength, the displayed lines are perfectly visible even in bright rooms, which significantly increases comfort and efficiency compared to traditional red lasers.
One of the key advantages of the device is its working range of up to 25 meters and high accuracy of 0.2 mm per every 10 meters. The level is equipped with an intelligent self-leveling system operating in the range of +/- 3 degrees, which informs the user with an audible signal if the tilt is too high. For professionals working in harsh outdoor conditions, the manufacturer has provided a special OUT mode (pulse mode), which allows working with a beam detector in full sunlight.
The device design is compact and durable, meeting IP54 ingress protection standards, ensuring resistance to dust and splashes. Included are two dedicated batteries with a capacity of 1500 mAh each, which eliminates work downtime – while one battery powers the device, the other can be charged at the same time. Additionally, the included remote control allows for changing line display modes from a distance of up to 15 meters, which is invaluable when working on ladders or scaffolding. The whole set is packed in a professional, reinforced case, which facilitates transport and protects the equipment from mechanical damage.
Specification
Type and Model
4D Plane Laser Level BIGSTREN-18763
Laser Beam Parameters
Color: Green; Wavelength: 532 nm; Beam Type: 4D - 16 lines (4 in one 360° plane)
Range and Efficiency
Working distance: up to 25 m; Operating time on full charge: approx. 5 hours
Measurement Accuracy
Precision: 0.2 mm / 10 m; Line stability throughout the entire operating range
Leveling Mechanism
Self-leveling range: ± 3°; Warning system for incorrect tilt exceeding 3 degrees
Operating Modes
H Mode (horizontal), V Mode (vertical), OUT Mode (special mode for outdoor work - flashing)
Control
Physical control buttons on the housing; Remote control with a range of 13 m ... 15 m
Device Power Supply
Lithium-ion battery 3.7 V / 1500 mAh; Set includes 2 batteries and 5 V DC / 1 A power adapter
Mounting and Threads
Mounting thread: 5.6 mm; Includes tripod adapter and magnetic wall mount
Construction and Durability
Ingress protection rating: IP54 (protection against dust and water splashes); Housing made of resistant materials
Height Adjustment
Adjustable leveling platform (lift) allowing precise height adjustment up to 62 mm
Optical Accessories
Target plate included to facilitate beam targeting over long distances
Operating Conditions
Operating temperature: from -20 °C to 50 °C; Suitable for indoor and outdoor operation
Physical Dimensions
Device: 130 x 100 x 120 mm; Transport case: 220 x 210 x 150 mm
Contents
1x Laser Level
2x 1500mAh Battery
1x Mains charger
1x Remote control
1x Magnetic wall mount
1x Adjustable platform
1x Tripod adapter
1x Target plate
1x Transport case
Dimensions, Weight
Product dimensions: 130 x 100 x 120 mm (D x W x H)
Package dimensions: 240 x 220 x 170 mm (D x W x H)
Product weight: 560 g
Weight with packaging: 1722 g
