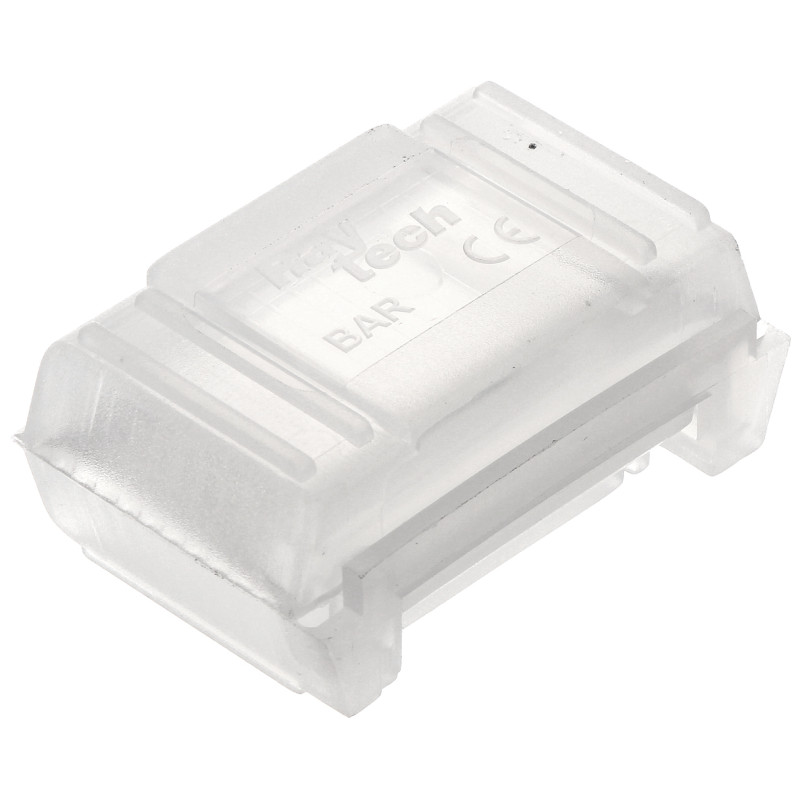

Hermetic Gelbox Junction Box IP68 9-Pack for Underground and Garden Installations Gel Muffle RayTech BAR-MP
zł269.62
Tax included
The high-quality universal Gelbox BAR-MP junction box is an innovative solution designed to provide the highest level of protection for electrical, signal, and antenna connections. This product features a factory-filled specialized insulating gel, allowing it to achieve an extreme IP68 protection class. Thanks to this solution, all connections are completely isolated from harmful external influences such as moisture, water, dirt, or dust.
The main advantage of this box is its versatility and reliability in difficult operating conditions. It works perfectly in highly humid areas and directly underground, for example, in professional electrical garden installations, irrigation systems, or outdoor lighting. The design of the box allows for mounting in any orientation - both horizontal and vertical - without any risk of the sealing gel flowing out, which significantly simplifies and speeds up the installation process in the field.
The internal insulating gel is completely harmless to humans and safe for the natural environment. One of its key features is its easy removability, which is essential if future modifications or repairs to the connection are needed. The box is resistant to aging processes and UV radiation, ensuring the longevity of the installation. By choosing RayTech boxes, you are investing in the safety and durability of your electrical systems, eliminating the risk of contact corrosion and short circuits resulting from water penetration. Compact dimensions allow for discrete concealment of the element in mounting boxes or in the ground.
Hermetic Gelbox Junction Box IP68 9-Pack for Underground and Garden Installations Gel Muffle
Model: RayTech BAR-MP
EAN: 6931240068496 SKU: 931068490
- Factory filled with insulating gel
- IP68 protection class (immersion resistance)
- Suitable for direct ground burial
- Full voltage insulation up to 1 kV
- Vertical and horizontal mounting capability
- Environmentally friendly and easily removable gel
- Set includes 9 pieces
- UV and weather resistant
Description
The high-quality universal Gelbox BAR-MP junction box is an innovative solution designed to provide the highest level of protection for electrical, signal, and antenna connections. This product features a factory-filled specialized insulating gel, allowing it to achieve an extreme IP68 protection class. Thanks to this solution, all connections are completely isolated from harmful external influences such as moisture, water, dirt, or dust.
The main advantage of this box is its versatility and reliability in difficult operating conditions. It works perfectly in highly humid areas and directly underground, for example, in professional electrical garden installations, irrigation systems, or outdoor lighting. The design of the box allows for mounting in any orientation - both horizontal and vertical - without any risk of the sealing gel flowing out, which significantly simplifies and speeds up the installation process in the field.
The internal insulating gel is completely harmless to humans and safe for the natural environment. One of its key features is its easy removability, which is essential if future modifications or repairs to the connection are needed. The box is resistant to aging processes and UV radiation, ensuring the longevity of the installation. By choosing RayTech boxes, you are investing in the safety and durability of your electrical systems, eliminating the risk of contact corrosion and short circuits resulting from water penetration. Compact dimensions allow for discrete concealment of the element in mounting boxes or in the ground.
Specification
Product type
Gelbox junction box filled with insulating gel
Purpose
Universal protection for electrical, telephone, signal, and antenna connections
Protection class
IP68 - Protection classes also known as degree of protection define resistance to external conditions. The digit 6 means full dust-tightness, and the digit 8 means resistance to continuous water immersion.
Voltage insulation
Insulation strength up to 1 kV (1000V)
Filling
Non-toxic, eco-friendly RayTech insulating gel, unlimited shelf life, easily removable for modifications
Mounting orientation
Vertical and horizontal mounting possible without risk of sealing compound leakage
Field application
High humidity areas, cable manholes, underground installation (gardens, outdoor installations)
Gel properties
Harmless to humans, environmentally safe, fully encapsulating the connector to isolate it from the environment
Internal dimensions
55 mm x 30 mm x 20 mm
External dimensions
63 mm x 41 mm x 28 mm
Package contents
9 pieces (The price refers to the entire bulk package)
Unit weight
0.052 kg (52 grams per piece)
Manufacturer brand
RayTech - leader in connector encapsulation and gel solutions
Warranty
2 years (24 months) from the date of purchase
Additional advantages
Product ready for use immediately upon removal from the packaging, requires no component mixing or additional tools.
Contents
9x BAR-MP junction box with factory gel filling
Dimensions, Weight
Product dimensions: 28 x 63 x 41 mm (D x W x H)
Package dimensions: 60 x 175 x 100 mm (D x W x H)
Product weight: 52 g
Package weight: 520 g
