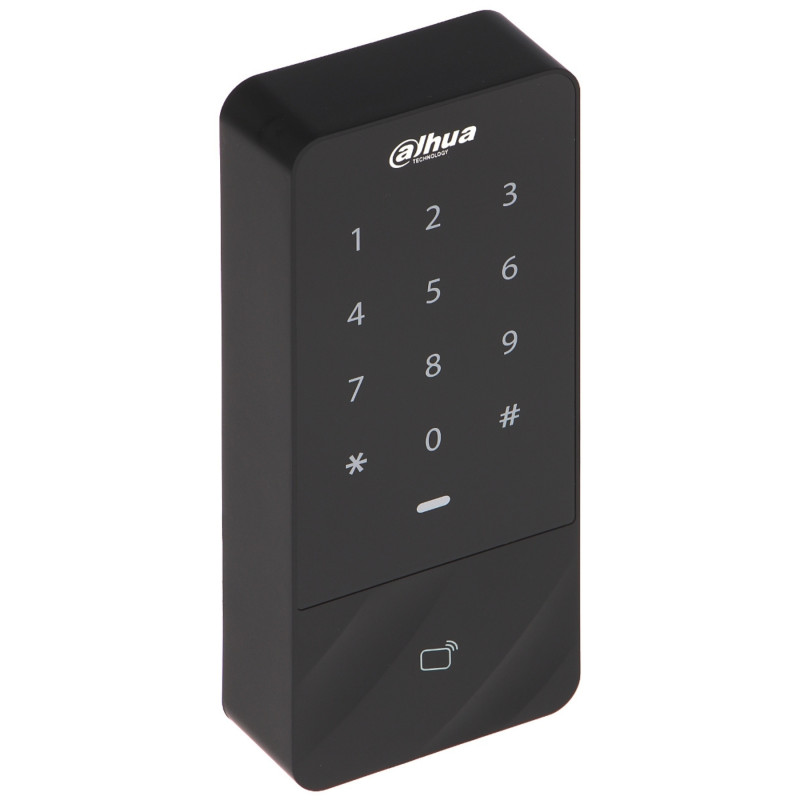

RFID Access Controller with Touch Keypad IP66 Ethernet RS-485 Wiegand EM 125kHz Standalone Card Reader DAHUA ASI1201E-D-V1
zł845.01
Tax included
The ASI1201E-D-V1 is a modern and highly reliable access controller from Dahua, combining the functionality of a proximity RFID card reader in the 125kHz Unique standard with a touch-sensitive keypad. The device is designed for operation in harsh outdoor conditions, confirmed by its high IP66 protection rating. With its durable PC housing, the controller is resistant to variable weather conditions and tampering attempts, making it an ideal choice for security systems in companies, offices, and industrial facilities.
A key advantage of this model is the ability to operate standalone or integrate with network systems via Ethernet, RS-485, or Wiegand interfaces. The device supports up to 30,000 users and stores up to 60,000 events in its internal memory, allowing for precise tracking of movement in protected areas. Intuitive operation is provided by touch-sensitive buttons with elegant blue backlighting and audible signals (buzzer). Additionally, the controller supports advanced features such as Anti-passback, remote access verification, and MASTER card support, which significantly increase the level of security and facilitate system administration.
Using professional SmartPSS Lite and DSS Pro software allows for full control over the device from a computer, enabling easy firmware updates, management of access groups, and generation of detailed reports. By choosing the ASI1201E-D-V1, you are investing in a product from a renowned manufacturer that guarantees stable operation for years, an aesthetic design fitting modern architecture, and comprehensive technical support.
RFID Access Controller with Touch Keypad IP66 Ethernet RS-485 Wiegand EM 125kHz Standalone Card Reader
Model: DAHUA ASI1201E-D-V1
EAN: 6931240027684 SKU: 931027683
- Standalone or networked operation
- Support for up to 30,000 RFID cards and 30,000 passwords
- Built-in Unique EM 125kHz card reader
- Touch keypad with blue backlight
- High ingress protection rating IP66 (water and dust resistant)
- 60,000 event log memory
- Communication interfaces: Ethernet, RS-485, Wiegand
- Tamper protection
- Anti-passback function
- Support for 128 access groups
- Firmware update via network
- Audible signaling (built-in buzzer)
- Remote access verification and management via SmartPSS Lite/DSS Pro
Description
The ASI1201E-D-V1 is a modern and highly reliable access controller from Dahua, combining the functionality of a proximity RFID card reader in the 125kHz Unique standard with a touch-sensitive keypad. The device is designed for operation in harsh outdoor conditions, confirmed by its high IP66 protection rating. With its durable PC housing, the controller is resistant to variable weather conditions and tampering attempts, making it an ideal choice for security systems in companies, offices, and industrial facilities.
A key advantage of this model is the ability to operate standalone or integrate with network systems via Ethernet, RS-485, or Wiegand interfaces. The device supports up to 30,000 users and stores up to 60,000 events in its internal memory, allowing for precise tracking of movement in protected areas. Intuitive operation is provided by touch-sensitive buttons with elegant blue backlighting and audible signals (buzzer). Additionally, the controller supports advanced features such as Anti-passback, remote access verification, and MASTER card support, which significantly increase the level of security and facilitate system administration.
Using professional SmartPSS Lite and DSS Pro software allows for full control over the device from a computer, enabling easy firmware updates, management of access groups, and generation of detailed reports. By choosing the ASI1201E-D-V1, you are investing in a product from a renowned manufacturer that guarantees stable operation for years, an aesthetic design fitting modern architecture, and comprehensive technical support.
Specification
Identification standard
Unique EM 125kHz
Reading range
Maximum 3 cm
Operation mode
Standalone or Networked
Keypad
Built-in, touch-sensitive, blue backlit
System capacity
Users: 30,000, Cards: 30,000, Passwords: 30,000, Events: 60,000
Communication interfaces
Ethernet (RJ-45), RS-485, Wiegand
Input/output interfaces
Exit button, door status detection, lock control, power output, tamper output
Security functions
Anti-passback, door open too long alarm, unauthorized entry alarm, Tamper
Control software
Support for SmartPSS Lite and DSS Pro platforms. SmartPSS Lite is a comprehensive application allowing for centralized access control system management, real-time monitoring, and device parameter configuration. It offers user database synchronization, schedule management (128 groups), as well as generating and exporting event logs to formats such as CSV or PDF. DSS Pro provides scalability and advanced analytical tools for large security systems.
Configuration and administration
Adding cards via MASTER card, multi-user authentication, auto-registration, remote verification
Housing
Plastic (PC), black color, surface mount
Protection class
IP66 - dust-tight and protected against powerful water jets
Operating conditions
Temperature: -30 °C ... 60 °C, Humidity: 0% ... 90% (non-condensing)
Power supply and power consumption
12 V DC / 1 A (without lock power), 12 V DC / ≤ 2 A (with lock power); Maximum consumption: 2 A
Dimensions
142 x 62 x 23 mm
Contents
1x ASI1201E-D-V1 Controller
1x Mounting accessories
1x User manual
Dimensions, Weight
Product dimensions: 23 x 62 x 142 mm (D x W x H)
Packaging dimensions: 55 x 135 x 195 mm (D x W x H)
Product weight: 170 g
Weight with packaging: 302 g
