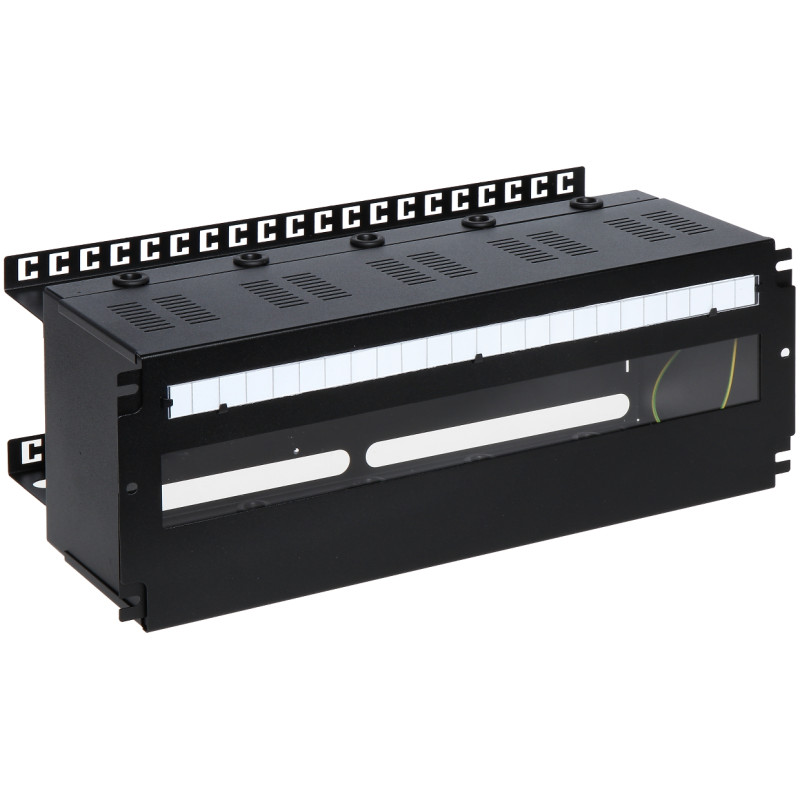

19 inch 4U RACK enclosure with DIN TH-35 rail for modular fuses and equipment black steel PULSAR A19-TS-35/OB-4U
zł423.12
Tax included
The enclosure is a specialized structural solution designed for integrating modular DIN apparatus with 19-inch RACK server and telecommunication cabinets. It is an essential product wherever the aesthetic and safe placement of overcurrent protection, contactors, or other automation modules is required directly within a patch cabinet.
The main advantage of this model is its exceptional functionality, allowing for the mounting of up to 24 1S-width fuses on a standard TH-35 rail. Thanks to its 4U height, the enclosure offers sufficient space for devices with a height not exceeding 160 mm. The solid construction made of black (RAL 9005) powder-coated sheet steel guarantees not only mechanical durability but also high corrosion resistance and an aesthetic appearance consistent with other RACK equipment.
The product is equipped with well-thought-out mounting amenities, such as a 6-point front attachment to cabinet profiles, which ensures full stability even under a full load of apparatus. Additionally, a system of 10 rubber grommets (in the top and bottom parts) facilitates neat cable routing, protecting wire insulation from damage caused by metal edges. The built-in labeling field allows for clear identification of individual circuits, which significantly speeds up service and maintenance tasks. The set also includes a dedicated plate for a 17Ah/12V battery, making this enclosure ideal for building backup power systems inside RACK cabinets.
19 inch 4U RACK enclosure with DIN TH-35 rail for modular fuses and equipment black steel
Model: PULSAR A19-TS-35/OB-4U
EAN: 6931240052044 SKU: 931052046
- 19-inch RACK mounting standard with 4U height
- Integrated DIN TH-35 rail with 24x1S capacity
- Capacity for up to 24 fuse modules
- Made of durable powder-coated steel
- High resistance to corrosion and mechanical damage
- System of 10 rubber cable grommets for easy organization
- Stable 6-point front mounting to RACK profiles
- 420x20 mm labeling field for identifying modules
- Includes a set of 6 M6 screws with mounting cages
- Additional mounting plate for a 17Ah/12V battery
Description
The enclosure is a specialized structural solution designed for integrating modular DIN apparatus with 19-inch RACK server and telecommunication cabinets. It is an essential product wherever the aesthetic and safe placement of overcurrent protection, contactors, or other automation modules is required directly within a patch cabinet.
The main advantage of this model is its exceptional functionality, allowing for the mounting of up to 24 1S-width fuses on a standard TH-35 rail. Thanks to its 4U height, the enclosure offers sufficient space for devices with a height not exceeding 160 mm. The solid construction made of black (RAL 9005) powder-coated sheet steel guarantees not only mechanical durability but also high corrosion resistance and an aesthetic appearance consistent with other RACK equipment.
The product is equipped with well-thought-out mounting amenities, such as a 6-point front attachment to cabinet profiles, which ensures full stability even under a full load of apparatus. Additionally, a system of 10 rubber grommets (in the top and bottom parts) facilitates neat cable routing, protecting wire insulation from damage caused by metal edges. The built-in labeling field allows for clear identification of individual circuits, which significantly speeds up service and maintenance tasks. The set also includes a dedicated plate for a 17Ah/12V battery, making this enclosure ideal for building backup power systems inside RACK cabinets.
Specification
Construction standard
19 inches (482.6 mm)
Mounting height
4U (rack units)
Enclosure material
High-strength cold-formed sheet steel
Protective coating
Powder coating, resistant to scratches and UV radiation
Color scheme
Black (RAL 9005)
Ingress protection class
IP20 - protection against access to dangerous parts and against foreign solid objects 12.5 mm in diameter and larger
Internal mounting rail
DIN TH-35 (standard symmetrical mounting rail)
Modular capacity
Up to 24 fuses (modules) with a width of 1 S (17.5 mm each)
Maximum module height
160 mm - free space from rail to cover
Cable management
10 rubber grommets (5 on top and 5 on bottom of enclosure) for easy cable bundle entry
Identification system
420 x 20 mm labeling field located on the front panel
Environmental parameters
Operating temperature range from -10 °C to 40 °C; Relative humidity without condensation
Additional power support
Dedicated bracket (plate) included allowing mounting of 17Ah 12V lead-acid (VRLA/AGM) battery
Mounting method
Front mounting to vertical RACK rails (6 mounting points ensure structural rigidity)
Contents
1x RACK enclosure with DIN rail
1x 17Ah battery plate
6x M6 screw
6x M6 mounting cage
1x Set of rubber grommets
Dimensions, Weight
Product dimensions: 234 x 482 x 175 mm (Depth x Width x Height)
Packaging dimensions: 240 x 490 x 250 mm (Depth x Width x Height)
Product weight: 3730 g
Weight with packaging: 3960 g
