- New

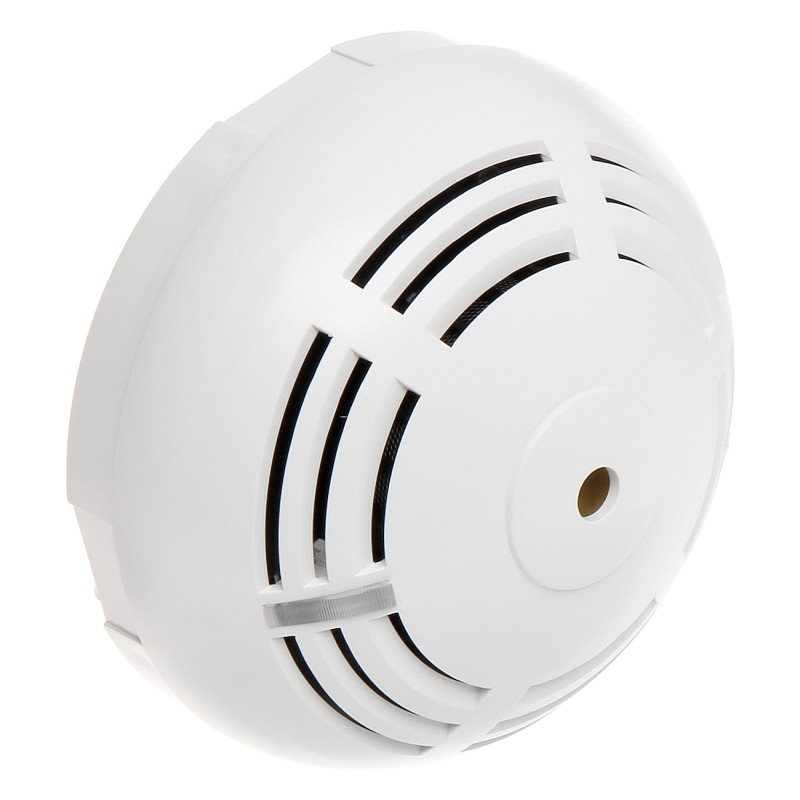

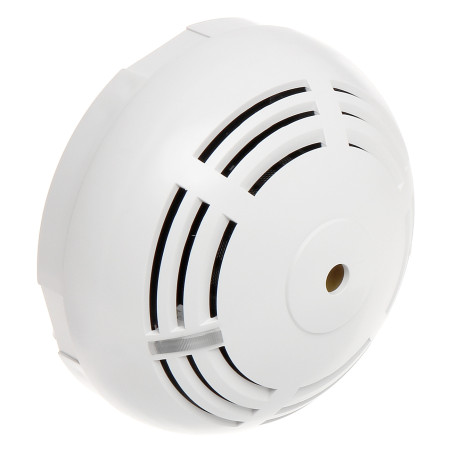

ABAX 2 Wireless Optical Smoke Detector Fire Detector Pro Acoustic and Optical Signaling SATEL ASD-250
zł383.45
Tax included
The ASD-250 wireless smoke detector is an advanced Fire Detector Pro series device designed for early fire detection during the smoldering phase. It uses advanced optical visible smoke detection technology, which allows for instant reaction and transmission of information about the threat. The product is an ideal solution for those seeking the reliability and mobility offered by the ABAX and ABAX 2 wireless systems.
The greatest advantage of the device is its versatility – it can work as a component of an extensive alarm system connected to a control panel, transmitting radio alarm signals, or fully autonomously in accordance with the strict EN 14604 standard. In the event of detecting a danger, the detector activates a built-in sounder (buzzer) and optical notification in the form of a flashing LED, which ensures an immediate warning to residents even while they are sleeping.
The wireless nature of the detector eliminates the need for expensive and complex cable installations, allowing it to be mounted anywhere in the facility. Additionally, the ECO function available in the ABAX 2 system enables up to a fourfold increase in battery life, which translates into lower operating costs and less frequent maintenance visits. The device features a modern, aesthetic design that discreetly blends into any interior, from modern offices to classic detached houses. By choosing this product, you are investing in Polish manufacturing quality and proven security technologies.
ABAX 2 Wireless Optical Smoke Detector Fire Detector Pro Acoustic and Optical Signaling
Model: SATEL ASD-250
EAN: 6931240079171 SKU: 931079176
- Compatible with the bidirectional wireless ABAX and ABAX 2 systems
- Optical visible smoke detector operating on the Tyndall effect principle
- Built-in acoustic alarm (buzzer) with high sound intensity
- Autonomous operation capability in accordance with EN 14604 standard
- ECO function for significantly extended battery life
- Radio communication range in open area up to 2000 meters
- Remote configuration and device firmware updates
- Optical alarm signaling via bright LED
- High resistance to false alarms thanks to an advanced optical chamber
- Compact housing with a diameter of only 108 mm
Description
The ASD-250 wireless smoke detector is an advanced Fire Detector Pro series device designed for early fire detection during the smoldering phase. It uses advanced optical visible smoke detection technology, which allows for instant reaction and transmission of information about the threat. The product is an ideal solution for those seeking the reliability and mobility offered by the ABAX and ABAX 2 wireless systems.
The greatest advantage of the device is its versatility – it can work as a component of an extensive alarm system connected to a control panel, transmitting radio alarm signals, or fully autonomously in accordance with the strict EN 14604 standard. In the event of detecting a danger, the detector activates a built-in sounder (buzzer) and optical notification in the form of a flashing LED, which ensures an immediate warning to residents even while they are sleeping.
The wireless nature of the detector eliminates the need for expensive and complex cable installations, allowing it to be mounted anywhere in the facility. Additionally, the ECO function available in the ABAX 2 system enables up to a fourfold increase in battery life, which translates into lower operating costs and less frequent maintenance visits. The device features a modern, aesthetic design that discreetly blends into any interior, from modern offices to classic detached houses. By choosing this product, you are investing in Polish manufacturing quality and proven security technologies.
Specification
Communication standard
Wireless, bidirectional radio system
Compatibility
ABAX2 (ACU-220, ACU-280), ABAX (ACU-120, ACU-270)
Detection type
Optical smoke detection (visible smoke)
Alarm signaling
Piezoelectric buzzer, LED flashing, radio signal to the control panel
Frequency band
868.0 MHz ... 868.6 MHz
ABAX 2 radio range
Up to 2000 m (with ACU-220), up to 1600 m (with ACU-280)
ABAX radio range
Up to 500 m in open area
Power supply
CR123A 3 V lithium battery
Battery life
Approx. 2 years in ABAX/ABAX2 system, approx. 4 years in autonomous mode
Current consumption
90 µA in system, 15 µA in autonomous mode
Energy saving
ECO option (available only in the ABAX 2 system)
Operating temperature
0 °C ... 55 °C
Standards and certificates
EN 14604 (autonomous operation), CE declaration
Software and System
The ABAX 2 system, with which the detector works, is an advanced bidirectional communication platform operating in the 868 MHz band. The system software offers 4 communication channels with automatic selection of the least interfered band, which guarantees connection stability. All radio transmission is fully encrypted using the AES-128 standard, protecting the system against attempts at interference and sabotage. The detector firmware can be updated remotely without the need to remove the device from the ceiling, which significantly simplifies system service and maintenance. Integration with SATEL control panel configuration software (e.g., DLOADX) allows for precise setting of detector operating parameters, monitoring of signal levels, and checking the current battery status from a computer or mobile application. This gives the user full control over the fire alarm system in real-time.
Contents
1x ASD-250 smoke detector
1x CR123A battery
1x Mounting base
1x Set of wall plugs and screws
1x User manual
Dimensions, Weight
Product dimensions: 54 x 108 x 108 mm (Depth x Width x Height)
Packaging dimensions: 70 x 120 x 120 mm (Depth x Width x Height)
Product weight: 170 g
Weight with packaging: 226 g
