- New

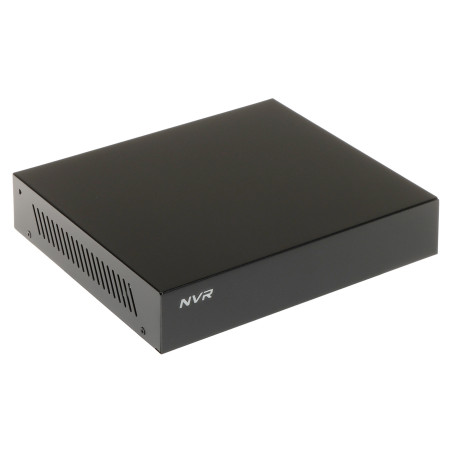

9 Channel IP NVR 8 PoE Ports 4K UHD H.265+ HDMI P2P BitVision NDAA APTI APTI-N0921-8P-I3
zł343.08
Tax included
The professional digital video recorder APTI-N0921-8P-I3 is an advanced solution dedicated to IP monitoring systems, offering support for up to 9 channels at high resolutions of up to 12 Mpx. The device's greatest advantage is its integrated 8-port PoE switch, which allows for direct powering of cameras via twisted-pair cable, significantly simplifying installation and reducing cabling costs. The recorder supports the latest H.265+ video compression standard, which ensures excellent image quality while drastically reducing network bandwidth requirements and disk space. The device was designed with maximum intuitiveness in mind – the modern menu allows for quick configuration even for users without significant technical experience. Thanks to P2P (Cloud) technology support, the user can enjoy remote viewing on a phone or tablet without the need for a static IP address or complex port forwarding. A solid design and NDAA certificate compliance make this an ideal choice for both home systems and commercial offices or warehouses. An additional advantage is intelligent image analysis, which works with the APTI-AI series cameras, allowing for precise event detection and increasing the overall security level of the monitored object.
9 Channel IP NVR 8 PoE Ports 4K UHD H.265+ HDMI P2P BitVision NDAA
Model: APTI APTI-N0921-8P-I3
EAN: 6931240065938 SKU: 931065938
- Supports up to 9 IP channels at resolutions up to 12 Mpx
- Built-in 8-port PoE switch (802.3at) with up to 30W per channel
- State-of-the-art H.265+ / H.265 / H.264+ / H.264 video compression
- Remote access via cloud (P2P) and dedicated BitVision / iVMS320 applications
- NDAA security certificate compliance
- Support for AI intelligent image analysis (with APTI-AI series cameras)
- Supports SATA hard drives up to 8 TB
- HDMI video output supporting high resolution
- ONVIF communication standard for compatibility with various camera brands
- Menu in Polish and 12 other languages
Description
The professional digital video recorder APTI-N0921-8P-I3 is an advanced solution dedicated to IP monitoring systems, offering support for up to 9 channels at high resolutions of up to 12 Mpx. The device's greatest advantage is its integrated 8-port PoE switch, which allows for direct powering of cameras via twisted-pair cable, significantly simplifying installation and reducing cabling costs. The recorder supports the latest H.265+ video compression standard, which ensures excellent image quality while drastically reducing network bandwidth requirements and disk space. The device was designed with maximum intuitiveness in mind – the modern menu allows for quick configuration even for users without significant technical experience. Thanks to P2P (Cloud) technology support, the user can enjoy remote viewing on a phone or tablet without the need for a static IP address or complex port forwarding. A solid design and NDAA certificate compliance make this an ideal choice for both home systems and commercial offices or warehouses. An additional advantage is intelligent image analysis, which works with the APTI-AI series cameras, allowing for precise event detection and increasing the overall security level of the monitored object.
Specification
Standard and Resolution
Standard: IP, Supported resolutions: up to 12 Mpx (4K), Bitrate: 80 Mb/s incoming
Video and Audio
Video outputs: 1x HDMI, Audio support: 9 channels - audio from IP cameras, Compression: H.265+ / H.265 / H.264+ / H.264
PoE Switch
PoE switch: Built-in 8-port, PoE standard: IEEE 802.3at, Power per channel: up to 30 W, Maximum total load: 45 W
Recording and Archiving
Supported disks: 1 x 8 TB SATA, Recording modes: Manual, motion detection, schedule, Archiving: USB drive (pendrive, external drive)
Interfaces
Network interface: RJ-45 10/100 Base-TX, USB: 2x USB 2.0, Alarm inputs/outputs: None, PTZ control: Support for IP speed dome cameras
Network Functions and P2P
Cloud access: Yes (P2P), WWW preview: IE browser (live preview, playback, configuration), Default IP address: DHCP / 192.168.1.88, Access ports: 80, 5000, 554
Intelligent Analysis and Detection
Motion detection: Screen division into 22x18 zones, AI: Support for intelligent image analysis from APTI-AI series cameras, Event analysis: Depending on the capabilities of the connected camera
Software
The recorder works with advanced BitVision and iVMS320 software (available for Android and iOS), which enables full remote system management. These applications offer instant live preview thanks to P2P technology, remote playback of recordings from the hard drive, and configuration of push notifications for motion detection or AI events. BitVision has an intuitive graphical interface, while iVMS320 allows for centralized management of multiple recorders from a PC or mobile device. The software ensures a stable connection without the need for port forwarding on the router.
Operating Parameters
Operating temperature: -10 °C ... 50 °C, Power supply: 48 V DC / 1.36 A (power adapter included), Power consumption: max. 10 W (without HDD and PoE)
Certificates and Security
NDAA: Compliance with the US National Defense Authorization Act, ONVIF: Yes, Logins: admin / 123456 (newer versions), admin / 12345 (older versions)
Supported Languages
Polish, English, Czech, French, Greek, Spanish, Dutch, German, Portuguese, Russian, Ukrainian, Hungarian, Italian
Warranty
2 years
Contents
1x IP NVR APTI-N0921-8P-I3
1x Power adapter 48V/1.36A
1x USB mouse
1x Set of mounting screws for HDD
Dimensions, Weight
Product dimensions: 175 x 200 x 40 mm (D x W x H)
Package dimensions: 290 x 385 x 85 mm (D x W x H)
Product weight: 590 g
Weight with packaging: 1644 g
