- New

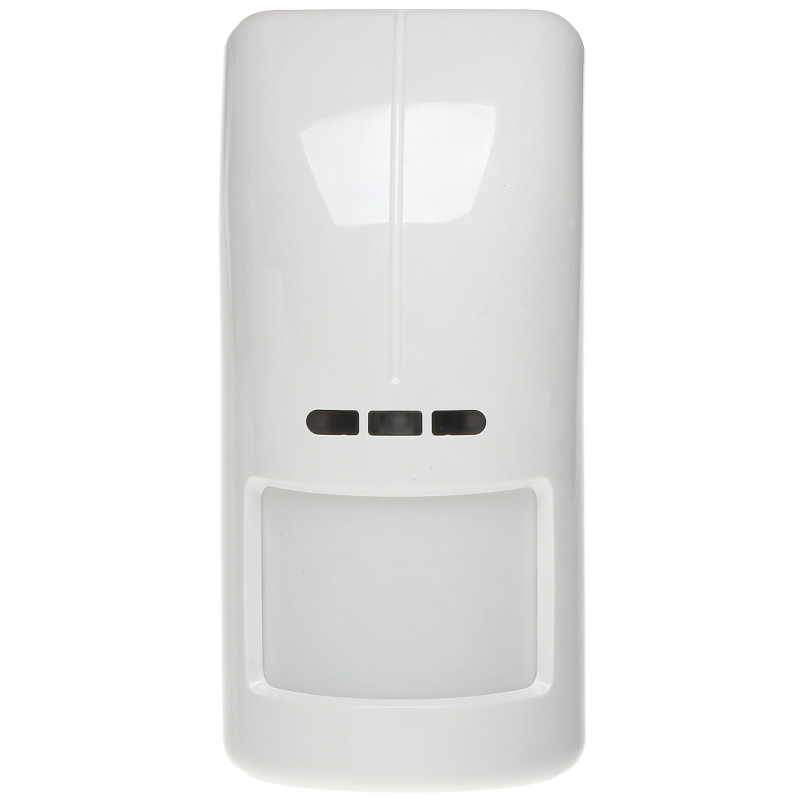

Wireless Dual Outdoor PIR and Microwave Motion Detector for ABAX ABAX2 Alarm Systems SATEL AOD-210
zł756.45
Tax included
Advanced wireless motion detector designed for demanding outdoor and indoor conditions. The device is a key component of professional security systems, offering unparalleled detection precision thanks to a unique combination of two technologies: Passive Infrared (PIR) and Microwave (MW). This solution guarantees maximum immunity to false alarms caused by atmospheric factors, such as sudden gusts of wind, rain, snow, or moving air masses.
The detector features full compatibility with modern bidirectional radio communication systems, making it an ideal solution for facilities where traditional wiring is difficult or impossible to install. The product is perfect for perimeter protection of detached houses, garages, workshops, boutiques, and industrial facilities. An additional advantage is the built-in intelligent twilight sensor, which allows for integration with building automation systems, enabling, for example, control of lighting or roller shutters based on external light intensity.
The robust IP54-rated housing ensures full protection against dust and water splashes, which, combined with an extremely wide operating temperature range (from -40°C to +55°C), allows for reliable operation in any climatic conditions. The device has been designed for long-term, maintenance-free operation – advanced power-saving mechanisms allow it to operate on a single battery for up to 2 years. Choose professional security and rely on proven Polish technological solutions.
Wireless Dual Outdoor PIR and Microwave Motion Detector for ABAX ABAX2 Alarm Systems
Model: SATEL AOD-210
EAN: 6931240043387 SKU: 931043385
- Dual detection technology: Passive Infrared (PIR) and Microwave (MW)
- High immunity to false alarms and changing weather conditions
- Full compatibility with ABAX and ABAX2 wireless systems
- Built-in twilight sensor for building automation control
- Pet immunity for animals up to 20 kg
- Remote configuration and advanced power management
- Integrated tamper protection against opening and detachment
- IP54 ingress protection rating suitable for outdoor installation
- Compliance with EN 50131 Grade 2 (medium risk)
- Multi-channel radio communication with AES data encryption
Description
Advanced wireless motion detector designed for demanding outdoor and indoor conditions. The device is a key component of professional security systems, offering unparalleled detection precision thanks to a unique combination of two technologies: Passive Infrared (PIR) and Microwave (MW). This solution guarantees maximum immunity to false alarms caused by atmospheric factors, such as sudden gusts of wind, rain, snow, or moving air masses.
The detector features full compatibility with modern bidirectional radio communication systems, making it an ideal solution for facilities where traditional wiring is difficult or impossible to install. The product is perfect for perimeter protection of detached houses, garages, workshops, boutiques, and industrial facilities. An additional advantage is the built-in intelligent twilight sensor, which allows for integration with building automation systems, enabling, for example, control of lighting or roller shutters based on external light intensity.
The robust IP54-rated housing ensures full protection against dust and water splashes, which, combined with an extremely wide operating temperature range (from -40°C to +55°C), allows for reliable operation in any climatic conditions. The device has been designed for long-term, maintenance-free operation – advanced power-saving mechanisms allow it to operate on a single battery for up to 2 years. Choose professional security and rely on proven Polish technological solutions.
Specification
Communication standard
ABAX / ABAX2 wireless system; bidirectional encrypted radio transmission in the 868 MHz band (868.0 MHz to 868.6 MHz).
Radio transmission range
Up to 2000 m in open terrain when working with the ACU-220 controller; up to 1600 m with ACU-280; up to 500 m in the older ABAX system.
PIR detection parameters
Detection area: 16 m x 14.5 m; viewing angle: 90 degrees; creep zone monitoring function to prevent detector bypass.
MW detection parameters
Microwave frequency: 24.125 GHz; independent sensitivity adjustment for the microwave path.
Pet immunity
Optional pet immunity function for animals weighing up to 20 kg.
Power supply and battery
CR123A 3V lithium battery; battery life up to 2 years in power-saving mode; constant battery voltage monitoring.
Detectable movement speed
From 0.3 m/s to 3.0 m/s; guarantees detection of a running or creeping intruder.
Mounting
Recommended mounting height: 2.4 m; direct mounting or mounting on dedicated adjustable brackets (BRACKET-C, BRACKET-E).
Security (Grade)
Compliance with Grade 2 requirements according to EN 50131-2-4; certified security level for residential and commercial premises.
Tamper protection
Full protection against housing opening (Tamper) and attempts to detach the device from the mounting surface.
Environmental conditions
Operating temperature: -40 °C to 55 °C; relative humidity: up to 93% (±3%); Environmental class according to EN 50130-5: IIIa.
Housing ingress protection class
IP54 - protection against dust ingress and rain or splashing from any direction.
Automation functions
Built-in twilight sensor with a measurement range from 2 lx to 250 lx; allows sending information about the lighting level to the alarm control panel.
Software and System
The detector works with DLOADX configuration software and the INTEGRA / VERSA management system. The ABAX 2 system offers an advanced radio communication protocol with frequency hopping, which automatically changes the channel when interference is detected. All transmissions are fully encrypted using the AES standard, ensuring the highest level of protection against radio sabotage attempts. The software allows for remote configuration of the sensitivity of both detection paths and changing the twilight sensor operating parameters without the need for physical access to the detector. The power management system dynamically adjusts transmit power based on signal strength, which significantly extends the battery life.
Contents
1x AOD-210 Detector
1x CR123A lithium battery
1x Set of mounting plugs and screws
1x Quick installation guide
Dimensions, Weight
Product dimensions: 58 x 65 x 138 mm (D x W x H)
Package dimensions: 65 x 70 x 160 mm (D x W x H)
Product weight: 180 g
Weight with package: 218 g
Zum Download
931043385
23 Items
Specific References
- EAN13
- 6931240043387
