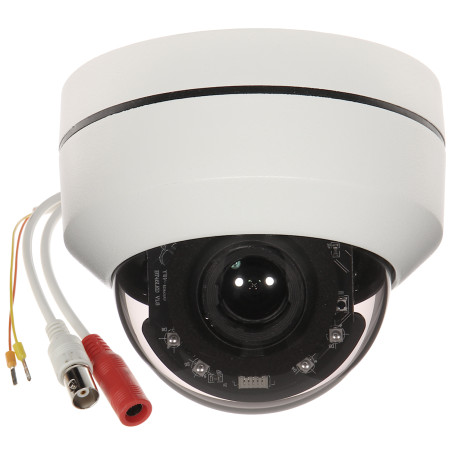

Outdoor PTZ Speed Dome Camera 4in1 Full HD Motozoom IR 45m 1080p IP66 Apti OMEGA-PTZ-22H4-4
zł629.76
Tax included
This modern outdoor speed dome camera is an advanced video surveillance solution combining high Full HD image quality with full PTZ functionality. Thanks to its 4-in-1 hybrid interface (AHD, HD-CVI, HD-TVI, CVBS), the device is fully compatible with most analog recorders available on the market. The integrated 2.1-megapixel Sony CMOS sensor guarantees an extremely detailed 1080p image, allowing for precise identification of people and events in the monitored area.
The camera's greatest strength is its 2.8 - 12 mm vari-focal motozoom lens. It enables remote adjustment of the viewing angle and 4x optical zoom without losing focus, which is crucial for monitoring large spaces. The device is designed to work in harsh outdoor conditions, confirmed by its high IP66 protection class, ensuring total protection against precipitation and dust. The compact Speed Dome housing, made of durable plastic, makes the camera aesthetically pleasing and corrosion-resistant.
The integrated infrared illuminator with an impressive range of up to 45 meters allows for effective monitoring in complete darkness. The intelligent system automatically adjusts the illumination power to the distance of the observed objects, eliminating overexposure. A mechanical infrared filter (ICR) ensures natural colors during the day and maximum sensor sensitivity at night. Advanced digital noise reduction (3D-DNR) and automatic gain control (AGC) significantly improve recording quality in unfavorable lighting conditions, making this camera an ideal choice for protecting homes, businesses, parking lots, or construction sites.
Outdoor PTZ Speed Dome Camera 4in1 Full HD Motozoom IR 45m 1080p IP66
Model: Apti OMEGA-PTZ-22H4-4
EAN: 6931240094815 SKU: 931094818
- Multi-system operation: AHD, HD-CVI, HD-TVI, CVBS
- High resolution Full HD 1920 x 1080 px
- Motozoom lens 2.8 - 12 mm with 4x optical zoom
- IR illuminator range up to 45 meters
- High-speed PTZ head: 355° horizontal rotation, 70° vertical rotation
- Control via RS-485 or Pelco-D/P protocols
- Support for up to 220 presets and 8 patrol routes
- Weather resistance - IP66 protection class
- Image enhancement functions: 3D-DNR, ICR, AGC, WB, Sharpness
- Very small dimensions for discreet installation
Description
This modern outdoor speed dome camera is an advanced video surveillance solution combining high Full HD image quality with full PTZ functionality. Thanks to its 4-in-1 hybrid interface (AHD, HD-CVI, HD-TVI, CVBS), the device is fully compatible with most analog recorders available on the market. The integrated 2.1-megapixel Sony CMOS sensor guarantees an extremely detailed 1080p image, allowing for precise identification of people and events in the monitored area.
The camera's greatest strength is its 2.8 - 12 mm vari-focal motozoom lens. It enables remote adjustment of the viewing angle and 4x optical zoom without losing focus, which is crucial for monitoring large spaces. The device is designed to work in harsh outdoor conditions, confirmed by its high IP66 protection class, ensuring total protection against precipitation and dust. The compact Speed Dome housing, made of durable plastic, makes the camera aesthetically pleasing and corrosion-resistant.
The integrated infrared illuminator with an impressive range of up to 45 meters allows for effective monitoring in complete darkness. The intelligent system automatically adjusts the illumination power to the distance of the observed objects, eliminating overexposure. A mechanical infrared filter (ICR) ensures natural colors during the day and maximum sensor sensitivity at night. Advanced digital noise reduction (3D-DNR) and automatic gain control (AGC) significantly improve recording quality in unfavorable lighting conditions, making this camera an ideal choice for protecting homes, businesses, parking lots, or construction sites.
Specification
Video standards
AHD, HD-CVI, HD-TVI, CVBS (analog video signal)
Sensor and matrix
1/2.9 " Sony CMOS, resolution 2.1 Mpx (1920 x 1080 px)
Lens and Zoom
Motozoom 2.8 ... 12 mm, Optical zoom x4, Digital zoom x16
Viewing angle
91 ° ... 28 ° (manufacturer data), 76 ° ... 30 ° (test results)
Infrared illuminator
Automatic IR with range up to 45 m (dependent on environmental conditions)
Head rotation range
Horizontal: 0 ° ... 355 ° (limited by end stop), Vertical: 0 ° ... 70 °
Rotation speed
Manual: 25 °/s (horizontal), 20 °/s (vertical); At presets: 25 °/s (horiz), 20 °/s (vert)
Control and Interface
RS-485 interface, default address: 1, speed: 2400 bit/s, Pelco-D/P protocols (auto-detection)
Automation functions
220 Presets, 8 configurable patrol routes, Park Action function (return after inactivity)
Image processing
ICR (mechanical infrared filter), 3D-DNR (noise reduction), AGC (gain), WB (white balance), Sharpness
Software and OSD
Integrated control software allows full configuration of camera parameters via the OSD menu displayed on the screen. The system allows remote change of the operating standard (AHD/CVI/TVI/CVBS) using a sequence of presets 137-140 triggered from the recorder. The software manages precise head movement and motozoom optics, ensuring smooth response to RS-485 commands. The interface is clear, supports English, and allows image optimization depending on scene lighting, including IR illuminator sensitivity adjustment.
Electrical parameters
Power supply 12 V DC / 940 mA, Power consumption ≤ 11.3 W
Construction and Environment
Speed Dome housing, Material: Plastic, Color: White, Protection class IP66, Operating temperature: -40 °C ... 60 °C
Dimensions and Weight
Diameter 111 mm, Height 102 mm, Weight 0.57 kg (570 g)
Contents
1x PTZ camera
1x Mounting kit
1x User manual
Dimensions, Weight
Product dimensions: 111 x 111 x 102 mm (Depth x Width x Height)
Package dimensions: 180 x 180 x 160 mm (Depth x Width x Height)
Product weight: 570 g
Weight with packaging: 820 g
