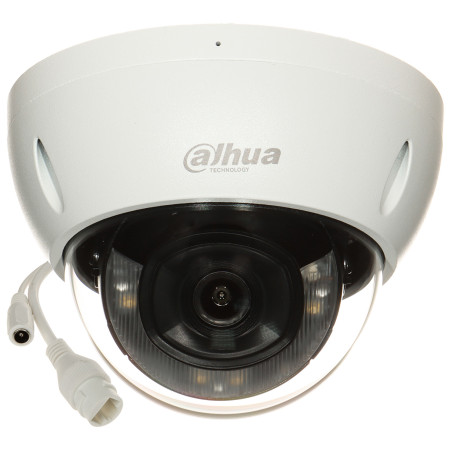

4K 8MPX IP Industrial Camera IR30m LED30m WizSense IVS WDR SMD+ IP67 IK10 Microphone SD Slot

Model: DAHUA IPC-HDBW2849E-S-IL-0280B

EAN: 6931240015803 SKU: 931015804

• High 4K Ultra HD resolution - 8.3 Mpx (3840 x 2160)
• Smart Dual Light technology - IR and LED range up to 30 meters
• Wide 110° viewing angle thanks to 2.8 mm fixed lens
• Intelligent IVS image analysis: intrusion, line crossing
• SMD Plus - advanced classification of humans and motor vehicles
• Built-in high-quality microphone and audio detection support
• WDR (120dB) - wide dynamic range providing details in shadows and bright light
• Vandal-proof IK10 housing and IP67 ingress protection class
• PoE (802.3af) or 12V DC power supply for easy installation
• Micro SD card slot with support for up to 256GB storage

Description

The Dahua IPC-HDBW2849E-S-IL-0280B IP camera is an advanced surveillance device from the WizSense series, offering the highest image quality in 4K Ultra HD (8.3 Mpx) resolution. Thanks to the innovative Smart Dual Illumination technology, the camera allows for intelligent night lighting management. The user can choose between a discreet infrared (IR) mode or an intense white LED light that activates automatically when an object is detected in the field of view, enabling color image recording at key moments. This solution significantly increases the effectiveness of identifying persons and vehicles after dark.

Specification

The product's advantages include advanced IVS analytics with object classification (human/vehicle) and the SMD Plus function, which eliminates false alarms caused by rain, leaves, or animals. Thanks to the support for modern Smart H.265+ compression, the camera allows for bandwidth reduction and memory savings on the storage medium while maintaining the highest clarity of recordings. Ideal for monitoring offices, homes, warehouses, and open areas where the highest detail and reliability are required 24 hours a day.

The camera features exceptional durability and reliability. A metal housing with IP67 ingress protection and IK10 mechanical resistance ensures protection against harsh weather conditions and vandalism attempts. The 2.8 mm wide-angle lens provides a 110-degree field of view, allowing for the monitoring of large areas using a single device. An additional advantage is the integrated microphone that allows for sound recording, and an audio detection function that enriches the system with an auditory layer.

Standard

IP

Sensor

1/2.7 " Progressive Scan CMOS

Resolution

3840 x 2160 (8.3 Mpx - 4K UHD), 3072 x 2048 (6 Mpx), 3072 x 1728 (5 Mpx), 2880 x 1620 (5 Mpx), 2688 x 1520 (4 Mpx), 2048 x 1536 (3 Mpx), 2304 x 1296 (3 Mpx), 1920 x 1080 (1080p)

Lens

2.8 mm, viewing angle 110° (horizontal), 58° (vertical)

Night lighting

Smart Dual Light: IR range up to 30 m, white LED range up to 30 m

Sensitivity

0.008 Lux / F1.6 (color), 0.0008 Lux (B/W), 0 Lux (IR/LED on)

Audio

Built-in microphone, audio detection, G.711 / G.723 / G.726 / AAC compression

Compression method

Smart H.265+ / H.265 / Smart H.264+ / H.264 / MJPEG

Memory slot

Micro SD card support up to 256GB

Intelligent IVS analysis

Intrusion (human and vehicle classification), line crossing (human and vehicle classification), video tampering detection, SMD PLUS

Selected image functions

WDR - 120 dB (Wide dynamic range), 3D-DNR (Noise reduction), ROI (Quality improvement of selected fragments), BLC/HLC (Light compensation), Mirror, Privacy masks (4), Motion detection (4 zones)

Network interface

10/100 Base-T (RJ-45), protocols: ONVIF (Profile S/G/T), CGI, P2P, SDK, API

Software

The free DMSS application available for Android and iOS (iPhone) systems is a professional tool for mobile video surveillance. The application allows for remote live view, playback of recordings from the memory card, and receiving real-time push alarm notifications. Thanks to P2P cloud support, connecting to the camera does not require complex router configuration or a static IP address. DMSS also enables two-way communication (if the device supports audio), taking photos, and recording video clips directly to the smartphone, making the monitoring system fully interactive and accessible from anywhere in the world.

Power supply and power consumption

PoE (802.3af) - ≤ 8.3 W, 12 V DC / 580 mA - ≤ 6.9 W

Construction and environment

Metal dome housing, white color, IP67 ingress protection, IK10 resistance class, Operating temperature: -40 °C ... 60 °C

Dimensions, Weight

Product dimensions: 110 x 110 x 81 mm (Depth x Width x Height)

Package dimensions: 155 x 155 x 135 mm (Depth x Width x Height)

Product weight: 360 g

Weight with packaging: 540 g
