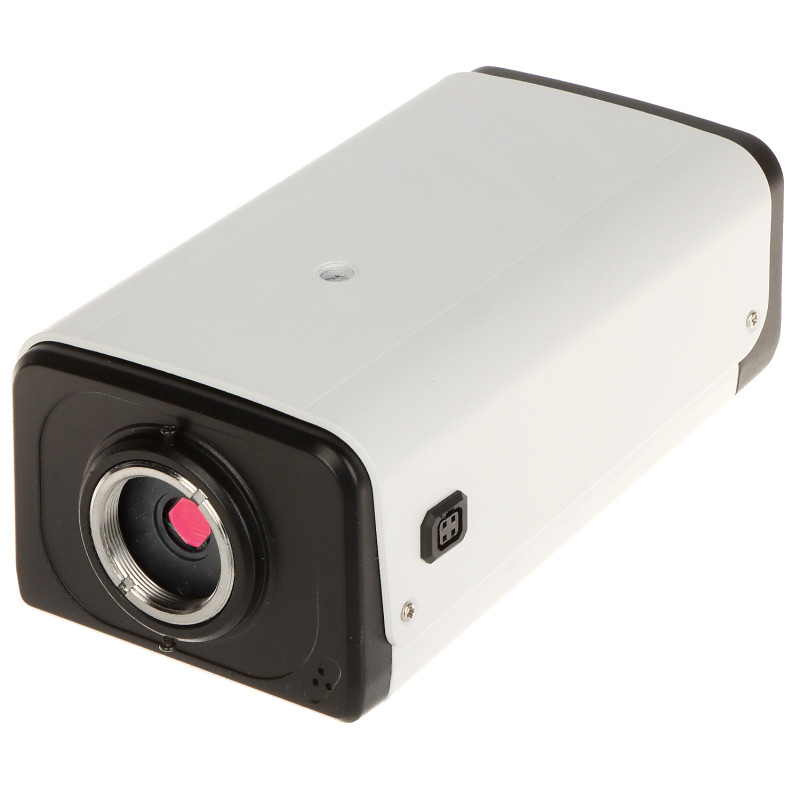

4K UHD 8.3MP 4-in-1 AHD CVI TVI PAL SONY Starvis WDR 3D-DNR BOX Camera APTI APTI-H54B
zł470.35
Tax included
The professional megapixel camera APTI-H54B is a highly advanced solution for video surveillance systems, combining traditional analog transmission with modern digital image quality. Equipped with a high-class 1/2.8 inch SONY Starvis Back-illuminated CMOS sensor, the camera generates images at an impressive 8.3 Megapixel resolution, which corresponds to the 4K UHD standard. This provides the user with access to extremely detailed recordings, enabling precise identification of people and events, which is crucial in security systems.
One of the greatest advantages of this model is its versatility and compatibility. The device operates in 4-in-1 technology, meaning it supports AHD, HD-CVI, HD-TVI, and classic PAL standards. This allows for seamless integration of the camera with almost any existing analog surveillance system. Switching the operating mode is quick and intuitive – it is done using buttons on the cable without the need for complex configuration in the recorder menu. The image transmitted via coaxial cable is free of latency and maintains its crystal clarity even over long transmission distances.
The APTI-H54B camera has been designed to operate in difficult lighting conditions. SONY Starvis technology ensures excellent sensitivity, and the mechanical ICR infrared filter guarantees true color reproduction during the day and optimal performance at night when using external IR illuminators. Additional features such as 3D-DNR digital noise reduction and WDR wide dynamic range ensure that the image remains legible even in high-contrast lighting. The solid metal BOX type housing ensures device durability and a professional installation appearance.
4K UHD 8.3MP 4-in-1 AHD CVI TVI PAL SONY Starvis WDR 3D-DNR BOX Camera
Model: APTI APTI-H54B
EAN: 6931240041864 SKU: 931041865
- SONY Starvis Back-illuminated CMOS 8.3 Mpx sensor
- 4K UHD (3840 x 2160) resolution for maximum detail
- 4-in-1 Standard: AHD / HD-CVI / HD-TVI / PAL
- WDR function - wide dynamic range
- 3D-DNR digital noise reduction
- Mechanical ICR infrared filter
- Solid metal BOX type housing
- Supports DC Auto Iris lenses
- No image transmission latency
- Easy standard switching via buttons
Description
The professional megapixel camera APTI-H54B is a highly advanced solution for video surveillance systems, combining traditional analog transmission with modern digital image quality. Equipped with a high-class 1/2.8 inch SONY Starvis Back-illuminated CMOS sensor, the camera generates images at an impressive 8.3 Megapixel resolution, which corresponds to the 4K UHD standard. This provides the user with access to extremely detailed recordings, enabling precise identification of people and events, which is crucial in security systems.
One of the greatest advantages of this model is its versatility and compatibility. The device operates in 4-in-1 technology, meaning it supports AHD, HD-CVI, HD-TVI, and classic PAL standards. This allows for seamless integration of the camera with almost any existing analog surveillance system. Switching the operating mode is quick and intuitive – it is done using buttons on the cable without the need for complex configuration in the recorder menu. The image transmitted via coaxial cable is free of latency and maintains its crystal clarity even over long transmission distances.
The APTI-H54B camera has been designed to operate in difficult lighting conditions. SONY Starvis technology ensures excellent sensitivity, and the mechanical ICR infrared filter guarantees true color reproduction during the day and optimal performance at night when using external IR illuminators. Additional features such as 3D-DNR digital noise reduction and WDR wide dynamic range ensure that the image remains legible even in high-contrast lighting. The solid metal BOX type housing ensures device durability and a professional installation appearance.
Specification
Standard
AHD, HD-CVI, HD-TVI, PAL
Sensor
1/2.8 " SONY Starvis™ Back-illuminated CMOS
Matrix size
8.3 Mpx
Resolution
3840 x 2160 - 8.3 Mpx, 4K UHD @ 12.5/15 fps; 2592 x 1944 - 5 Mpx @ 12.5/20 fps; 2560 x 1440 - 4 Mpx @ 25/30 fps; 1920 x 1080 - 1080p @ 25/30 fps; 960 x 576 - 960H @ CVBS
Video output
1 Vpp / 75 Ω, AHD, HD-CVI, HD-TVI, PAL - selectable via buttons on cable
Auto Iris connector
Supports DC-controlled iris lenses
Sensitivity
0.001 Lux @ F1.2
IR illuminator compatibility
ICR - Mechanical infrared filter for improved night visibility
Selected image features
WDR - Wide Dynamic Range (improved shadow visibility), 3D-DNR - Digital Noise Reduction, WB - Automatic White Balance, AGC - Automatic Gain Control, Sharpness - Image contour sharpening
Power supply
12 V DC / 150 mA
Power consumption
≤ 1.8 W
Housing
BOX, Metal, White + Black color
Operating temperature
-20 °C ... 60 °C
Supported languages
English, Spanish, Portuguese
Warranty
2 years
OSD software
The camera features a built-in OSD (On-Screen Display) menu, which allows for advanced image parameter configuration directly by the installer. This interface enables precise adjustment of exposure time, white balance, noise reduction level, and image dynamics functions. The menu is controlled using a joystick located on the signal cable, eliminating the need for external controllers. Thanks to this, the user can optimize the camera for specific conditions present at the mounting location, such as artificial lighting or strong sun contrasts.
Contents
1x BOX camera
1x User manual
Dimensions, Weight
Product dimensions: 82 x 149 x 58 mm (D x W x H)
Package dimensions: 120 x 220 x 100 mm (D x W x H)
Product weight: 540 g
Weight including packaging: 750 g
