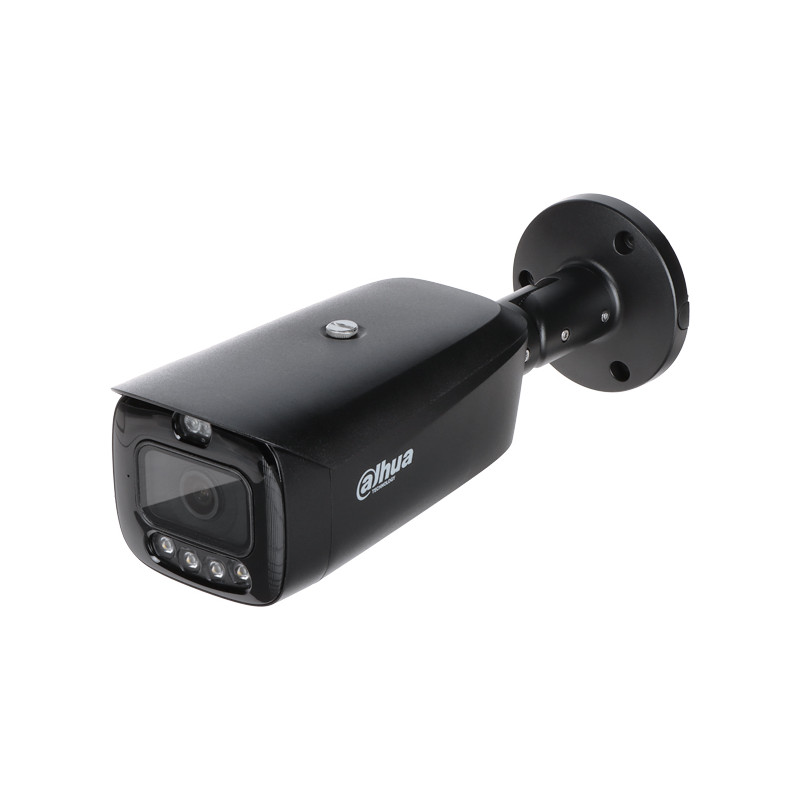

TiOC WizSense Full-Color 8.3 Mpx 4K UHD 2.8mm IP Camera with IR LED Active Deterrence and 24/7 Color Image

Model: DAHUA IPC-HFW3849T1-AS-PV-0280B-PRO-BLACK

EAN: 6931240066652 SKU: 931066656

• High resolution 8.3 Mpx 4K UHD for crystal clear images
• Full-Color technology allowing for 24/7 color monitoring
• Active visual and audio deterrence: siren and flashing red and blue light
• Intelligent WizSense image analysis: human and vehicle classification (SMD 4.0)
• Two-way audio communication via built-in dual microphones and speaker
• Efficient AI H.265+ compression saving memory card and disk space
• Weather resistance with IP67 ingress protection rating and metal housing
• Wide 109° viewing angle for better coverage of the monitored area
• White light and infrared illuminator range up to 50 meters
• Support for microSD cards up to 512GB

Description

The DAHUA IPC-HFW3849T1-AS-PV-0280B-PRO-BLACK IP camera is an advanced solution from the TiOC (Three-in-One Camera) series that revolutionizes video surveillance. The device combines three key technologies: Full-Color, WizSense, and Active Deterrence. Thanks to Full-Color technology, the camera delivers bright, color images around the clock, even in total darkness, allowing for significantly better identification of people and vehicles compared to traditional black-and-white cameras. The 8.3 Mpx 4K UHD resolution guarantees remarkable detail and sharpness of the recorded image.

Specification

Standard: IP; Resolution: 3840 x 2160 px - 8.3 Mpx 4K UHD; Transmission rate: 25 fps @ 8 Mpx; Supported resolutions: 8.3 Mpx, 5.7 Mpx, 5 Mpx, 4 Mpx, 3.7 Mpx, 3 Mpx, 1080p, 720p.

The biggest advantage of this model is the Active Deterrence function. Upon detecting an intruder using intelligent AI algorithms, the camera triggers a built-in alarm siren and flashing red-and-blue lights, which effectively discourages break-ins. WizSense functions use artificial intelligence for precise object classification (humans and vehicles), minimizing false alarms caused by animals or leaves.

The camera is designed for maximum functionality. It is equipped with two built-in microphones and a speaker, enabling two-way audio communication. A wide viewing angle of 109 degrees allows for monitoring large areas with a single camera. A robust metal housing with an IP67 rating ensures failure-free operation in the harshest weather conditions, from heavy rain to extreme temperatures ranging from -40 to 60 degrees Celsius. It is an ideal choice for those looking for uncompromising security and modern technology in one device.

Sensor: 1/1.8 " Progressive Scan CMOS; Lens: 2.8 mm; Angle of view: 109 °; Sensitivity: 0.004 Lux / F1.0 (color).

Standard and Resolution

IR illuminator range: 50 m; White light (LED) illuminator range: 50 m; Night mode: Full Color (24/7 color image).

Sensor and Lens

Audio: 2x Built-in microphone, Built-in speaker, Audio Input/Output, Two-way audio; Alarms: 1 input / 1 output; Sound detection: Yes.

Night Illumination

Compression method: AI H.265 / H.265+ / H.265 / AI H.264 / H.264+ / H.264; Memory card slot: Micro SD support up to 512GB.

Audio and Alarms

Interface: 10/100 Base-T (RJ-45); ONVIF protocol: Yes; Default IP address: 192.168.1.108; Ports: 80, 37777; RTSP URL: Yes.

Compression and Recording

WizSense: Tripwire and intrusion (human/vehicle classification), Video tampering detection, Scene change, AcuPick, AI SSA (scene self-adaptation), SMD 4.0 (increased false alarm resistance).

Network Interface

Active deterrence function: Flashing red and blue LEDs (configurable), Siren sound (3 volume levels), Light and sound alarm.

Intelligent Image Analysis (AI)

WDR - 120 dB (Wide Dynamic Range), 3D-DNR (Noise reduction), ROI (Region of Interest), F-DNR (Defog), BLC/HLC (Light compensation), SSA, WB, AGC, Motion detection (4 zones), Privacy zones (4), Rotation and mirroring.

Active Deterrence

The DMSS (Digital Mobile Surveillance System) application is a professional mobile tool by Dahua for Android and iOS systems. It enables remote real-time viewing via the P2P cloud without the need for a static IP address. The software supports advanced AI event push notifications, remote playback of SD card recordings, and full two-way audio communication. For the TiOC series, the application allows for manual activation/deactivation of the siren and warning lights, as well as management of intelligent detection settings. The interface is intuitive and allows for managing multiple surveillance systems from one user account.

Selected Image Functions

Power supply: PoE (802.3af) or 12 V DC / 980 mA; Power consumption: ≤ 15.1 W @ PoE, ≤ 11.8 W @ 12 V.

DMSS Software

Housing: Compact - Metal; Color: Black; Ingress protection: IP67; Operating temperature: -40 °C ... 60 °C.

Power Supply and Consumption

Dimensions: 289 x 94 x 85 mm; Weight: 1.04 kg.

Construction and Environment

WEB Server: Built-in; Supported languages: Polish, English, Czech, French, Spanish, Dutch, German, Russian, Portuguese, Romanian, Ukrainian, Hungarian, Italian.

Physical Data

1x IP Camera

1x Mounting kit

1x Quick start guide

Operation and Languages

Dimensions, Weight

Product dimensions: 289 x 94 x 85 mm (D x W x H)

Packaging dimensions: 110 x 320 x 120 mm (D x W x H)

Product weight: 1040 g

Weight with packaging: 1350 g

Zum Download

• CE Declaration
• SAFETY COMPLIANCE
