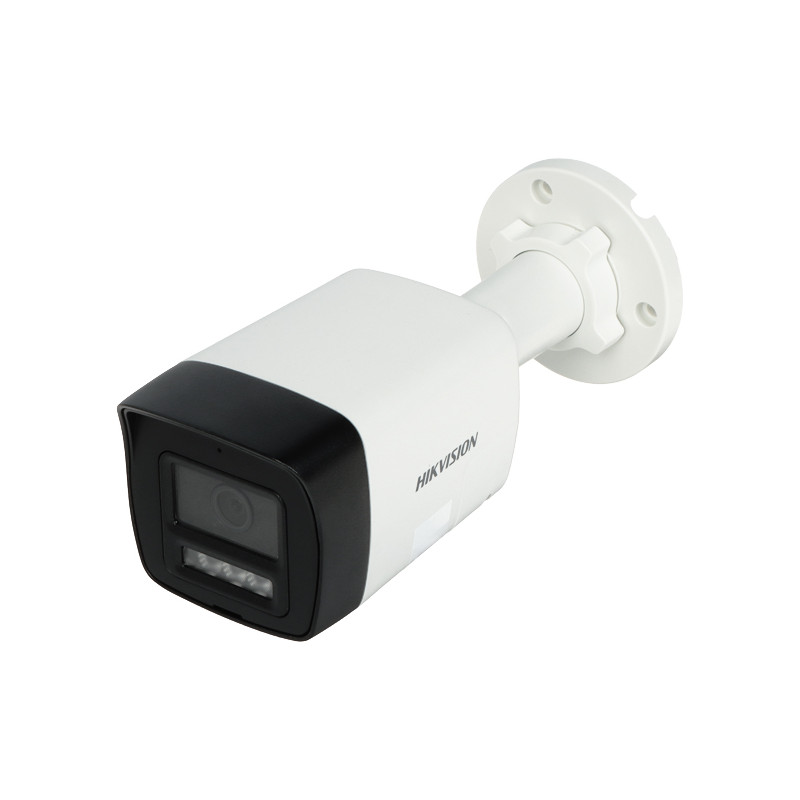

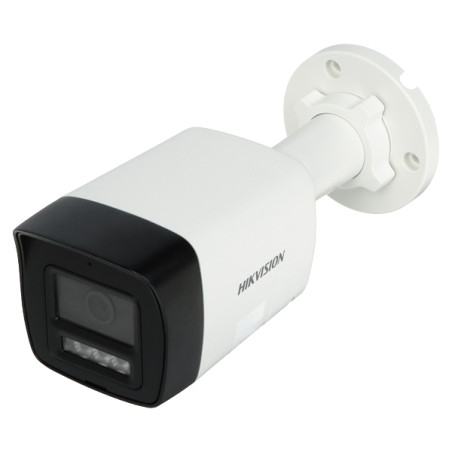

Intelligent 8Mpx 4K UHD Smart Hybrid Light IP67 Audio IR LED Wide Dynamic Range Camera

Model: Hikvision DS-2CD1083G2-LIUF/SL(2.8MM)EN

EAN: 6931240070512 SKU: 931070516

• 8 MPx 4K UHD (3840 x 2160) resolution for maximum image detail
• Smart Hybrid Light technology - intelligent switching between IR and white LED illumination
• Built-in microphone and speaker enabling two-way audio transmission and audible alarms
• Intelligent motion detection with precise human and vehicle classification (false alarm reduction)
• 120 dB WDR (Wide Dynamic Range) for excellent visibility in high-contrast scenes
• Support for Micro SD memory cards up to 512GB for local data storage
• IP67 ingress protection rating for full water and dust resistance
• Power supply via PoE (802.3af) or standard 12V DC

Description

The modern Hikvision DS-2CD1083G2-LIUF/SL IP camera is an advanced monitoring solution that offers crystal-clear images in 8 MPx 4K UHD resolution. The device has been designed with the highest level of security in mind, combining efficient H.265+ compression with innovative Smart Hybrid Light technology. This allows the user to benefit from traditional infrared (IR) lighting or white LED light, which activates automatically upon object detection, allowing for color image recording at key moments.

Specification

Standard: IP; Sensor: 1/2.7" Progressive Scan CMOS

3840 x 2160 - 8 Mpx 4K UHD, 3200 x 1800 - 6 Mpx, 2688 x 1520 - 4 Mpx, 1920 x 1080 - 1080p, 1280 x 720 - 720p

Standard and Sensor

Lens: 2.8 mm; Viewing angle: 113°

Image Resolution

White light illumination range (LED): 30 m; IR illumination range: 30 m; Smart Hybrid Light mode

Optics and Viewing Angle

Compression method: H.265+ / H.265 / H.264+ / H.264 / MJPEG; Main stream speed: 12.5 fps @ 8 Mpx

Night Illumination

Built-in microphone and speaker; Two-way audio support; Audio transmission over network; AAC compatibility; Noise and echo reduction

Compression and Streams

10/100 Base-T (RJ-45); ONVIF: Yes; Max. 6 online users; Built-in WEB Server

Audio

WDR - 120 dB (Wide Dynamic Range), 3D-DNR (Digital Noise Reduction), ROI (Region of Interest), BLC (Backlight Compensation), HLC (Highlight Compensation), AGC (Automatic Gain Control), Mirror, Sharpness, White balance: Automatic

Network Interface

Motion detection with human and vehicle classification; Light and sound alarm upon event detection

Image Functions

The Hik-Connect mobile application is a comprehensive tool for remote system management from Android and iOS devices. It enables live viewing, recording playback, push notifications for alarm events, and two-way communication. The system supports cloud access (P2P), which eliminates the need for a public IP address. For PC users, dedicated iVMS-4200 software is available, allowing for advanced configuration, management of multiple devices simultaneously, and professional monitoring on large screens. The web interface is available on port 80, and applications use port 8000.

Intelligent Analysis

Memory card slot: Support for Micro SD cards up to 512GB; RTSP protocols for main and auxiliary streams

Software and Access

Power supply: PoE (802.3af), 12 V DC / 660 mA; Power consumption: ≤ 9.5 W @ PoE, ≤ 8 W @ 12 V DC

Memory and Recording

Housing: Compact - Metal + Plastic; Color: White; Ingress protection: IP67; Operating temperature: -30 °C ... 60 °C

Power Supply and Consumption

Default IP address: 192.168.1.64; Default login: admin; Supported languages: English; Warranty: 3 years

Construction

1x Hikvision IP Camera

1x Quick start guide

1x Mounting kit (plugs and screws)

1x Drill template

Additional Data

Dimensions, Weight

Product dimensions: 179 x 67 x 69 mm (D x W x H)

Packaging dimensions: 215 x 120 x 120 mm (D x W x H)

Product weight: 320 g

Weight with packaging: 430 g

Zum Download

• CE Declaration
• SAFETY COMPLIANCE
