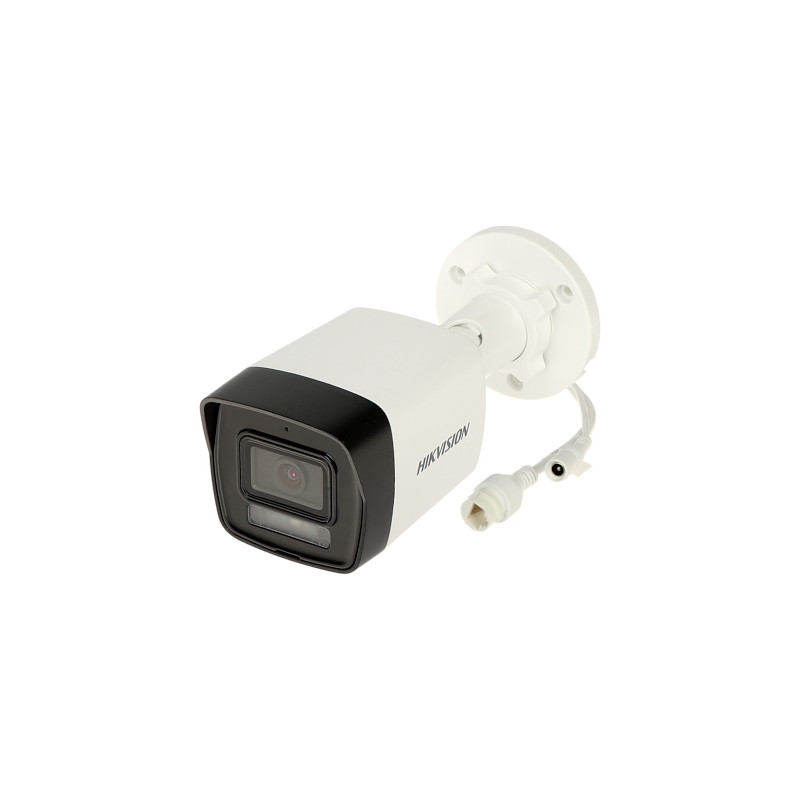

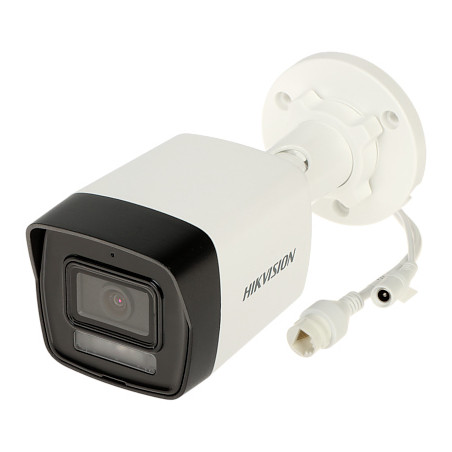

4MP Smart Hybrid Light IP Camera IR LED 30m WDR Microphone IP67 Housing

Model: Hikvision DS-2CD1043G2-LIU(2.8MM)PL

EAN: 6931240039038 SKU: 931039030

• High 4 MP resolution (2560 x 1440) for detailed images
• Smart Hybrid Light technology with range up to 30 meters (IR and LED)
• Intelligent motion detection with human and vehicle classification
• WDR 120 dB – Wide Dynamic Range for challenging lighting conditions
• Built-in microphone with advanced noise and echo reduction
• Modern H.265+ compression support for disk space efficiency
• Weather-resistant housing with IP67 ingress protection rating
• PoE (802.3af) or 12V DC power supply for flexible installation
• Image enhancement features: 3D-DNR, ROI, BLC, HLC and Anti-Flicker
• Remote access via free Hik-Connect app (Android/iOS)

Description

The modern Hikvision DS-2CD1043G2-LIU(2.8MM)PL IP camera is an advanced surveillance device that redefines night monitoring standards through innovative Smart Hybrid Light technology. Equipped with a 4 MP (2560 x 1440) resolution sensor, it delivers crystal-clear images while retaining the smallest details, which is crucial for identifying individuals and events. The primary advantage of this model is the intelligent hybrid lighting system, which allows operation in three modes: traditional infrared (IR), discreet white light (LED), or automatic mode. In Smart mode, the camera uses infrared until it detects human or vehicle motion, at which point it immediately switches to white light, capturing high-contrast color video that serves as powerful evidence.

Specification

System: IP; Maximum resolution: 2560 x 1440 (3.7 Mpx); Supported resolutions: 2560x1440, 1920x1080 (1080p), 1280x720 (720p); Frame rate: 20 fps @ 4Mpx, 25 fps @ 1080p.

The camera is designed for reliability in harsh weather conditions, confirmed by an IP67 rating, ensuring full dust tightness and resistance to heavy rain. Integration with PoE (Power over Ethernet) significantly simplifies the installation process, allowing data and power transmission via a single network cable. An additional benefit is the built-in microphone with noise reduction functionality, which enriches the video footage with an audio layer, providing a more complete context of the monitored scene. Thanks to support for modern H.265+ codecs, the device optimizes storage space usage while maintaining the highest recording quality. It is an ideal solution for those seeking an intelligent, rugged, and multifunctional property protection system.

Sensor: 1/3 " Progressive Scan CMOS; Lens: fixed 2.8 mm; Field of view: 98° (horizontal per manufacturer data), 93° (based on practical tests); Minimum illumination: Color and B/W mode supported by hybrid.

Standard and Resolution

Technology: Smart Hybrid Light (IR Mode, White Light Mode, Smart Mode); IR illumination range: up to 30 m; LED illumination range (white light): up to 30 m; Automatic switching upon intruder detection.

Sensor and Optics

Compression methods: H.265+, H.265, H.264+, H.264, MJPEG; Main and sub-stream support; RTSP URL available for both streams via authentication.

Night Illumination

WDR (120 dB): Wide Dynamic Range; 3D-DNR: Digital Noise Reduction; ROI: Enhancement of selected areas; BLC/HLC: Backlight and Highlight Compensation; AGC: Automatic Gain Control; Mirror: Mirror image; Sharpness: Contour sharpening.

Compression and Streams

Audio: Built-in microphone; Audio functions: Noise and echo reduction, audio transmission over network; Compliance: AAC standard; Network interface: 10/100 Base-T (RJ-45).

Image Functions

Free Hik-Connect mobile app available for Android (Hikvision App Store) and iOS (Apple App Store) allows for full remote preview, device configuration, receiving push notifications upon motion detection, and access via P2P cloud without the need for a static IP address. iVMS-4200 PC software allows for advanced system management, multi-camera preview, and recording archival. Built-in WEB Server allows access via a browser (default port 80). ONVIF standard compliance guarantees interoperability with third-party recorders.

Audio and Interface

Motion detection: Intelligent analysis with distinction between human and vehicle silhouettes (Motion Detection 2.0); Configurable privacy zones; Tampering alarms.

Software and Access

Power supply: PoE (802.3af) or 12 V DC / 420 mA; Power consumption: ≤ 6.5 W with PoE, ≤ 5 W with 12V DC.

Intelligent Analysis

Operating temperature: -30 °C to 60 °C; Ingress protection: IP67 (water and dust resistant); Housing: Compact type (bullet), made of metal and high-quality plastic; Color: White.

Power and Consumption

Default IP address: 192.168.1.64; Default login: admin (password set at first startup); Ports: 80 (WWW), 8000 (app), 554 (RTSP); Maximum number of online users: 6.

Operating Conditions and Build

Security: User password, privacy masks, IP address filtering; CE Declaration of Conformity; SAP Code: 311327287.

Network Parameters

Net weight: 280g; Device dimensions: 171 x 66 x 69 mm; Gross weight (with packaging): 430g; Packaging dimensions: 215 x 120 x 120 mm.

Security and Certificates

Warranty period: 3 years (36 months) from the date of purchase.

Logistic Dimensions

1x Hikvision DS-2CD1043G2-LIU IP Camera

1x Mounting kit (plugs, screws)

1x Drill template

1x RJ-45 connector cover

1x User manual

Warranty

Dimensions, Weight

Product dimensions: 171 x 66 x 69 mm (D x W x H)

Package dimensions: 215 x 120 x 120 mm (D x W x H)

Product weight: 280 g

Gross weight: 430 g

Zum Download

• CE Declaration
• SAFETY COMPLIANCE
