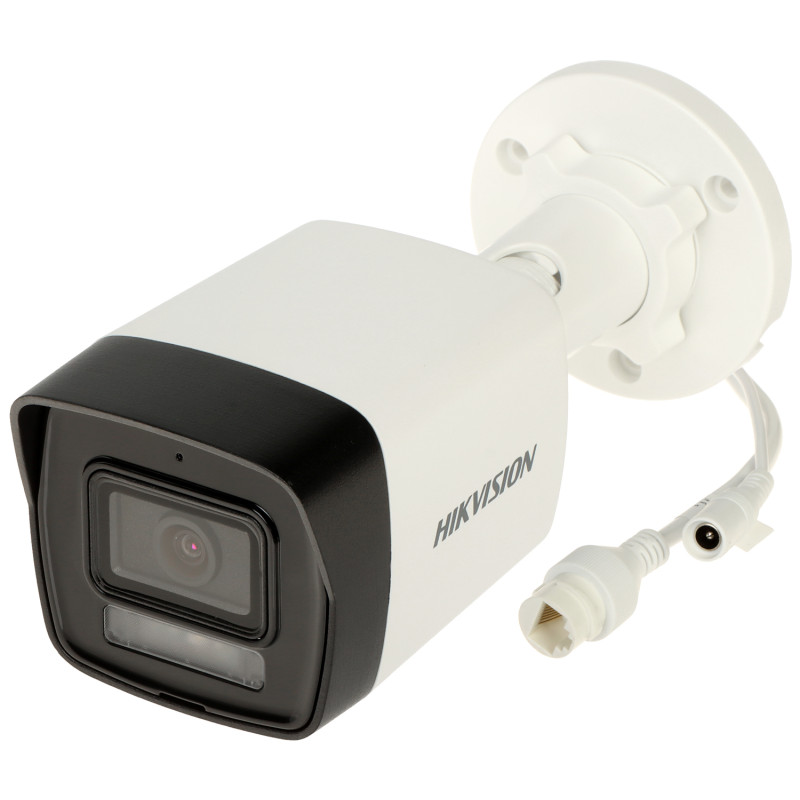

Smart Hybrid Light Bullet IP Camera 3.7 Mpx WDR IR LED Audio IP67 Human Vehicle Detection

Model: Hikvision DS-2CD1041G2-LIU(2.8MM)PL

EAN: 6931240072943 SKU: 931072945

• High 3.7 Mpx resolution (2560 x 1440) for detailed images
• Smart Hybrid Light technology: intelligent selection between IR illumination and white LED light
• LED illuminator range up to 40 meters and IR infrared range up to 15 meters
• Built-in microphone with network audio transmission and noise reduction
• Wide Dynamic Range (WDR) 120 dB for better visibility in difficult lighting conditions
• Intelligent motion detection with human and vehicle classification
• IP67 ingress protection rating for weather resistance
• PoE power (802.3af) or 12V DC for easier installation
• Support for efficient H.265+ / H.264+ compression
• Full compatibility with the Hik-Connect application (Android/iOS) and iVMS-4200 software

Description

The DS-2CD1041G2-LIU IP camera is a technologically advanced device designed for professional video surveillance systems, combining exceptional 3.7 Mpx (2560 x 1440 pixel) image precision with modern night lighting solutions. The main advantage of this model is the innovative Smart Hybrid Light technology, which offers the user three operating modes: classic IR infrared with a range of up to 15 meters, intense white LED light with a range of up to 40 meters, and a hybrid mode. In the latter, the camera uses discreet infrared until an intruder is detected - at which point it automatically activates LED illumination, allowing for the recording of a detailed, color image of faces or license plates, while simultaneously serving a preventive function through visible recording warnings.

Specification

The camera's advantages also include ease of installation thanks to PoE (Power over Ethernet) support, which enables data and power transmission via a single network cable. A solid housing with an IP67 protection rating guarantees trouble-free operation in harsh external conditions, protecting the electronics from rain, snow, and dust. Additional features such as ROI (Region of Interest) allow for resource saving by prioritizing the quality of the most important parts of the frame, while intelligent motion detection with human and vehicle distinction eliminates false alarms caused by, for example, swaying trees or rain. This is a complete tool for securing a home, office, or property, offering durability, intelligent analytics, and the highest image quality around the clock.

The device is equipped with efficient H.265+ and H.264+ codecs, which significantly reduce bandwidth and disk space requirements without negatively affecting the sharpness and detail of recordings. An integrated microphone with advanced ambient noise reduction allows for clear audio recording, which, combined with the 120dB WDR (Wide Dynamic Range) function, makes the camera excellent for locations with high lighting contrast, such as building entrances or underground parking lots.

Standard

IP

Resolution

2560 x 1440 - 3.7 Mpx, 1920 x 1080 - 1080p, 1280 x 720 - 720p

Sensor

1/2.8 " Progressive Scan CMOS

Lens

2.8 mm; Viewing angle: 104 °

Illumination

Smart Hybrid Light; LED range: 40 m; IR range: 15 m

Image compression

H.265+ / H.265 / H.264+ / H.264 / MJPEG

Audio

Built-in microphone; Network audio transmission; AAC compatibility; Noise and echo reduction

Transmission speed

20 fps @ 3.7 Mpx; 25 fps @ 1080p

Network

Interface: 10/100 Base-T (RJ-45); WEB Server: Built-in; ONVIF: Yes; Ports: 80, 8000; RTSP URL supported

Remote access

Cloud (P2P); Hik-Connect mobile application; iVMS-4200 PC application; Supports up to 6 online users

Selected image features

WDR - 120 dB (Wide Dynamic Range), 3D-DNR (Digital Noise Reduction), ROI (Region of Interest), Anti-Flicker, BLC (Backlight Compensation), HLC (High Light Compensation), AGC, Mirror, Sharpness

Analytics and Detection

Intelligent motion detection with human and vehicle distinction; Configurable privacy zones

Software (Details)

The monitoring system based on this model uses full support from the Hik-Connect application, available for free on Android and iOS mobile platforms. This application revolutionizes access to monitoring by offering seamless connection via P2P cloud, eliminating complex router port forwarding configuration. The user gets access to live preview from anywhere in the world, the ability to instantly play back archived recordings, and an intelligent push notification system that informs about motion detection or zone violation. For system administrators, the iVMS-4200 software for Windows and macOS has been prepared. This is a powerful CMS (Central Management System) tool that allows managing multiple Hikvision devices from one location. The program offers advanced configuration features, disk status monitoring, object map creation, and user and permission management. The camera's built-in web server allows for full administration from any modern web browser, offering access to the most detailed image processing parameters and network settings.

Construction

Housing: Compact - Metal + Plastic; Color: White; Protection class: IP67; Operating temperature: -30 °C ... 60 °C

Power and Consumption

Power supply: PoE (802.3af), 12 V DC / 420 mA; Power consumption: ≤ 6.5 W @ PoE, ≤ 5 W @ 12 V DC

Dimensions, Weight

Product dimensions: 171 x 70 x 70 mm (Depth x Width x Height)

Packaging dimensions: 215 x 120 x 120 mm (Depth x Width x Height)

Product weight: 270 g

Weight with packaging: 430 g
