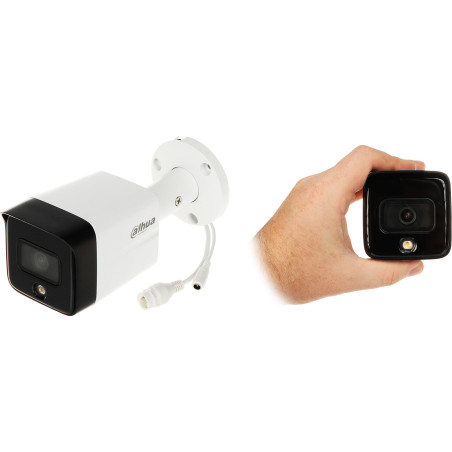

6MP IP Camera 3.6mm Smart Dual Light LED IR Outdoor Night Vision PoE

Model: DAHUA IPC-HFW1639TC-A-IL-0360B-S6

EAN: 6931240048320 SKU: 931048321

• High resolution 6 MP (3200 x 1800) for crystal clear image
• Smart Dual Light technology - intelligent switching between IR and LED
• Night illuminator range up to 30 meters (both IR and LED)
• Built-in microphone for ambient sound recording
• Intelligent image analysis with human detection function
• Support for modern H.265+ / H.264+ compression codecs
• Metal housing with high IP67 ingress protection rating
• PoE power supply (802.3af) or traditional 12V DC

Description

The DAHUA IPC-HFW1639TC-A-IL-0360B-S6 IP camera is an advanced video surveillance tool that combines high 6-megapixel resolution with innovative lighting technology. A key advantage of this model is the Smart Dual Light system. It allows for intelligent switching between discreet infrared (IR) lighting and bright white light (LED). In smart mode, the camera uses infrared until it detects an intruder, at which point it automatically activates the LED diodes, allowing for the recording of high-detail color images that facilitate the identification of people or vehicles. This solution not only improves security but also acts as a deterrent.

Specification

The camera is extremely easy to install thanks to PoE (Power over Ethernet) support, which allows for signal and power transmission using a single Ethernet cable. An integrated microphone allows for sound recording, which significantly increases the evidentiary value of the recordings. Additionally, intelligent image analysis focused on human detection minimizes the number of false alarms, sending notifications only in case of a real threat. This is an ideal solution for homes, offices, and industrial facilities requiring reliable 24/7 surveillance.

The device offers exceptional image quality thanks to its modern 1/2.7" CMOS Progressive Scan sensor. A wide viewing angle of 91 degrees allows for the monitoring of vast areas using a single camera. Thanks to support for efficient H.265+ and H.264+ codecs, the user gains significant hard drive space savings on the recorder and lower network load while maintaining crystal clear recordings. The solid metal housing with an IP67 ingress protection rating guarantees reliable operation in the toughest atmospheric conditions, from freezing temperatures to heavy rain.

Standard and Sensor

Standard: IP; Sensor: 1/2.7 " Progressive Scan CMOS

Resolution

3200 x 1800 - 6 MP, 2880 x 1620 - 4.7 MP, 2688 x 1520 - 4 MP, 2048 x 1536 - 3 MP, 2304 x 1296 - 3 MP, 1920 x 1080 - 1080p, 1280 x 960 - 1.3 MP, 1280 x 720 - 720p

Optics

Lens: 3.6 mm; Viewing angle: 91 °

Night Illumination

Smart Dual Light; IR illuminator range: 30 m; White light (LED) illuminator range: 30 m

Audio

Built-in microphone, Audio transmission over network, Sound detection

Compression and Transmission

Image compression method: H.265+ / H.265 / H.264+ / H.264 / MJPEG; Main stream transmission speed: 20 fps @ 6 MP, 25 fps @ 4 MP

Network

Network interface: 10/100 Base-T (RJ-45); Protocols: ONVIF; WEB Server: Built-in; Max. number of on-line users: 6; Default IP address: 192.168.1.108

Mobile and PC Access

Access port: 37777 or cloud (P2P); Android: Free DMSS app; iOS: Free DMSS app; RTSP URL: rtsp://admin:password@192.168.1.108:554/cam/realmonitor

Intelligent Analysis

Intelligent image analysis: Human detection; Motion detection: max. 4 configurable zones

Image Functions

D-WDR - Wide Dynamic Range, 3D-DNR - Digital Noise Reduction, ROI - region of interest enhancement, BLC/HLC - Backlight / High Light Compensation, Image rotation and mirroring, Privacy zones - max. 4

Software

The device supports the free DMSS application (Android/iOS), which allows for live preview, playback of recordings, and receiving Push notifications. The built-in WEB Server allows for full configuration via a browser (ports 80, 37777). The Web 5.0 interface offers an intuitive menu for managing image parameters and AI functions. The system supports multiple languages, including Polish, English, and German.

Power Supply and Consumption

Power supply: PoE (802.3af), 12 V DC / 330 mA; Power consumption: ≤ 4 W @ 12 V DC, ≤ 5.3 W @ PoE

Construction and Environment

Housing: Compact - Metal; Color: White + Black; Ingress protection: IP67; Operating temperature: -40 °C ... 60 °C

Physical Parameters

Weight: 0.44 kg; Dimensions: 173 x 70 x 70 mm

Dimensions, Weight

Product dimensions: 173 x 70 x 70 mm (D x W x H)

Package dimensions: 205 x 105 x 95 mm (D x W x H)

Product weight: 440 g

Weight with packaging: 562 g

Zum Download

• CE Declaration
• SAFETY COMPLIANCE
