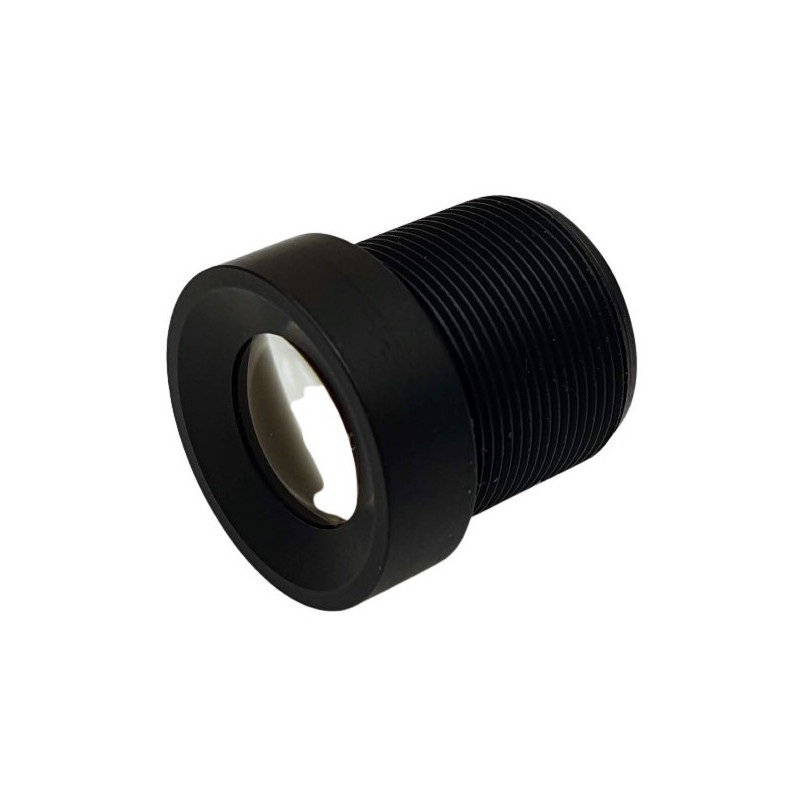

M12 S-MOUNT 12mm 2MP Megapixel Lens for CCTV Board Cameras Glass

Model: ACTii AC1220

EAN: 6931240012208 SKU: 1220415649

• High quality 8mm 2MP glass lens designed for Megapixel CCTV and analog cameras up to 2MP.
• Lens mount: M12x0.5 (11.9mm thread, board cameras)

Description

The lens is made of high-quality glass and metal components.

Lens for megapixel and analog cameras: HD 2MP. The lens can also be used in low-resolution analog cameras

Lens for cameras up to 2MP correctly captures sharpness in the corners of the image (when using a lens not intended for MP cameras, sharpness is correct only in the center of the image)

Specification

Lens parameters

Lens focal length: fixed, 8mm, 1/2.7"

Viewing angle for 1/2.7 sensor: 25°

Aperture: F2.0

Lens type

Lens for cameras up to 2MP Megapixel and analog cameras up to 2MP

Lens for CCTV board industrial cameras

Mount

M12x0.5

S-MOUNT

Thread: 11.9mm

Board cameras

Material

Housing: Metal

Optics: Glass

Additional accessories

In stronger sunlight, for correct color reproduction, it is worth considering installing an additional IR 650 filter. The filter is glued to the back of the lens. The filter is available in our offer model: ACTii AC6508

Kit contents

Lens

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 14 x 14 x 15 mm (D x W x H)

Packaging dimensions: 50 x 60 x 25 mm (D x W x H)

Product weight: 4 g

Weight with packaging: 4 g

Zum Download

• User Manual
• CE Declaration
• SAFETY COMPLIANCE
