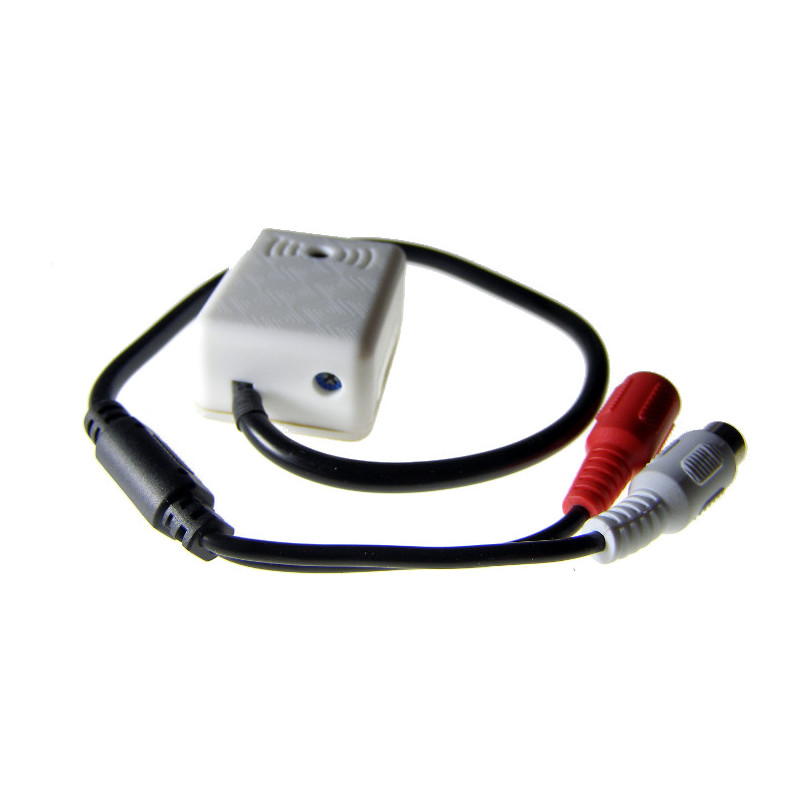

Microphone, Audio module for CCTV camera, Gain control

Model: ACTii AC1005

EAN: 6931240010051 SKU: 1005897979

• High sensitivity
• The microphone is designed for monitoring environmental sounds, specifically for security surveillance applications.
• The device features an installation potentiometer for gain adjustment.

Description

The microphone is designed for monitoring environmental sounds, specifically for security surveillance applications.

The device features an installation potentiometer for gain adjustment.

Specification

Parameters

Gain adjustment: 1x-500x

Acceptable power supply: 6-12V

Frequency range: 200 - 10kHz

Captured loudness: 2.5dB

Power supply

Current consumption: 12mA

Cable length: 30cm

Power jack for 2.1/5.5 cable

Set contents

Microphone

Packaging

Manual

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 19 x 30 x 38 mm (D x W x H)

Package dimensions: 60 x 60 x 30 mm (D x W x H)

Product weight: 20 g

Weight including packaging: 41 g

Zum Download

• User Manual
• CE Declaration
• SAFETY COMPLIANCE
