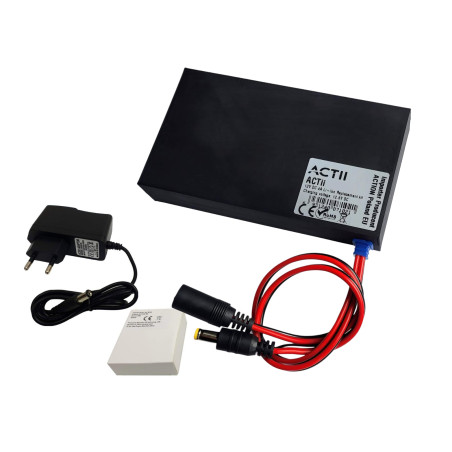

12V 5500mAh Li-Ion UPS Backup Battery for CCTV AHD IP DVI TVI Cameras in case of power failure + Charger

Model: ACTii AC2686

EAN: 6931240026861 SKU: 268658107

• 12V Li-Ion 5500mAh battery. Li-Ion batteries are characterized by the longest service life and charging efficiency of up to 97%
• Included 1A 12.6V charger
• Battery with electronic circuit controlling optimal charging
• Possibility of continuous connection of the battery to the charger and the powered device to the battery
• Li-Ion cells: type: 18650, quantity: 6 pcs.
• Solid ABS housing, high-quality connectors
• Made in EU

Description

12V Li-Ion UPS Battery - Professional backup power supply for 12V systems.

High-performance 12V Li-Ion battery dedicated as a reliable UPS backup power source for monitoring systems (IP, AHD, TVI, DVI, CVBS cameras) and other 12V devices (routers, DVR/NVR recorders, controllers).

Advanced energy management system: Built-in charging controller optimizes the charging process and provides protection against battery overcharging. The included charger enables continuous (pass-through) operation mode, eliminating the need to disconnect the battery. The UPS function guarantees immediate switching to battery power in the event of a mains voltage failure.

Cell specification: Li-Ion 18650 cells, 6 pcs, 3S2P configuration.

Manufacturer: Only branded manufacturers: Panasonic, LG or Samsung.

Estimated runtime: Up to 30 hours of continuous camera operation (depending on power consumption).

Specification

Parameters

Rated voltage: 12 V

Input voltage: 12.6 V

Output voltage: 9V-12.6V

Battery capacity for voltage: 12V - 5500mAh (5.5Ah), for 3.7V - 16500mAh (16.5Ah)

Li-Ion cells: YES, type: 18650, quantity: 6 pcs. Model: Panasonic, LG or Samsung

Protection: overload, over-discharge, overcurrent, short-circuit protection function.

Battery discharge requirements:

Maximum instantaneous current: 8A

Maximum operating current: 4A

Connectors:

Power input: 2.1mm/5.5mm socket, length 25cm

Power output: 2.1mm/5.5mm plug, length 25cm

Operating temperature: -20 - +60

Operating humidity: >90%

Battery charging requirements

Charging voltage: 12.6 V DC

Charging current: 1-2A

Charger

Output voltage: 12.6V DC

Current efficiency: 1000 mA

Supply voltage: 120-240V/50-60Hz 0.35A MAX

Output: 2.1/5.5 plug on cable

Output: Minus outside the plug, plus inside the plug

LED indications:

Red light - charger charging,

Green light - battery charged.

Kit contents

Battery

Charger

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 124 x 70 x 23 mm (D x W x H)

Package dimensions: 150 x 100 x 40 mm (D x W x H)

Product weight: 316 g

Weight with packaging: 360 g
