DHW Tank Temperature Sensor for De Dietrich 100000030P AD212P 12m

Model: ACTii AC3212

EAN: 6931240032121 SKU: 321297923

• High-quality precision temperature sensor
• Uses specialized copper flexible control cable BiT LiYY 2x0.5mm, voltage: 300/300V, operating temperature: -40℃ to 80℃ compliant with EU standard: LVD 2014/35/EU
• Sensor placed in a sleeve with a diameter of: 6mm and length: 50mm, made of stainless steel
• Each sensor is tested at 3 different temperatures to ensure measurement consistency with a reference sensor.
• Water protection - Sensor coated with high-temperature flexible silicone. Lack of airtightness is a common problem with temperature sensors, resulting in their damage due to moisture.
• Our temperature sensors are characterized by higher quality. Unlike competitors, we only use 100% copper thick certified control cable manufactured in the EU with thick and flexible insulation. We use sensors from branded companies. Each sensor is checked by us for measurement consistency with a reference sensor.
• Sensor finished with a connector fitting the socket located on the main board in the heat pump. Connecting the sensor only requires plugging it into the appropriate place on the main board.

Description

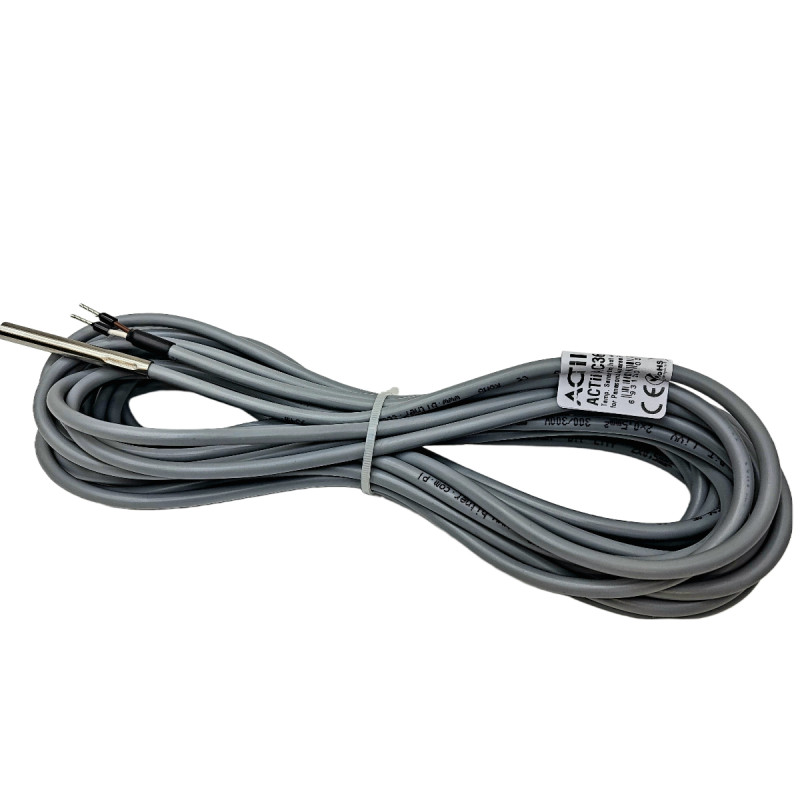

DHW Tank Temperature Sensor 100000030P AD212P 12m designed for De Dietrich boilers

Example models of boilers the sensor works with:

MCR4,

MCR3 Plus,

MCX 24,

INIDENS De Dietrich

and many others.

Sensor cable length: 12m

Sensor finished with a connector fitting the socket located in the boiler. Connecting the sensor only requires plugging it into the appropriate place.

Lack of airtightness is a common problem with temperature sensors, resulting in their damage due to moisture. Our sensors provide water protection - the sensor is coated with high-temperature flexible silicone.

Specification

Sensor Parameters

Sensor compatible with De Dietrich boilers

Compatibility with sensors: 100000030P AD212P

Purpose: Domestic Hot Water (DHW) Tank Temperature Sensor

Sensor measurement range: from -40 to +400 °C

Ingress protection: IP68

Sensor placed in a sleeve with a diameter of: 6mm and length: 50mm, made of stainless steel

Cable Termination: Plastic connector fitting the socket in the boiler

Cable length: 12m (472 inches)

Cable Parameters

Cable parameters:

Cable type: Control / signal cable

Operating voltage: 300/300V

Voltage test: ≤ 0.34mm2 1200 V , ≥ 0.5 mm2 1500 V

Insulation resistance: 20 MΩ x km

Capacitance: (at 800Hz): 0.14mm2 120pF/m, ≥0.25 mm2 150pF/m

Inductance: 0.65 mH/km

Min. bending radius flexible connection: 7.5 x Ø

Min. bending radius fixed connection: 4 x Ø

Operating temperature: Fixed installation: -40℃ to 80℃ , Flexible installations: -5℃ to 80℃

Laying conditions: Indoor cable, Min. laying temperature: -5℃

Environmental resistance: Flame retardant on a single cable

Certificates / Approvals: CPR - Certificates / DoP

Cable construction:

Conductor material: copper conductors

Working conductor structure: Class 5 (according to EN 60228, IEC 60228)

Core structure: multi-core cable

Application: Cables intended for control and signaling circuits in industrial applications, in measurement technology, and for data transmission via analog and digital signals in industrial electronics and automation installations. For fixed installation and for mobile devices. Suitable for indoor installations, in dry and damp rooms.

Other Information

Temperature sensors with different cable lengths are available in our offer

Kit contents

Temperature sensor with 12m long cable

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 50 x 200 x 200 mm (D x W x H)

Packaging dimensions: 100 x 200 x 50 mm (D x W x H)

Product weight: 250 g

Weight with packaging: 260 g
