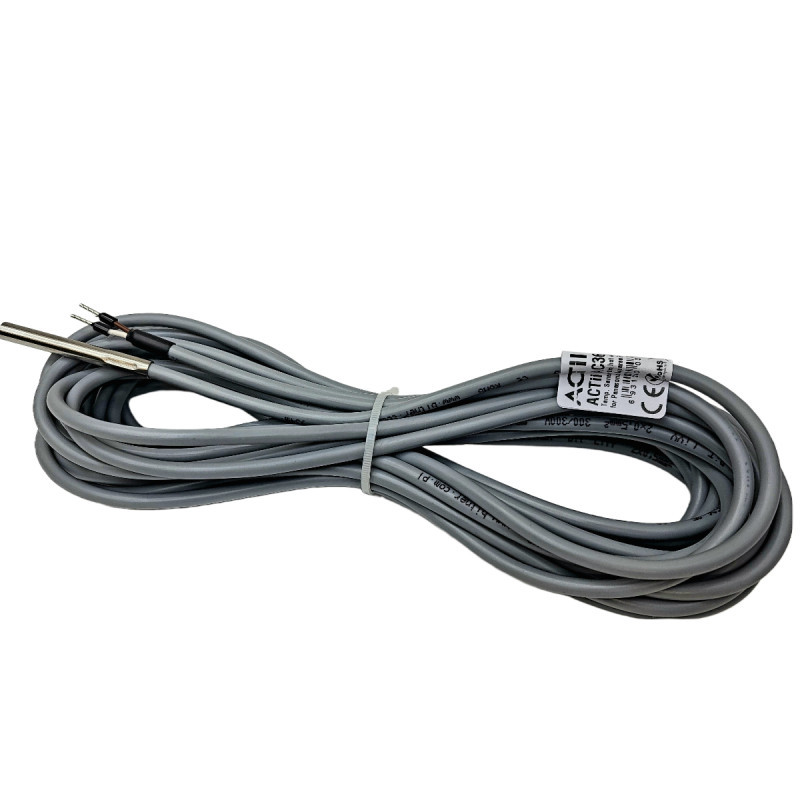

Buffer Tank Temperature Sensor for Panasonic Aquarea Heat Pump PAW-A2W-TSBU 12m

Model: ACTii AC2312

EAN: 6931240023129 SKU: 231299836

• High-quality precision temperature sensor
• Uses specialized flexible copper control cable BiT LiYY 2x0.5mm, voltage: 300/300V, operating temperature: -40℃ to 80℃ compliant with EU standard: LVD 2014/35/EU
• Sensor placed in a sleeve with a diameter of: 6mm and length: 50mm, made of stainless steel
• Each sensor is tested for 3 different temperatures to ensure measurement consistency with a reference sensor.
• Water protection - Sensor coated with high-temperature flexible silicone. Lack of airtightness is a frequent problem with temperature sensors, resulting in their damage due to moisture.
• Our temperature sensors are characterized by higher quality. Unlike the competition, we use only 100% thick copper certified control cable manufactured in the EU in thick and flexible insulation. We use sensors from branded companies. Each sensor is checked by us for measurement compliance with a reference sensor.
• Sensor terminated with a connector matching the socket located on the mainboard in the heat pump. Connecting the sensor only requires plugging it into the appropriate place on the mainboard.

Description

Buffer tank temperature sensor designed for Panasonic Aquarea heat pumps from the H series

The sensor is designed for all Panasonic heat pumps where the acceptable sensor is marked: PAW-A2W-TSBU , (the user manual lists the sensor model intended for a specific heat pump)

Sensor cable length: 12m

Specification

Sensor Parameters

Sensor compatible with Panasonic Aquarea

Application: Panasonic Heat Pumps

Sensor measuring range: from -40 to +400 °C

Ingress protection: IP68

Sensor placed in a sleeve with a diameter of: 6mm and length: 50mm, made of stainless steel

Cable termination: 2x straight connector crimped on the cable

Cable length: 12m (472 inches)

Cable Parameters

Cable parameters:

Cable type: Control / signal cable

Operating voltage: 300/300V

Voltage test: ≤ 0.34mm2 1200 V , ≥ 0.5 mm2 1500 V

Insulation resistance: 20 MΩ x km

Capacitance: (at 800Hz): 0.14mm2 120pF/m, ≥0.25 mm2 150pF/m

Inductance: 0.65 mH/km

Min. bending radius flexible connection: 7.5 x Ø

Min. bending radius fixed connection: 4 x Ø

Operating temperature: Fixed installation: -40℃ to 80℃ , Flexible installations: -5℃ to 80℃

Laying conditions: Indoor cable, Min. laying temperature: -5℃

Environmental resistance: Flame retardant on a single cable

Certificates / Approvals / Authorizations: CPR - Certificates / DoP

Cable construction:

Conductor material: copper conductors

Core construction: Cl.5 (acc. to EN 60228, IEC 60228)

Core structure: multi-core cable

Application: Cables intended for control and signaling circuits in industrial applications, in measurement technology, and for data transmission via analog and digital signals in industrial electronics and automation installations. For fixed installation and for mobile devices. Suitable for use in indoor installations, in dry and damp rooms.

Other Information

Our offer includes temperature sensors with different cable lengths

Temperature sensor application

Designed for Panasonic Aquarea heat pumps from the H series

Buffer tank temperature sensor ( PAW-A2W-TSBU )

Set contents

Temperature sensor with 12m long cable

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 35 x 35 x 250 mm (D x W x H)

Package dimensions: 45 x 250 x 50 mm (D x W x H)

Product weight: 320 g

Weight with packaging: 349 g
