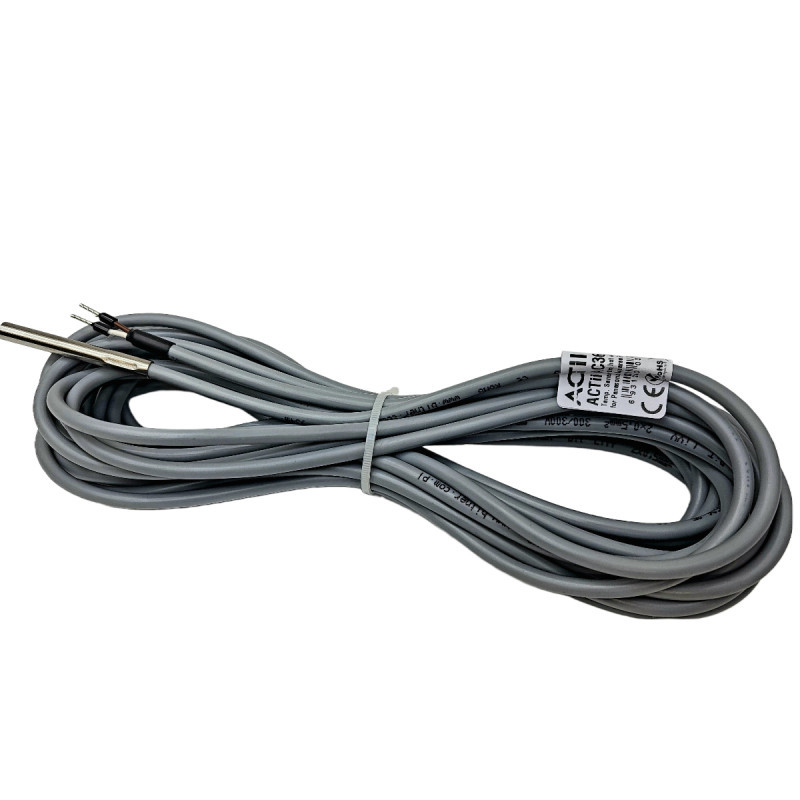

Outdoor Temperature Sensor for Panasonic Aquarea Heat Pump PAW-A2W-TSOD 5m

Model: ACTii AC3805

EAN: 6931240038055 SKU: 380585584

• High-quality precision temperature sensor
• Uses a specialized copper flexible control cable BiT LiYY 2x0.5mm, voltage: 300/300V, operating temperature: -40℃ to 80℃ compliant with EU standard: LVD 2014/35/EU
• Sensor housed in a sleeve with a diameter of 6mm and length of 50mm, made of stainless steel
• Each sensor is tested for 3 different temperatures to ensure measurement compliance with the reference sensor.
• Water protection - Sensor coated with high-temperature flexible silicone. Lack of tightness is a common problem with temperature sensors, resulting in damage due to moisture.
• Our temperature sensors are of superior quality. Unlike the competition, we use only 100% copper thick certified control cable manufactured in the EU in thick and flexible insulation. We use branded sensors. Each sensor is checked by us for measurement compliance with the reference sensor.
• Sensor terminated with a connector fitting the socket located on the main board in the heat pump. Connecting the sensor requires only plugging the sensor into the appropriate place on the main board.

Description

Outdoor temperature sensor, designed for Panasonic Aquarea heat pumps from H series

Sensor designed for all Panasonic heat pumps where the acceptable sensor is marked: PAW-A2W-TSOD , (the user manual lists the sensor model intended for a given heat pump)

Sensor cable length: 5m

Lack of tightness is a common problem with temperature sensors, resulting in damage due to moisture. Our sensors provide water protection - the sensor is coated with high-temperature flexible silicone.

Specification

Sensor Parameters

Sensor compatible with Panasonic Aquarea

Purpose: Panasonic Heat Pumps

Sensor measuring range: from -40 to +400 °C

Ingress protection: IP68

Sensor housed in a sleeve with a diameter: 6mm and length: 50mm, made of stainless steel

Cable termination: 2x Straight connector crimped on the cable

Cable length: 5m (196 inches)

Cable Parameters

Cable parameters:

Cable type: Control / signal cable

Operating voltage: 300/300V

Voltage test: ≤ 0.34mm2 1200 V , ≥ 0.5 mm2 1500 V

Insulation resistance: 20 MΩ x km

Capacitance: (at 800Hz): 0.14mm2 120pF/m, ≥0.25 mm2 150pF/m

Inductance: 0.65 mH/km

Min. bending radius flexible connection: 7.5 x Ø

Min. bending radius fixed connection: 4 x Ø

Operating temperature: Fixed installation: -40℃ to 80℃ , Flexible installations: -5℃ to 80℃

Laying conditions: Indoor cable, Min. laying temperature: -5℃

Environmental resistance: Flame retardant on a single cable

Certificates / Approvals / Admissions: CPR - Certificates / DoP

Cable construction:

Conductor material: Copper conductors

Construction of working conductors: Cl.5 (acc. to EN 60228, IEC 60228)

Core construction: multi-core cable

Application: Cables intended for control and signaling circuits in industrial applications, in measurement technology and for data transmission via analog and digital signals in industrial electronics and automation installations. For fixed installation and for mobile devices. They are suitable for operation in indoor installations, in dry and damp rooms.

Other Information

We offer temperature sensors with other cable lengths

Temperature sensor purpose

Designed for Panasonic Aquarea heat pumps from H series

Outdoor temperature sensor ( PAW-A2W-TSOD )

Set contents

Temperature sensor with 5m cable

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 50 x 50 x 250 mm (D x W x H)

Packaging dimensions: 50 x 250 x 50 mm (D x W x H)

Product weight: 250 g

Weight with packaging: 270 g
