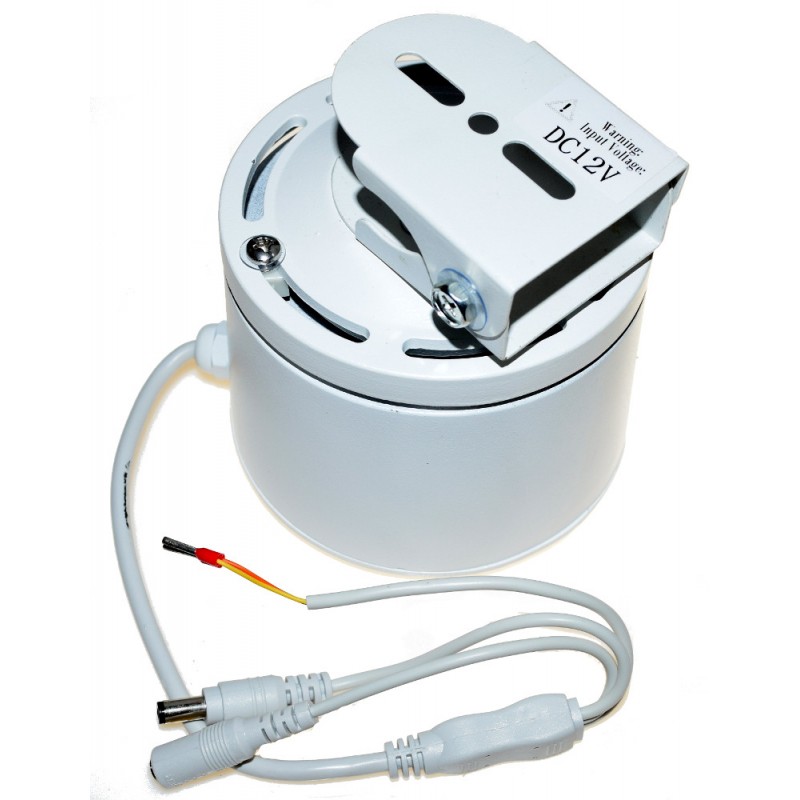

Mini Outdoor PTZ Head for CCTV Cameras PAN 355deg RS485 Controller 12V AUTO rotation mode 10kg

Model: ACTii AC4931

EAN: 6931240049310 SKU: 493121184

• Compact outdoor PTZ head with bracket for CCTV cameras
• Horizontal rotation (355°) and manual vertical tilt range (60°)
• Built-in RS-485 controller
• 12V DC power output for camera and/or MOTO-ZOOM lens
• Left / Right rotation limiters
• Preset and scanning functions
• Waterproof, dustproof
• The PTZ head can operate without an RS485 connection. Once powered, it starts rotating automatically left and right. You can also set rotation limits manually.
• Adjustable start position.
• Maximum load: 10kg

Description

Outdoor PTZ head for CCTV industrial cameras with built-in RS485 controller for industrial television applications.

The PTZ head can operate without an RS485 control connection. After connecting the power, the head will start rotating automatically left and right. The range of rotation limits can also be set freely.

Specification

Parameters

Rotation Parameters

Rotation speed: Horizontal: 0°- 6°/s (adjustable).

Rotation range: Horizontal: 355°, Vertical: 60° (manual settings)

Built-in RS-485 controller

YES

The controller supports PTZ rotation

Standard RS-485 settings: Protocol: PELCO-D and others, Speed: adjustable (default 2400), Address: adjustable (default 1)

Rotation limits: Right and Left, any setting,

Preset positions: 128 preset positions

Preset cruise path: 1 path, 3 rotation speed levels

Preset monitoring position: YES

Fixed home position: YES

Setting accuracy: 0.1° ,

Self-learning path function

Cable

2-core - RS-485 control

12V DC input: 2.1mm/5.5mm power socket

12V DC output: 2.1mm/5.5mm power plug

Operating temp. / relative humidity: -25°C - +70°C/ <90%

Maximum load: 10kg

Bracket base dimensions (wall mount): 83x65mm

Power supply

DC 12V 1A

Power consumption: 0.9W

Additional Information

Using a PTZ head is the simplest way to increase a camera's field of view. Combined with manual controllers and "moto-zoom" lenses, they allow for precise tracking of specific events. A stationary camera is always directed at a specific area, and its orientation does not always allow for discerning details of the observed image. If we place the camera on a PTZ head and additionally equip it with a "moto-zoom" lens, controlling the field of view becomes possible.

The PTZ head can operate without an RS485 control connection. After connecting the power, the head will start rotating automatically left and right. The range of rotation limits can also be set freely.

Set contents

PTZ head.

User manual.

Cardboard packaging.

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 111 x 111 x 105 mm (D x W x H)

Package dimensions: 120 x 120 x 120 mm (D x W x H)

Product weight: 790 g

Weight with packaging: 840 g
