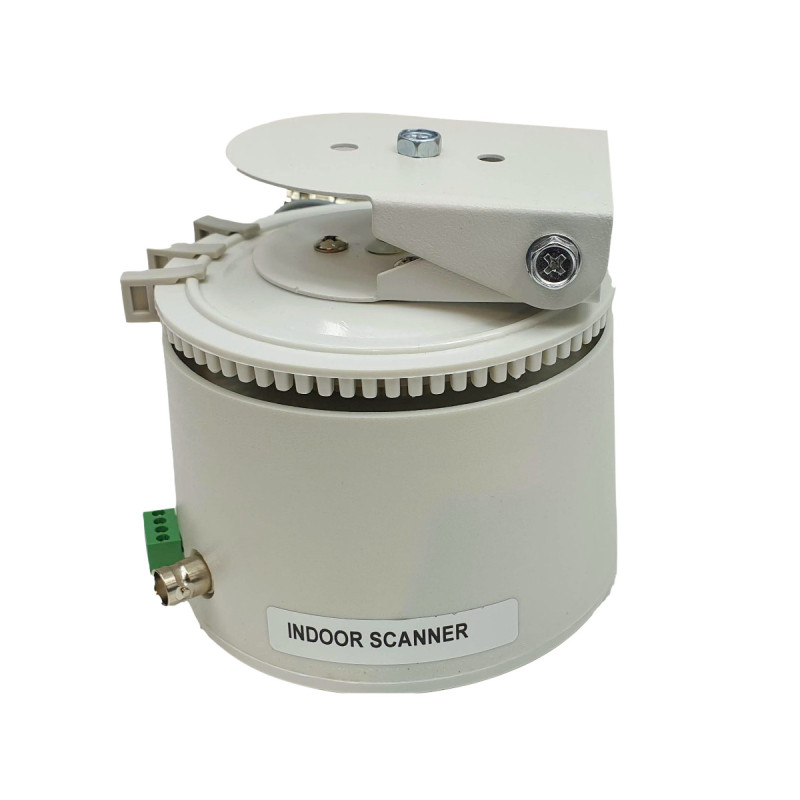

Mini Pan Tilt Head for Industrial CCTV Cameras 350 deg 230V AC Auto Rotation Mode 7kg

Model: ACTii AC5263

EAN: 6931240052631 SKU: 526374805

• Small external Pan Tilt head with mount for CCTV cameras
• Horizontal rotation (350°) and manual vertical tilt setting range (90°)
• BNC output for camera connection
• Possibility to limit the horizontal rotation angle and scanning function (cyclic left-right rotation)
• Maximum load: 7kg
• Also ideal for use in border services, prisons, police, construction sites, for rotating solar panels, lighting, etc.

Description

Pan Tilt head for industrial CCTV cameras for applications in industrial television.

The Pan Tilt head can operate manually by applying voltage or automatically; once connected to power, the head will start rotating automatically left and right. It is also possible to freely set the rotation range limit.

PAN head for applications in industrial television, Photovoltaic Solar Panels, etc.

The Pan Tilt head can also be used to rotate various types of devices such as: antennas, night vision devices, sensors, floodlights, lighting.

Specification

Housing

Material: ABS

Application: Indoors, Outdoors (only for work under cover with no possibility of water contact)

Operating temp. / rel. humidity: -25°C - +60°C/ <90%

Inputs, outputs

Power supply: 230V AC

BNC cable: Video (core +, ground -)

Terminal in the lower part of the housing: Auto mode, COM, clockwise rotation, counter-clockwise rotation

Rotation parameters

Rotation speed: Horizontal: 6°/s.

Rotation range: Horizontal: 350°

Maximum load: 7kg

Power supply

Power adapter: AC 230V

Power consumption: 5W

Set contents

Pan Tilt head

User manual

Mounting screws

Cardboard packaging

Certificates and standards

CE , ROHS

Dimensions, Weight

Product dimensions: 110 x 110 x 105 mm (Depth x Width x Height)

Package dimensions: 120 x 120 x 100 mm (Depth x Width x Height)

Product weight: 622 g

Weight with packaging: 661 g

Zum Download

• User Manual
• CE Declaration
• SAFETY COMPLIANCE
