- New

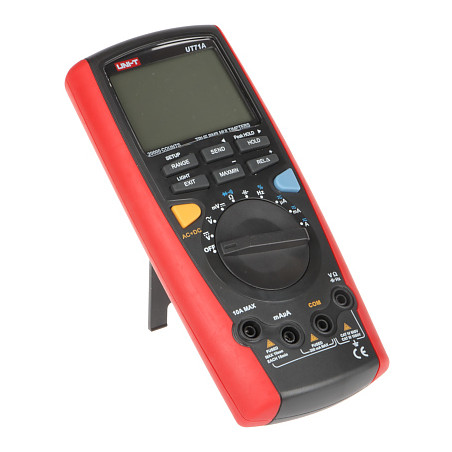

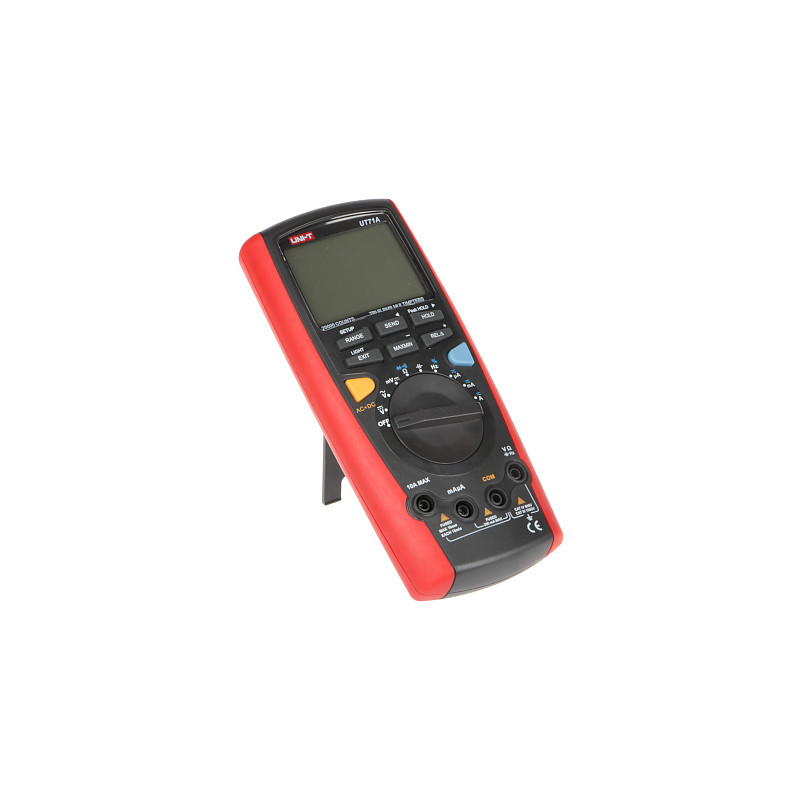

Digital universal multimeter with USB interface and auto-ranging UNI-T UT-71A
zł780.95
Tax included
The UT-71A is an advanced, professional universal multimeter designed for precise measurements in electronics and electrical engineering. The device is characterised by high accuracy and a wide range of measured parameters, making it an indispensable tool in every electronics workshop and engineering environment. The multimeter allows for the measurement of direct current (DC) and alternating current (AC) voltage, current intensity, resistance, capacitor capacitance, and signal frequency. Additionally, it features diode testing and circuit continuity signalling, which significantly speeds up fault diagnostics.
One of the key advantages of the UT-71A model is the built-in USB interface, which allows for direct communication with a computer. Thanks to dedicated software, the user can monitor measurement results in real-time, save them as reports, and analyse parameter change trends. The automatic range selection function eliminates the need for manual switching, which increases work comfort and prevents measurement errors. The device is equipped with a large, clear LCD display with backlighting, which facilitates reading results in poorly lit areas. The robust housing and included case provide protection against mechanical damage during transport. The multimeter also offers advanced functions such as data hold, peak value measurement, and relative measurement mode (REL), making it a versatile tool for professionals.
Digital universal multimeter with USB interface and auto-ranging
Model: UNI-T UT-71A
EAN: 6931240018750 SKU: 931018759
- Automatic measurement range selection
- USB interface for PC communication
- Large, backlit LCD display
- Data hold function
- Peak value measurement
- Relative measurement mode (REL)
- Analogue bargraph
- Circuit continuity and diode test signalling
- Robust carrying case included
Description
The UT-71A is an advanced, professional universal multimeter designed for precise measurements in electronics and electrical engineering. The device is characterised by high accuracy and a wide range of measured parameters, making it an indispensable tool in every electronics workshop and engineering environment. The multimeter allows for the measurement of direct current (DC) and alternating current (AC) voltage, current intensity, resistance, capacitor capacitance, and signal frequency. Additionally, it features diode testing and circuit continuity signalling, which significantly speeds up fault diagnostics.
One of the key advantages of the UT-71A model is the built-in USB interface, which allows for direct communication with a computer. Thanks to dedicated software, the user can monitor measurement results in real-time, save them as reports, and analyse parameter change trends. The automatic range selection function eliminates the need for manual switching, which increases work comfort and prevents measurement errors. The device is equipped with a large, clear LCD display with backlighting, which facilitates reading results in poorly lit areas. The robust housing and included case provide protection against mechanical damage during transport. The multimeter also offers advanced functions such as data hold, peak value measurement, and relative measurement mode (REL), making it a versatile tool for professionals.
Specification
DC voltage measurement
200mV ±(0.1%+8) @ 0.01mV, 2V ±(0.1%+8) @ 0.0001V, 20V ±(0.1%+8) @ 0.001V, 200V ±(0.1%+8) @ 0.01V, 1000V ±(0.15%+8) @ 0.1V
AC voltage measurement
Ranges 2V, 20V, 200V, 1000V. Accuracy depends on frequency (45Hz - 100kHz), from 0.8% to 10% depending on range and frequency.
DC current measurement
200µA, 2000µA, 20mA, 200mA, 10A. Accuracy from 0.2% to 0.8%.
AC current measurement
200µA, 2000µA, 20mA, 200mA, 10A. Accuracy from 1% to 2% depending on frequency (45Hz - 10kHz).
Resistance measurement
200Ω to 20MΩ. Accuracy from 0.5% to 1.5%.
Capacitance measurement
20nF to 20mF. Accuracy from 1.5% to 5%.
Frequency measurement
20Hz to 200MHz. Accuracy 0.1%.
Software
The multimeter works with dedicated PC software via a USB interface. The application enables full visualisation of measurement data in real-time, creation of trend charts, and export of results to files (e.g., Excel, CSV). The software allows for remote configuration of measurement parameters, long-term recording (datalogging), and automatic generation of technical reports. It is an essential tool for advanced diagnostics, signal stability analysis, and documenting service processes, ensuring high precision and data readability.
Additional functions
Hold last reading (Hold), freeze highest/lowest reading, peak value recording, relative measurement mode (REL), analogue bargraph, low battery alarm.
Interface
USB (cable and software included)
Power supply
9V battery, type 6F22 (included)
Warranty
2 years
Contents
1x UT-71A Multimeter
1x Set of test leads with alligator clips
1x Carrying case
1x 9V battery
1x USB cable
1x Software
Dimensions, Weight
Product dimensions: 40 x 203 x 93 mm (D x W x H)
Packaging dimensions: 70 x 305 x 180 mm (D x W x H)
Product weight: 350 g
Weight with packaging: 848 g
