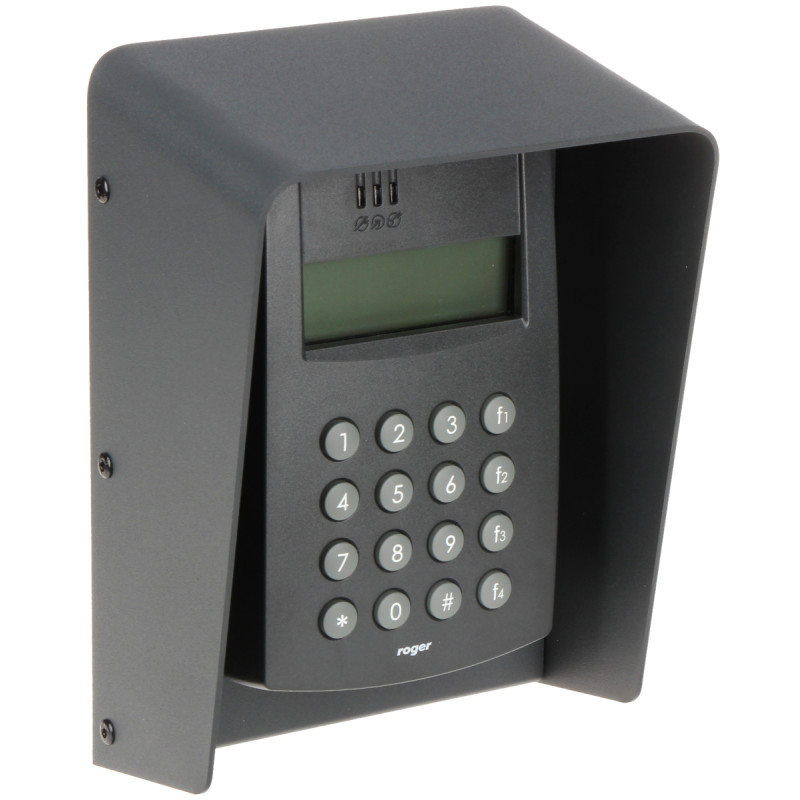

Proximity reader with keypad for RACS 5 access control systems ROGER MCT68ME-IO-O
zł1,512.90
Tax included
The external proximity card and key fob reader is an advanced device designed for professional RACS 5 access control systems. The product features a robust metal protective housing that provides high resistance to mechanical damage and harsh weather conditions, as confirmed by its IP54 ingress protection rating. The reader supports two of the most popular RFID standards: Unique EM 125 kHz and 13.56 MHz S50 Classic, making it an extremely versatile solution for facilities requiring a high level of security.
The device is equipped with a clear keypad that allows for additional user verification via PIN code, which significantly increases the level of protection in restricted access zones. Thanks to the built-in relay output and two transistor outputs, the reader can directly control actuators such as electric strikes or electromagnetic locks. An additional advantage is the advanced tamper protection, which detects attempts to detach the device from the surface and unauthorized opening of the housing, immediately informing the system of a threat.
The reader offers intuitive LED and acoustic signalling, which facilitates operation for end users. Three programmable NO/NC input lines allow for flexible configuration of the device according to individual installation needs. Thanks to RS-485 communication, the device is fully integrated with the RACS 5 system, ensuring stable and secure data transmission. It is an ideal choice for installers looking for a reliable, durable, and functional reader for indoor and outdoor use.
Proximity reader with keypad for RACS 5 access control systems
Model: ROGER MCT68ME-IO-O
EAN: 6931240081020 SKU: 931081021
- Support for Unique EM 125kHz and 13.56 MHz S50 standards
- Built-in numeric keypad
- Robust metal protective housing
- Tamper protection (detachment and opening)
- 3 programmable NO/NC input lines
- Relay output and two transistor outputs
- LED and acoustic signalling
- IP54 ingress protection rating
Description
The external proximity card and key fob reader is an advanced device designed for professional RACS 5 access control systems. The product features a robust metal protective housing that provides high resistance to mechanical damage and harsh weather conditions, as confirmed by its IP54 ingress protection rating. The reader supports two of the most popular RFID standards: Unique EM 125 kHz and 13.56 MHz S50 Classic, making it an extremely versatile solution for facilities requiring a high level of security.
The device is equipped with a clear keypad that allows for additional user verification via PIN code, which significantly increases the level of protection in restricted access zones. Thanks to the built-in relay output and two transistor outputs, the reader can directly control actuators such as electric strikes or electromagnetic locks. An additional advantage is the advanced tamper protection, which detects attempts to detach the device from the surface and unauthorized opening of the housing, immediately informing the system of a threat.
The reader offers intuitive LED and acoustic signalling, which facilitates operation for end users. Three programmable NO/NC input lines allow for flexible configuration of the device according to individual installation needs. Thanks to RS-485 communication, the device is fully integrated with the RACS 5 system, ensuring stable and secure data transmission. It is an ideal choice for installers looking for a reliable, durable, and functional reader for indoor and outdoor use.
Specification
Compatibility
RACS 5 (Roger)
Card support
Unique EM 125kHz, 13.56 MHz S50
Card reading range
max. 10 cm (Unique EM 125kHz), max. 7 cm (13.56 MHz S50)
Built-in keypad
Yes
Autonomous operation
No
Doorbell button
No
Tamper output
Yes
Communication
RS-485, RACS 5 (Roger)
Selected features
Tamper protection (detection of detachment from the surface and opening of the housing), LED signalling, Acoustic signal, 3 programmable NO/NC input lines, Two transistor outputs, Relay output, Metal protective housing
Power supply
10 ... 15V DC
Average current consumption
100 mA
Operating temperature
-25 °C ... 60 °C
Permissible relative ambient humidity
10 ... 95 % (non-condensing)
Ingress protection rating
IP54
Software
The device works with the RACS 5 system by Roger. This software provides a comprehensive access control management environment, enabling advanced configuration of reader parameters, user permission management, real-time event monitoring, and integration with alarm systems. The interface allows for remote firmware updates of the device (e.g., version 2.0.4.264), which ensures access to the latest security features and improved operational stability. The RACS 5 system offers extensive reporting, support for access schedules, and advanced logic functions for the reader's inputs and outputs, allowing for the creation of complex security scenarios in commercial and industrial facilities.
Contents
1x MCT68ME-IO-O proximity reader
1x Metal protective housing
Dimensions, Weight
Product dimensions: 104 x 220 x 157 mm (D x W x H)
Packaging dimensions: 104 x 280 x 225 mm (D x W x H)
Product weight: 1000 g
Weight with packaging: 1250 g
