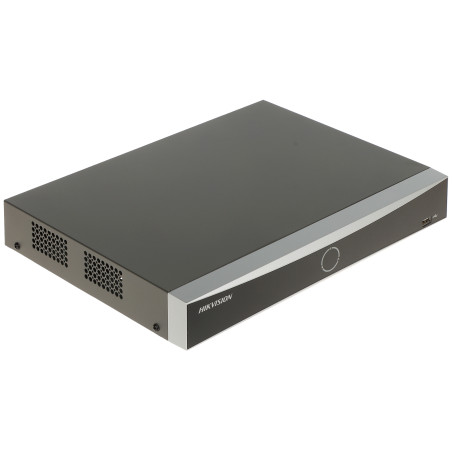

4 Channel AcuSense IP Recorder 12Mpx 4K HDMI Alarms H.265+ ONVIF P2P

Model: Hikvision DS-7604NXI-K1(D)/ALARM4+1

EAN: 6931240019207 SKU: 931019206

• Support for up to 4 IP channels at resolutions up to 12 Mpx
• AcuSense technology - false alarm filtering (humans/vehicles)
• Intelligent image analysis: face recognition and perimeter protection
• Video compression H.265+ / H.265 / H.264+ / H.264
• HDMI 4K and VGA video outputs
• Support for 1 SATA hard drive up to 16 TB
• Alarm connectors: 4 inputs and 1 output
• Remote access via P2P cloud and Hik-Connect app
• ONVIF standard compliance
• Gigabit Ethernet network interface

Description

The Hikvision DS-7604NXI-K1(D)/ALARM4+1 network recorder is an advanced solution dedicated to IP monitoring systems, combining high performance with intelligent image analysis. This device supports up to 4 video channels, offering support for cameras with an impressive resolution of up to 12 Mpx, which guarantees an extremely detailed and clear image.

A key advantage of this model is the implementation of AcuSense technology, which revolutionises the way events are detected. Thanks to deep learning algorithms, the recorder can precisely distinguish human silhouettes and vehicles from other moving objects, such as animals, falling leaves, or rain. This allows for a drastic reduction in the number of false alarms, which translates into higher operator efficiency and time savings when reviewing recordings.

Device advantages:

- Exceptional precision thanks to AcuSense technology and false alarm filtering.

- Support for ultra-high 12 Mpx resolution for maximum detail.

- Advanced H.265+ compression, which significantly reduces storage space and network bandwidth requirements.

- Intuitive remote access via P2P cloud and the free Hik-Connect mobile app.

- Extensive AI functions, including face recognition and intelligent perimeter protection.

- Robust design and support for high-capacity drives up to 16 TB.

- Wide range of video outputs, including HDMI 4K, ensuring compatibility with modern monitors.

The recorder is ideal for monitoring homes, offices, shops, and small industrial facilities where reliability and intelligent support in property surveillance are essential.

Specification

Standard

IP

Number of channels

4

Resolution

up to 12 Mpx

AI - Recorder functions

Face recognition (comparison with a database of up to 20,000 photos, 16 libraries), perimeter protection (intrusion, line crossing with object classification), intelligent motion detection Motion Detection 2.0 (distinguishing humans and vehicles)

AI - Camera support

Face recognition, perimeter protection, intelligent object tracking, ANPR (license plate recognition), VCA (metadata support)

Video outputs

1x HDMI (4K - 3840 x 2160), 1x VGA (1920 x 1080)

Audio

1x RCA input (CINCH), 1x RCA output (CINCH), support for two-way audio

Archiving

1x SATA port (support for drives up to 16 TB), 2x USB 2.0 port for backup to a flash drive or external drive

Image compression

H.265+ / H.265 / H.264+ / H.264 - intelligent codecs reducing bandwidth and disk space usage

Network

1x RJ-45 10/100/1000 Base-TX (Gigabit Ethernet), protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS

Alarm connectors

4 alarm inputs / 1 alarm output for integration with external systems

Access and operation

Web browsers (IE, Chrome, Firefox), iVMS-4200 software, Hik-Connect mobile app (P2P), ONVIF

Software and application

The device works with the Hikvision ecosystem, including the key Hik-Connect application available for Android and iOS systems. This application enables instant device configuration by scanning a QR code (P2P cloud service), which eliminates the need for a static IP address or port forwarding on the router. The user gets access to live view from multiple cameras simultaneously, remote playback of recordings from the timeline, and instant push notifications about alarm events (e.g., human detection by AcuSense). The software also allows for remote configuration of recorder parameters, user management, and two-way audio communication. The interface is fully translated, intuitive, and optimised for low mobile data consumption.

Physical parameters

Operating temperature from -10°C to 55°C, permissible humidity up to 90%, 1U housing, dimensions 320 x 245 x 48 mm

Power supply and power consumption

12 V DC / 1.5 A (external power supply included), power consumption below 10 W without an installed hard drive

Contents

1x IP recorder

1x Mains power adapter

1x Computer mouse

1x Set of screws for drive mounting

1x SATA and power cable for the drive

User manual

Dimensions, Weight

Product dimensions: 245 x 320 x 48 mm (D x W x H)

Package dimensions: 300 x 420 x 85 mm (D x W x H)

Product weight: 1150 g

Weight with packaging: 1690 g
