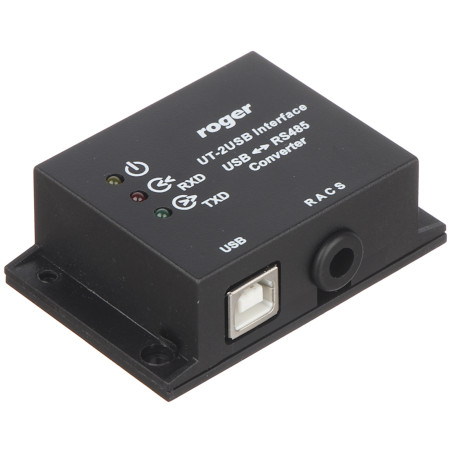

USB to RS-485 Interface Converter RACS Access Control System Communication Bus ROGER UT-2USB
zł398.03
Tax included
The UT-2USB communication interface is a professional solution dedicated to converting signals between the popular USB standard and the industrial RS-485 bus. The device has been designed for maximum reliability and ease of use, making it an essential piece of equipment for every security and automation system installer.
One of the key advantages of this model is full integration with the Roger RACS access control system, which allows for rapid configuration of controllers and readers directly from a laptop. The device eliminates the need for complicated and bulky external power supplies, as it draws the energy required for operation directly from the computer's USB port. It is a Plug&Play solution that is immediately ready for use after installing the appropriate FTDI drivers.
The UT-2USB converter features an intelligent automatic transmission direction control system. In the RS-485 standard, which operates in half-duplex mode, precise switching between transmitting and receiving is critical for maintaining data integrity – the UT-2USB performs this task at the hardware level, thereby offloading the computer's processor and minimizing the risk of communication errors.
The device supports a wide range of transmission speeds, from basic values up to 115.2 kbit/s, which allows for stable operation even in extensive networks with a large number of slave devices. The IP30-rated housing ensures adequate durability in indoor conditions, and its small dimensions mean the converter does not take up valuable space on a desk or in a control cabinet.
An additional advantage is the use of high-quality screw terminals for the RS-485 line, which guarantees a secure and durable wire connection, resistant to accidental disconnection. The UT-2USB is an investment in communication stability, which translates into faster diagnostics and maintenance of electronic systems. Thanks to support for multiple operating systems, this tool is extremely flexible and future-proof.
USB to RS-485 Interface Converter RACS Access Control System Communication Bus
Model: ROGER UT-2USB
EAN: 6931240016053 SKU: 931016051
- Conversion of USB signals to RS-485 standard
- Powered directly from the computer USB port
- Automatic data transmission direction control
- Support for half-duplex mode
- Transmission speed up to 115.2 kbit/s
- Based on a reliable FTDI chip
- Dedicated to Roger RACS systems
- Compact housing with IP30 ingress protection rating
- Optical status indication
- Easy installation thanks to VCP drivers
Description
The UT-2USB communication interface is a professional solution dedicated to converting signals between the popular USB standard and the industrial RS-485 bus. The device has been designed for maximum reliability and ease of use, making it an essential piece of equipment for every security and automation system installer.
One of the key advantages of this model is full integration with the Roger RACS access control system, which allows for rapid configuration of controllers and readers directly from a laptop. The device eliminates the need for complicated and bulky external power supplies, as it draws the energy required for operation directly from the computer's USB port. It is a Plug&Play solution that is immediately ready for use after installing the appropriate FTDI drivers.
The UT-2USB converter features an intelligent automatic transmission direction control system. In the RS-485 standard, which operates in half-duplex mode, precise switching between transmitting and receiving is critical for maintaining data integrity – the UT-2USB performs this task at the hardware level, thereby offloading the computer's processor and minimizing the risk of communication errors.
The device supports a wide range of transmission speeds, from basic values up to 115.2 kbit/s, which allows for stable operation even in extensive networks with a large number of slave devices. The IP30-rated housing ensures adequate durability in indoor conditions, and its small dimensions mean the converter does not take up valuable space on a desk or in a control cabinet.
An additional advantage is the use of high-quality screw terminals for the RS-485 line, which guarantees a secure and durable wire connection, resistant to accidental disconnection. The UT-2USB is an investment in communication stability, which translates into faster diagnostics and maintenance of electronic systems. Thanks to support for multiple operating systems, this tool is extremely flexible and future-proof.
Specification
Device type
USB to RS-485 interface converter
Transmission standard
RS-485 (Half Duplex)
Transmission speed
0 ... 115.2 kbit/s
Power supply
5 V DC drawn directly from the USB port
Power consumption
Low, bus-powered
Direction control
Automatic direction control on RS-485 lines
Connectors
USB type B port, screw terminals for RS-485 bus
Ingress protection rating
IP30 (protection against solid objects >12.5 mm in diameter)
Operating environment
Class I indoor (temperature-controlled rooms)
Operating temperature
0 °C ... 55 °C
Permissible humidity
10 % ... 95 % (non-condensing)
Compatibility
Roger RACS systems and other devices operating in the RS-485 standard
Software and drivers
Control software based on FTDI (Future Technology Devices International) chips ensures stable emulation of a virtual COM port (VCP) in the operating system. As a result, the converter is visible to applications as a standard serial port, which enables cooperation with almost any diagnostic and configuration software. The drivers offer advanced transmission buffer management functions, which minimize latency and prevent data loss at high speeds. They also support power-saving mechanisms and are regularly updated, which guarantees security and stability on the latest versions of Windows, Linux, and macOS operating systems.
Additional features
No galvanic isolation, LED indication, free-standing mounting
Contents
1x UT-2USB interface
1x USB connection cable
1x Set of configuration jumpers
Dimensions, Weight
Product dimensions: 23 x 68 x 45 mm (D x W x H)
Packaging dimensions: 40 x 125 x 125 mm (D x W x H)
Product weight: 35 g
Weight with packaging: 125 g
