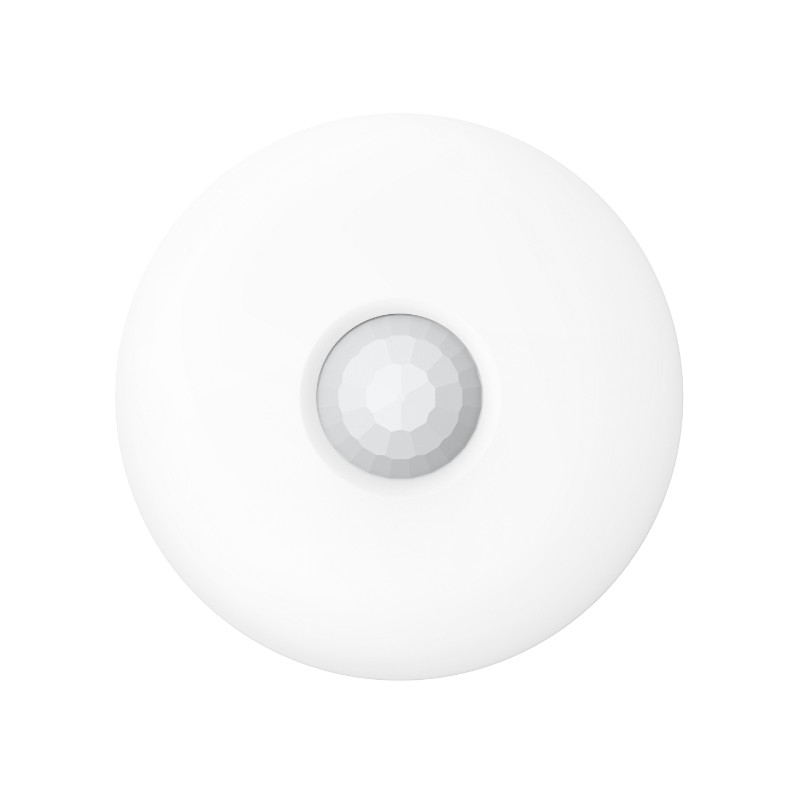

Dual PIR and Microwave ceiling motion detector 360 degrees 12m range for wired alarm system Hikvision DS-PDCL12DT-EG2
zł404.67
Tax included
The DS-PDCL12DT-EG2 wired dual detector is an advanced solution in the field of security systems, designed specifically for ceiling mounting. The device combines two independent detection technologies: passive infrared (PIR) and microwave (MW) operating in the 24GHz band. Thanks to this combination, the detector is characterised by exceptional resistance to false alarms that can be caused by sudden temperature changes or air movement, while maintaining maximum effectiveness in detecting intruders.
A key advantage of the model is full coverage of the area within a 360-degree radius, which, when mounted at a height of up to 4 metres, allows for effective protection of a room with a diameter of up to 12 metres. The device is equipped with advanced digital temperature compensation, which automatically adjusts the sensor sensitivity to ambient conditions, ensuring stable operation on both cold and hot days. An additional advantage is the creep zone protection, which eliminates so-called blind spots directly under the detector.
System security is enhanced by a built-in tamper protection, which reacts to any attempt to open the housing or detach the device from the surface. The detector also features a white light filter, protecting against blinding by spotlights or strong sunlight. The aesthetic, low-profile housing with a diameter of 120 mm allows the device to blend discreetly into the decor of modern office and residential interiors, making it a reliable element of a professional alarm system.
Dual PIR and Microwave ceiling motion detector 360 degrees 12m range for wired alarm system
Model: Hikvision DS-PDCL12DT-EG2
EAN: 6931240031216 SKU: 931031210
- Dual technology: PIR (passive infrared) + MW (24GHz microwave)
- Full 360-degree detection angle for ceiling mounting
- Maximum detection range up to 12 metres
- Digital temperature compensation for operational stability
- Creep zone protection (no blind spots under the detector)
- Built-in end-of-line resistors (EOL/2EOL)
- Advanced white light filter
- Full tamper protection (opening and removal)
- Status indication via tri-colour LED
- Wide mounting height range from 2.4m to 4m
Description
The DS-PDCL12DT-EG2 wired dual detector is an advanced solution in the field of security systems, designed specifically for ceiling mounting. The device combines two independent detection technologies: passive infrared (PIR) and microwave (MW) operating in the 24GHz band. Thanks to this combination, the detector is characterised by exceptional resistance to false alarms that can be caused by sudden temperature changes or air movement, while maintaining maximum effectiveness in detecting intruders.
A key advantage of the model is full coverage of the area within a 360-degree radius, which, when mounted at a height of up to 4 metres, allows for effective protection of a room with a diameter of up to 12 metres. The device is equipped with advanced digital temperature compensation, which automatically adjusts the sensor sensitivity to ambient conditions, ensuring stable operation on both cold and hot days. An additional advantage is the creep zone protection, which eliminates so-called blind spots directly under the detector.
System security is enhanced by a built-in tamper protection, which reacts to any attempt to open the housing or detach the device from the surface. The detector also features a white light filter, protecting against blinding by spotlights or strong sunlight. The aesthetic, low-profile housing with a diameter of 120 mm allows the device to blend discreetly into the decor of modern office and residential interiors, making it a reliable element of a professional alarm system.
Specification
Application
Indoor - dedicated to the protection of office, commercial and residential premises.
Detection technology
Dual: Passive Infrared (PIR) and Microwave (MW) 24GHz. The use of two technologies drastically reduces the number of false alarms.
Pyroelement
Quad - provides higher precision of infrared signal analysis.
Range and viewing angle
Maximum range: 12 m; Detection angle: 360° - full coverage of the area under the detector.
Sensitivity adjustment
Automatic (Auto) or low level - allows the device to be adapted to the specifics of the room.
Alarm outputs
NC / EOL / 2EOL - flexibility in connection to various alarm control panels.
Recommended mounting height
From 2.4 m to 4 m - optimal height for maintaining declared range parameters.
LED indication
Tri-colour LED: Blue (Alarm), Red (PIR), Green (Microwave).
Digital functions
Digital temperature compensation: Yes; Creep zone protection: Yes; White light filter: Yes.
Tamper protection
Detection of housing opening and detection of device removal from the surface (Tamper).
Movement parameters
Detectable movement speed: from 0.3 m/s to 2 m/s.
Power supply and current consumption
Supply voltage: 9 V ... 16 V DC; Maximum current consumption: 100 mA.
Operating conditions
Operating temperature: -10 °C ... 55 °C; Humidity: permissible operation inside buildings.
Construction and dimensions
Plastic housing; Dimensions: Ø 120 x 33 mm; Weight: 0.138 kg.
Identification and Warranty
Manufacturer: Hikvision; SAP Code: 314300254; Warranty period: 2 years.
Contents
1x DS-PDCL12DT-EG2 dual detector
1x Set of mounting screws
1x User manual
Dimensions, Weight
Product dimensions: 33 x 120 x 120 mm (D x W x H)
Packaging dimensions: 50 x 130 x 130 mm (D x W x H)
Product weight: 138 g
Weight with packaging: 186 g
