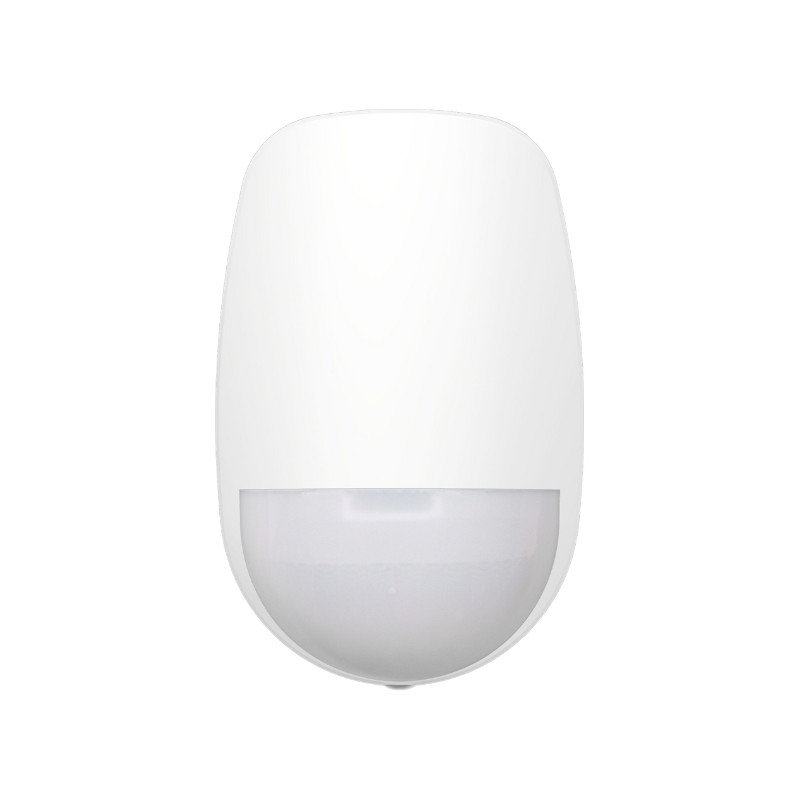

Dual PIR and Microwave detector 15m with Anti-masking and Anti-cloaking function Hikvision DS-PDD15AM-EG2
zł287.82
Tax included
The DS-PDD15AM-EG2 is a professional, wired dual-technology motion detector that combines the precision of passive infrared (PIR) with the reliability of microwave (MW) technology. The device is designed for the most demanding security systems, offering a detection range of up to 15 metres with an 85.9-degree field of view. Thanks to the use of advanced digital algorithms, the detector effectively eliminates false alarms, ensuring high repeatability of operating parameters in variable environmental conditions.
A key advantage of the model is the built-in Anti-masking function, which detects attempts to cover the detector lens, significantly increasing the security level of the facility. Additionally, Anti-cloaking and Anti-blocking technologies ensure that the device remains effective even in situations where an intruder attempts to hide their thermal signature or block the sensor's operation. The built-in microwave module operating in the 24 GHz band provides excellent motion detection, and automatic temperature compensation allows for stable operation in a wide temperature range from -10 to 55 degrees Celsius.
The detector features a robust housing with tamper protection against opening, which is essential in professional Grade 2 alarm installations. The device is easy to install, and its compact dimensions allow for discreet installation indoors. Thanks to the built-in white light filter with an efficiency of up to 6500 lux, the detector is resistant to blinding by strong light sources, making it an ideal solution for offices, shops, and industrial facilities.
Dual PIR and Microwave detector 15m with Anti-masking and Anti-cloaking function
Model: Hikvision DS-PDD15AM-EG2
EAN: 6931240042878 SKU: 931042874
- Dual technology: PIR + Microwave (MW)
- Detection range up to 15 metres
- Anti-masking function (detection of covering)
- Anti-cloaking and Anti-blocking functions
- Digital temperature compensation
- Built-in white light filter (6500 Lux)
- Tamper protection for the housing
- Grade 2 security level (EN50131-2-4:2020)
- Automatic sensitivity adjustment
Description
The DS-PDD15AM-EG2 is a professional, wired dual-technology motion detector that combines the precision of passive infrared (PIR) with the reliability of microwave (MW) technology. The device is designed for the most demanding security systems, offering a detection range of up to 15 metres with an 85.9-degree field of view. Thanks to the use of advanced digital algorithms, the detector effectively eliminates false alarms, ensuring high repeatability of operating parameters in variable environmental conditions.
A key advantage of the model is the built-in Anti-masking function, which detects attempts to cover the detector lens, significantly increasing the security level of the facility. Additionally, Anti-cloaking and Anti-blocking technologies ensure that the device remains effective even in situations where an intruder attempts to hide their thermal signature or block the sensor's operation. The built-in microwave module operating in the 24 GHz band provides excellent motion detection, and automatic temperature compensation allows for stable operation in a wide temperature range from -10 to 55 degrees Celsius.
The detector features a robust housing with tamper protection against opening, which is essential in professional Grade 2 alarm installations. The device is easy to install, and its compact dimensions allow for discreet installation indoors. Thanks to the built-in white light filter with an efficiency of up to 6500 lux, the detector is resistant to blinding by strong light sources, making it an ideal solution for offices, shops, and industrial facilities.
Specification
Application
Indoor
Sensor type
Passive infrared (PIR) and microwave (MW)
Recommended mounting height
1.8 m ... 2.4 m
Range
15 m
Detection angle
85.9 °
Sensitivity adjustment
Automatic
Alarm output
NC
Tamper output
Yes
LED indication
Yes
Microwave frequency band
24.15 GHz ... 24.25 GHz
Pet immunity
No
Anti-masking function
Yes
Anti-cloaking
Yes
Anti-blocking
Yes
Digital temperature compensation
Yes
Security grade
EN50131-2-4:2020 Grade 2
Environmental class EN 50130-5
II
Power supply
9 ... 16V DC / 25mA
Operating temperature
-10 °C ... 55 °C
Detectable motion speed
0.3 ... 2 m/s
Colour
White
Selected features
Creep zone control, Tamper detection - opening of the housing, digital detection algorithm with temperature compensation, White light filter - 6500 Lux
Warranty
2 years
Contents
1x Dual detector DS-PDD15AM-EG2
Dimensions, Weight
Product dimensions: 46 x 104 x 66 mm (D x W x H)
Packaging dimensions: 65 x 125 x 75 mm (D x W x H)
Product weight: 100 g
Weight with packaging: 160 g
