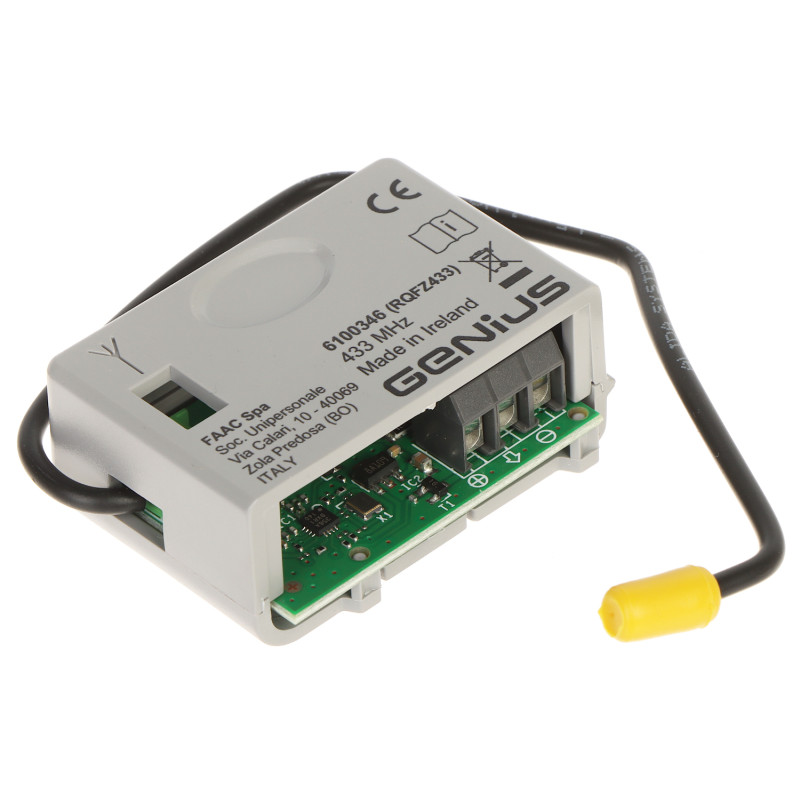

2-channel radio receiver 433.92MHz for home and garage gate automation drives radio controller gate module FAAC GENIUS-XF433
zł221.40
Tax included
The GENIUS-XF433 radio module is an advanced, two-channel radio signal receiver designed specifically for seamless integration with GENIUS and FAAC brand gate automation systems. This device is a key component of remote control systems, allowing for safe and comfortable management of property entrances. Thanks to the use of modern radio technology operating at a frequency of 433.92 MHz, the module ensures a stable connection and high resistance to interference, which is extremely important in dense urban environments.
The main advantage of the GENIUS-XF433 module is its dual-channel capability, meaning it can independently control two different drive functions or two separate devices (e.g., gate opening and driveway lighting). The device's memory allows for the programming of up to 250 codes, making it an ideal solution not only for single-family homes but also for smaller housing communities or company car parks.
Installation of the module is extremely simple and fast, as confirmed by professional installers. The device is mounted directly into a dedicated connector on the drive control board, from which it also draws the necessary 24V DC power. Compact dimensions ensure the module fits into any controller housing. The operating range in open space is up to 50 metres, allowing the gate to be opened well in advance, significantly increasing traffic flow and user comfort. By choosing an original FAAC/GENIUS module, the user receives a guarantee of the highest quality workmanship and full compatibility with their existing automation system.
2-channel radio receiver 433.92MHz for home and garage gate automation drives radio controller gate module
Model: FAAC GENIUS-XF433
EAN: 6931240048504 SKU: 931048508
- Support for 2 independent radio channels for controlling various functions
- Memory allowing storage of up to 250 unique remote control codes
- Operation on a stable and proven 433.92 MHz frequency
- Powered directly from the drive control unit (24V DC) via system connector
- Very easy plug-in installation without the need for soldering
- Range of up to 50 metres in open space for convenience
- Compact dimensions for easy installation in tight housings
- High quality workmanship guaranteed by the FAAC / GENIUS brand
Description
The GENIUS-XF433 radio module is an advanced, two-channel radio signal receiver designed specifically for seamless integration with GENIUS and FAAC brand gate automation systems. This device is a key component of remote control systems, allowing for safe and comfortable management of property entrances. Thanks to the use of modern radio technology operating at a frequency of 433.92 MHz, the module ensures a stable connection and high resistance to interference, which is extremely important in dense urban environments.
The main advantage of the GENIUS-XF433 module is its dual-channel capability, meaning it can independently control two different drive functions or two separate devices (e.g., gate opening and driveway lighting). The device's memory allows for the programming of up to 250 codes, making it an ideal solution not only for single-family homes but also for smaller housing communities or company car parks.
Installation of the module is extremely simple and fast, as confirmed by professional installers. The device is mounted directly into a dedicated connector on the drive control board, from which it also draws the necessary 24V DC power. Compact dimensions ensure the module fits into any controller housing. The operating range in open space is up to 50 metres, allowing the gate to be opened well in advance, significantly increasing traffic flow and user comfort. By choosing an original FAAC/GENIUS module, the user receives a guarantee of the highest quality workmanship and full compatibility with their existing automation system.
Specification
Application
Professional gate automation system by GENIUS and FAAC, designed for controlling sliding and swing gate drives in residential and industrial construction.
Device type
Internal, two-channel radio receiver in the form of a module plugged directly into the control unit's electronics board.
Operating frequency
Standard 433.92 MHz frequency, providing an excellent balance between range and resistance to typical radio interference in built-up areas.
Power supply
24 V DC voltage drawn directly from the controller's system connector, eliminating the need for additional power supplies and cables.
Number of channels
2 independent output channels that allow different functions to be assigned to remote control buttons, e.g., full gate opening and pedestrian function (partial opening).
Memory capacity
Advanced memory module allowing for the secure storage and handling of up to 250 unique radio transmitter (remote control) codes.
Radio communication range
Up to 50 metres in open space; range may vary depending on terrain, presence of architectural obstacles, and electromagnetic interference.
System compatibility
Full and native cooperation with transmitters and control units belonging to the GENIUS / FAAC ecosystem.
Mounting method
Fast plug-in (pin) connector, enabling instant installation without the use of tools or soldering.
Coding
Secure radio signal coding system, minimising the risk of code interception by unauthorised persons.
Selected functional features
Two independent control channels, large memory capacity, high receiver sensitivity, stability of operating parameters over time.
Operating conditions
Device adapted for operation inside control unit housings, resistant to vibrations and ambient temperature changes.
Manufacturer / Brand
FAAC / GENIUS - renowned Italian manufacturer of entrance and garage automation systems.
Warranty
Standard manufacturer's warranty of 24 months (2 years), providing technical and service support.
Contents
1x GENIUS-XF433 radio module
1x Installation and programming manual
Dimensions, Weight
Product dimensions: 22 x 52 x 36 mm (D x W x H)
Packaging dimensions: 37 x 140 x 95 mm (D x W x H)
Product weight: 30 g
Weight with packaging: 42 g
