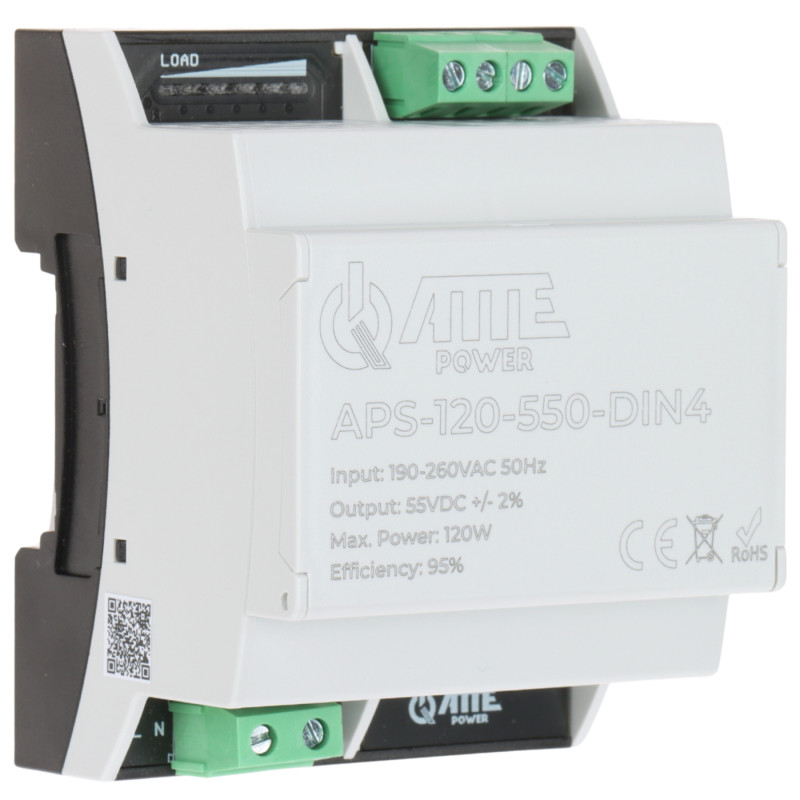

55V DC 2.2A 120W switched-mode power supply for TH35 DIN rail for IP PoE CCTV monitoring systems efficient stabilised ATTE APS-1
zł282.22
Tax included
APS-120-550-DIN4 is an advanced 120W switched-mode power supply designed specifically for professional IP CCTV systems and modern building automation. The device provides a stable 55V DC output voltage, making it an ideal component for powering PoE switches, IP cameras, and other network devices requiring a high standard of power supply. Thanks to the use of modern electronic circuits, the power supply achieves an impressive efficiency of up to 95% at full load, which translates into lower electricity consumption and longer component life due to reduced heat emission.
Main product advantages:
- Exceptional stability of the 55V DC output voltage with a tolerance of only 2%.
- Possibility of creating redundant power systems through parallel connection of two power supplies, which guarantees system continuity even in the event of a single unit failure.
- Compact DIN4 housing that takes up little space in the mounting cabinet.
- Full protection of connected devices thanks to integrated surge and overload protection.
- Intuitive optical LED signalling informing about the operating status and current load level.
- Wide operating temperature range allowing for installation in difficult environmental conditions.
The APS-120-550-DIN4 power supply is a guarantee of safety and reliability for your installation. The product from the Polish brand ATTE is synonymous with quality, which will work wherever 24/7 failure-free operation is required. By choosing this model, you are investing in equipment that will meet the highest technical requirements and provide stable power for key network infrastructure elements. The device is fully compatible with TH35 rail mounting standards, which facilitates integration into existing electrical switchboards.
55V DC 2.2A 120W switched-mode power supply for TH35 DIN rail for IP PoE CCTV monitoring systems efficient stabilised
Model: ATTE APS-120-550-DIN4
EAN: 6931240019931 SKU: 931019936
- 55V DC output voltage ideal for PoE systems
- High energy efficiency at 95%
- Mounting on standard TH35 DIN rail
- Possibility of operation in a redundant system (connection of 2 units)
- Advanced surge and overload protection
- Clear LED indication of operating status and load
- Wide operating temperature range from -25°C to +65°C
Description
APS-120-550-DIN4 is an advanced 120W switched-mode power supply designed specifically for professional IP CCTV systems and modern building automation. The device provides a stable 55V DC output voltage, making it an ideal component for powering PoE switches, IP cameras, and other network devices requiring a high standard of power supply. Thanks to the use of modern electronic circuits, the power supply achieves an impressive efficiency of up to 95% at full load, which translates into lower electricity consumption and longer component life due to reduced heat emission.
Main product advantages:
- Exceptional stability of the 55V DC output voltage with a tolerance of only 2%.
- Possibility of creating redundant power systems through parallel connection of two power supplies, which guarantees system continuity even in the event of a single unit failure.
- Compact DIN4 housing that takes up little space in the mounting cabinet.
- Full protection of connected devices thanks to integrated surge and overload protection.
- Intuitive optical LED signalling informing about the operating status and current load level.
- Wide operating temperature range allowing for installation in difficult environmental conditions.
The APS-120-550-DIN4 power supply is a guarantee of safety and reliability for your installation. The product from the Polish brand ATTE is synonymous with quality, which will work wherever 24/7 failure-free operation is required. By choosing this model, you are investing in equipment that will meet the highest technical requirements and provide stable power for key network infrastructure elements. The device is fully compatible with TH35 rail mounting standards, which facilitates integration into existing electrical switchboards.
Specification
Power supply type
Switched-mode - characterised by high efficiency and stability of output parameters
Input voltage
190 V ... 260 V AC, 50 Hz (standard mains voltage)
Output voltage
55 V DC +/- 2% (stabilised DC voltage)
Current efficiency
2.2 A (maximum output current)
Power supply rating
120 W (total rated power of the device)
Efficiency
95 % @ 120 W (very low energy loss level)
Number of outputs
1 pc. (screw terminals)
Overload protection
Advanced circuit protecting the power supply electronics and receivers against the effects of excessive current consumption
Surge protection
Effective barrier protecting against sudden voltage spikes from the power grid
Status LED signalling
Multifunctional LED indicating correct input power and device readiness for operation
Load LED signalling
Visual control of the power supply load level, allowing for quick system status diagnostics
Housing type
DIN4 - standard modular width for control cabinets
Mounting
TH35 (DIN) mounting rail - quick snap-on mounting
Operating temperature
-25 °C ... 65 °C (wide environmental range)
Application
Powering IP PoE devices, PoE switches, industrial automation systems, CCTV monitoring
Contents
1x APS-120-550-DIN4 switched-mode power supply
Dimensions, Weight
Product dimensions: 61 x 72 x 90 mm (D x W x H)
Packaging dimensions: 70 x 105 x 80 mm (D x W x H)
Product weight: 156 g
Weight with packaging: 182 g
