- New

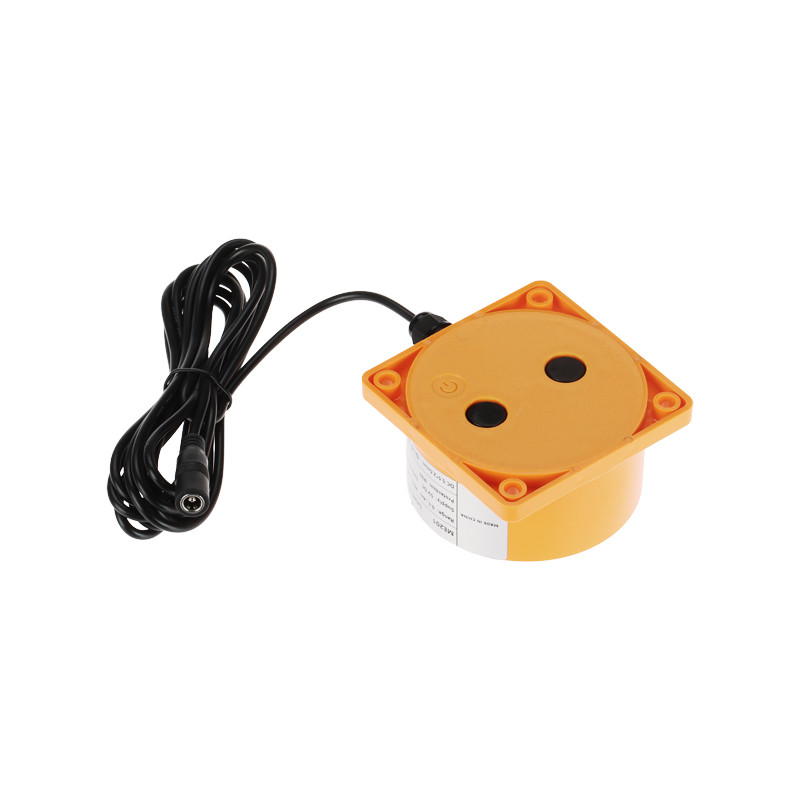

Tuya Smart Wi-Fi Ultrasonic Liquid Level Sensor ATLO ATLO-ME201W-TUYA
zł238.02
Tax included
The ATLO-ME201W-TUYA is an advanced ultrasonic liquid level sensor designed for modern home automation systems. The device uses ultrasonic technology to precisely measure liquid levels in tanks, offering a measuring range from 0.1 to 4 meters with high accuracy of ±0.02 m. Thanks to the built-in Wi-Fi module, the sensor connects directly to the home wireless network, enabling remote monitoring of the tank status and receiving real-time notifications.
The advantages of the device include full integration with the Tuya Smart / Smart Life ecosystem, which allows for the creation of advanced automation scenarios, such as automatically turning on a pump when a low liquid level is reached. The IP65-rated housing ensures reliable operation in harsh conditions, and the wide operating temperature range from -20°C to 70°C makes the sensor ideal for use in typical tank installations. The device configuration is extremely simple and intuitive, performed using a touch button located on the housing. This is a reliable solution for anyone who values control over water or other liquid resources in their home or farm.
Tuya Smart Wi-Fi Ultrasonic Liquid Level Sensor
Model: ATLO ATLO-ME201W-TUYA
EAN: 6931240086742 SKU: 931086745
- Ultrasonic liquid level measurement
- Built-in 2.4 GHz Wi-Fi module
- Compatible with Tuya Smart / Smart Life application
- Measuring range 0.1 - 4 m
- High measurement accuracy ±0.02 m
- IP65 ingress protection rating
- Touch configuration button
- Power supply 5V DC
Description
The ATLO-ME201W-TUYA is an advanced ultrasonic liquid level sensor designed for modern home automation systems. The device uses ultrasonic technology to precisely measure liquid levels in tanks, offering a measuring range from 0.1 to 4 meters with high accuracy of ±0.02 m. Thanks to the built-in Wi-Fi module, the sensor connects directly to the home wireless network, enabling remote monitoring of the tank status and receiving real-time notifications.
The advantages of the device include full integration with the Tuya Smart / Smart Life ecosystem, which allows for the creation of advanced automation scenarios, such as automatically turning on a pump when a low liquid level is reached. The IP65-rated housing ensures reliable operation in harsh conditions, and the wide operating temperature range from -20°C to 70°C makes the sensor ideal for use in typical tank installations. The device configuration is extremely simple and intuitive, performed using a touch button located on the housing. This is a reliable solution for anyone who values control over water or other liquid resources in their home or farm.
Specification
Cooperation
Tuya Smart platform. It combines the capabilities of many devices from different manufacturers in one application and operates on a cloud basis. This makes it possible to bypass a router with a static IP, and one application is enough to manage all equipment - Tuya Smart, which can be used via a mobile network from anywhere.
Detection
Liquid level in the tank
Alarm signaling
Signal to the Tuya Smart mobile application - High and low status signaling (limit levels set in the application)
Frequency band
2.4 GHz WiFi IEEE 802.11 b/g/n
Radio communication range
Range limited only by Wi-Fi network availability
Mobile phone access
Operation possible via Wi-Fi network using a mobile application for iOS and Android systems. The Tuya Smart application allows for remote viewing of the liquid level, setting alarm thresholds, reviewing event history, and integration with other devices within the smart home. The user receives push notifications in case of exceeding defined levels, which allows for a quick reaction and prevents overflow or dry running of the pump.
Power supply
5V DC
Selected features
Measured level range: 0.1 ... 4 m; Measurement accuracy: ± 0.02 m; Touch ON-OFF button; Cable length: 2.75 m
Ingress protection rating
IP65 - full protection against dust and protection against water jets
Operating temperature
-20 °C ... 70 °C
Manufacturer / Brand
ATLO
Warranty
2 years
Contents
1x ATLO-ME201W-TUYA liquid level sensor
Dimensions, Weight
Product dimensions: 41 x 80 x 80 mm (D x W x H)
Package dimensions: 50 x 165 x 100 mm (D x W x H)
Product weight: 150 g
Weight with packaging: 266 g
