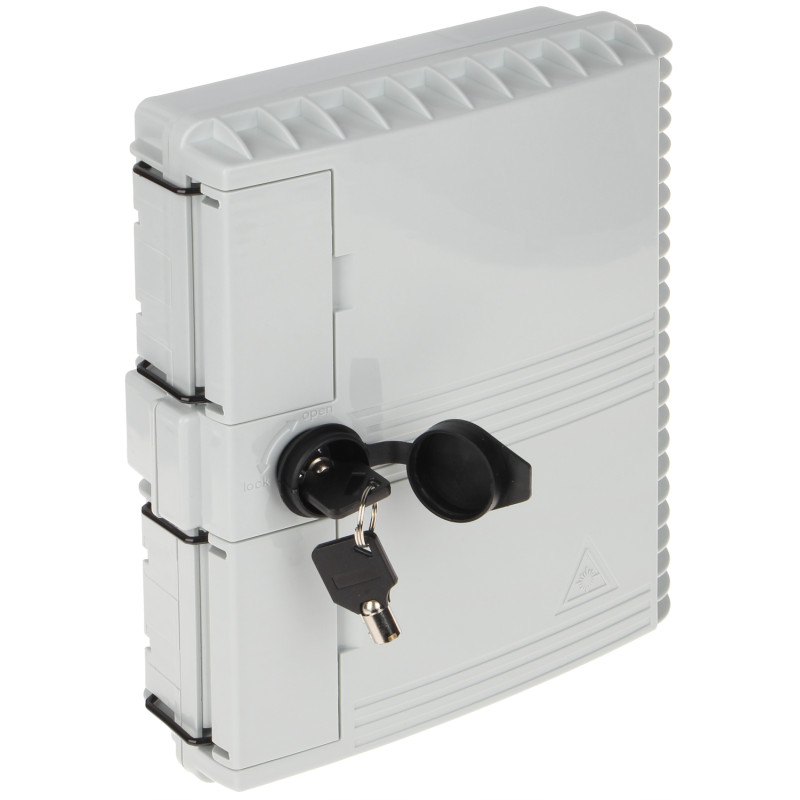

Outdoor wall-mounted fiber optic patch panel IP65 12x SC Simplex 12x LC Duplex white box splice enclosure OPTON PPO-12
zł136.92
Tax included
The fiber optic patch panel is a key element of network infrastructure, designed for professional termination of line cables both inside and outside buildings. This model is characterized by high-quality workmanship using durable plastic, which ensures longevity and resistance to mechanical damage. Thanks to the IP65 protection rating, the device is fully protected against dust and water jets, allowing for safe installation in harsh environmental conditions.
The main advantage of the product is its versatility – it allows for the installation of up to 12 SC Simplex adapters or 12 LC Duplex adapters, providing great flexibility when designing FTTH networks. Inside the housing, there is space for a splice tray, which facilitates fiber organization and protects fusion or mechanical splices. The ergonomic design allows for easy access to the interior, which significantly speeds up installation and maintenance work.
Installation security is enhanced by a key locking system, protecting against unauthorized access by third parties. The aesthetic white color makes the patch panel discreetly blend in with the facade or interior decor. The set includes the necessary mounting accessories, making the product ready for use right out of the box. By choosing this solution, you invest in stability and order in your fiber optic network, minimizing the risk of failures resulting from improper connection protection.
Outdoor wall-mounted fiber optic patch panel IP65 12x SC Simplex 12x LC Duplex white box splice enclosure
Model: OPTON PPO-12
EAN: 6931240080351 SKU: 931080354
- Supports up to 12 SC Simplex or 12 LC Duplex adapters
- High IP65 protection rating allowing for outdoor installation
- Integrated splice tray for easy fiber organization
- Robust plastic housing resistant to weather conditions
- Key lock for protection against unauthorized access
- Capacity for 12 fusion or mechanical splices
- Aesthetic white color and compact dimensions
Description
The fiber optic patch panel is a key element of network infrastructure, designed for professional termination of line cables both inside and outside buildings. This model is characterized by high-quality workmanship using durable plastic, which ensures longevity and resistance to mechanical damage. Thanks to the IP65 protection rating, the device is fully protected against dust and water jets, allowing for safe installation in harsh environmental conditions.
The main advantage of the product is its versatility – it allows for the installation of up to 12 SC Simplex adapters or 12 LC Duplex adapters, providing great flexibility when designing FTTH networks. Inside the housing, there is space for a splice tray, which facilitates fiber organization and protects fusion or mechanical splices. The ergonomic design allows for easy access to the interior, which significantly speeds up installation and maintenance work.
Installation security is enhanced by a key locking system, protecting against unauthorized access by third parties. The aesthetic white color makes the patch panel discreetly blend in with the facade or interior decor. The set includes the necessary mounting accessories, making the product ready for use right out of the box. By choosing this solution, you invest in stability and order in your fiber optic network, minimizing the risk of failures resulting from improper connection protection.
Specification
Device type
Professional wall-mounted fiber optic patch panel designed for cable terminations in fiber optic technology.
Number of line cables
The device allows for the entry of a maximum of 2 main line cables through dedicated cable glands.
Number of splice trays
Inside there is 1 hinged splice tray, which allows for convenient storage of fiber slack.
Adapter capacity
The patch panel supports up to 12 SC Simplex adapters or up to 12 LC Duplex adapters (after replacing the inserts).
Number of splices
The design allows for the safe placement of 12 fusion splice sleeves or the use of mechanical splices.
Protection class
The IP65 protection rating guarantees complete dust-tightness and resistance to water jets from any direction.
Housing material
Made of durable ABS plastic, which is characterized by high resistance to impacts and weather conditions.
Locking system
Equipped with a solid mechanical key lock, which prevents unauthorized interference with the network structure.
Color and aesthetics
White housing, characterized by a modern design, perfectly masking on light-colored building walls.
Mounting method
Adapted for quick wall mounting (hanging) using standard mounting plugs included in the set.
Application
Ideal for building FTTH access networks, IP monitoring systems based on fiber optics, and indoor backbones.
Fiber management
Internal organizers and guides force the maintenance of the minimum bending radius of glass fibers, which prevents signal attenuation.
Environmental resistance
Product resistant to corrosion, moisture, and variable temperatures, which allows for many years of trouble-free operation.
Manufacturer warranty
24 months (2 years) for business and individual customers, implemented in a door-to-door system.
Contents
1x PPO-12 fiber optic patch panel
1x Lock key
2x Cable gland
Set of mounting plugs
Cable ties
Dimensions, Weight
Product dimensions: 82 x 212 x 259 mm (D x W x H)
Package dimensions: 105 x 275 x 225 mm (D x W x H)
Product weight: 870 g
Weight with packaging: 1058 g
