- New

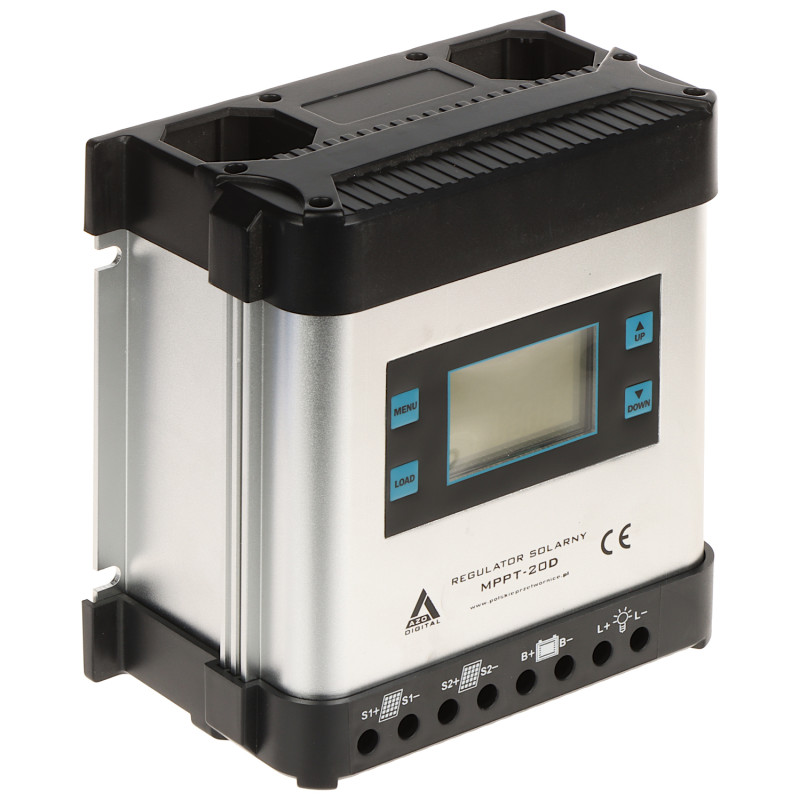

MPPT LCD Solar Battery Charge Controller 20A AZO Digital SCC-20A-MPPT-LCD
zł503.25
Tax included
The SCC-20A-MPPT-LCD solar controller is an advanced device designed to optimize the operation of photovoltaic systems. Solar panels, as an ecological energy source, require stabilization of power parameters because their efficiency is strongly dependent on the angle of light incidence and weather conditions. Even slight shading can drastically reduce the efficiency of the entire system. Using this controller in a set with a panel and a battery allows for storing excess energy and ensuring a stable power supply for receivers.
A key advantage of this model is the MPPT (Maximum Power Point Tracking) technology, which tracks the maximum power point of the panel. As a result, the device charges batteries much faster and more efficiently than standard PWM controllers. This is particularly important in difficult lighting conditions, such as early morning hours, evenings, or periods of partial shading. The controller supports panels connected in series or parallel, provided that the permissible current-voltage parameters are maintained. The device is equipped with a clear LCD display and LED diodes that facilitate real-time monitoring of the system's operating status. The product is dedicated to working with AGM and gel batteries, ensuring an optimal charging process and long service life.
MPPT LCD Solar Battery Charge Controller 20A
Model: AZO Digital SCC-20A-MPPT-LCD
EAN: 6931240085103 SKU: 931085103
- Advanced MPPT (Maximum Power Point Tracking) technology
- High charging efficiency compared to PWM controllers
- Built-in LCD display for easy parameter monitoring
- LED indicators for device operating status
- Support for AGM and gel batteries
- Possibility of connecting panels in series and parallel
- Supply voltage stabilization for receivers
- Protection against suboptimal energy utilization
Description
The SCC-20A-MPPT-LCD solar controller is an advanced device designed to optimize the operation of photovoltaic systems. Solar panels, as an ecological energy source, require stabilization of power parameters because their efficiency is strongly dependent on the angle of light incidence and weather conditions. Even slight shading can drastically reduce the efficiency of the entire system. Using this controller in a set with a panel and a battery allows for storing excess energy and ensuring a stable power supply for receivers.
A key advantage of this model is the MPPT (Maximum Power Point Tracking) technology, which tracks the maximum power point of the panel. As a result, the device charges batteries much faster and more efficiently than standard PWM controllers. This is particularly important in difficult lighting conditions, such as early morning hours, evenings, or periods of partial shading. The controller supports panels connected in series or parallel, provided that the permissible current-voltage parameters are maintained. The device is equipped with a clear LCD display and LED diodes that facilitate real-time monitoring of the system's operating status. The product is dedicated to working with AGM and gel batteries, ensuring an optimal charging process and long service life.
Specification
Regulation type
MPPT (Maximum Power Point Tracking) – technology for tracking the maximum power point of the panel, ensuring higher charging efficiency in variable lighting conditions.
Rated voltage
12V / 24V DC (automatic detection)
Rated current
20A
Battery charging current
max. 20A
Load current
max. 20A
Permissible input voltage range
20V ... 60V for 12V battery; 30V ... 90V for 24V battery (range of the highest operating voltage of the panel array)
Output voltage
Equal to the voltage at the battery terminals
Supported battery types
AGM, gel
User interface
LCD display showing operating parameters, LED diodes indicating charging and device operating status.
Manufacturer / Brand
AZO Digital
Warranty
2 years
Contents
1x Solar controller SCC-20A-MPPT-LCD
Dimensions, Weight
Product dimensions: 93 x 177 x 175 mm (D x W x H)
Packaging dimensions: 105 x 235 x 190 mm (D x W x H)
Product weight: 1410 g
Weight with packaging: 1576 g
