- New

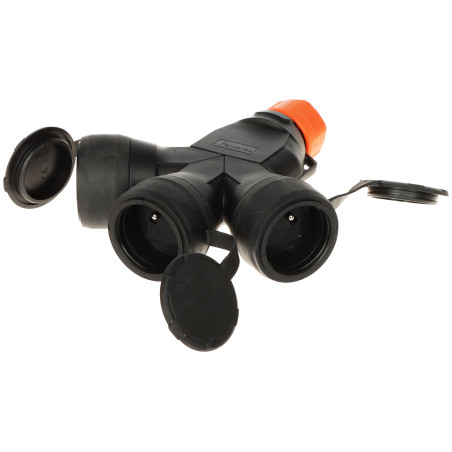

Portable Triple Socket 250V 16A IP54 IK08 Construction Workshop Power Splitter Robust Rubber Famatel XF188G-EPN
zł171.18
Tax included
The XF188G-EPN portable triple socket is a professional power supply solution that combines exceptional durability with high functionality. Designed for operation in harsh conditions, it features an increased IP54 ingress protection rating, providing effective protection against dust and water splashes from any direction. This makes it ideal for construction sites, workshops, and industrial halls. The housing, made of high-quality Polyamide 6, guarantees mechanical resistance at the IK08 level, meaning the device is resistant to impacts and drops, which are common in demanding work environments.
One of the key advantages of this model is the innovative cable gland equipped with a quick-connector. It allows for secure and tight cable fastening without the need for specialized tools, which significantly speeds up the assembly and maintenance process. The ergonomic shape of the housing and the specially designed handle facilitate a firm grip, even when wearing work gloves, and allow for effortless plug removal. The socket has three CEE 7/5 slots (with earthing pin), each protected by a solid cap that shields the interior from contaminants when the socket is not in use.
The product is fully compatible with XF series plugs, and their combined use allows for maintaining full protective parameters. The aesthetic black and orange finish increases the visibility of the socket, which translates into a higher level of safety in the workplace. It is a reliable installation component that will meet the expectations of the most demanding users looking for durability and safety. By choosing this model, you are investing in equipment that will survive years of intensive use in the toughest industrial conditions.
Portable Triple Socket 250V 16A IP54 IK08 Construction Workshop Power Splitter Robust Rubber
Model: Famatel XF188G-EPN
EAN: 6931240063767 SKU: 931063767
- Increased IP54 ingress protection against dust and water
- High IK08 mechanical impact and drop resistance
- Innovative cable gland with quick-connector for tool-free assembly
- Three CEE 7/5 sockets with earthing pin
- Made of durable Polyamide 6
- Ergonomic handle for easy plug disconnection
- Individual protective caps for each socket
- Bright color scheme for improved visibility and OHS safety
Description
The XF188G-EPN portable triple socket is a professional power supply solution that combines exceptional durability with high functionality. Designed for operation in harsh conditions, it features an increased IP54 ingress protection rating, providing effective protection against dust and water splashes from any direction. This makes it ideal for construction sites, workshops, and industrial halls. The housing, made of high-quality Polyamide 6, guarantees mechanical resistance at the IK08 level, meaning the device is resistant to impacts and drops, which are common in demanding work environments.
One of the key advantages of this model is the innovative cable gland equipped with a quick-connector. It allows for secure and tight cable fastening without the need for specialized tools, which significantly speeds up the assembly and maintenance process. The ergonomic shape of the housing and the specially designed handle facilitate a firm grip, even when wearing work gloves, and allow for effortless plug removal. The socket has three CEE 7/5 slots (with earthing pin), each protected by a solid cap that shields the interior from contaminants when the socket is not in use.
The product is fully compatible with XF series plugs, and their combined use allows for maintaining full protective parameters. The aesthetic black and orange finish increases the visibility of the socket, which translates into a higher level of safety in the workplace. It is a reliable installation component that will meet the expectations of the most demanding users looking for durability and safety. By choosing this model, you are investing in equipment that will survive years of intensive use in the toughest industrial conditions.
Specification
Rated voltage
250 V AC, 50 / 60 Hz
Maximum current capacity
16 A (maximum load 3680 W)
Number and type of sockets
3 x CEE 7/5 (French standard with earthing pin)
Earthing
Yes, full protective earthing for each slot
Ingress protection class
IP54 (protection against dust ingress and water splashes)
Mechanical resistance class
IK08 (resistance to impacts with energy up to 5J)
Material
Polyamide 6 (PA6) - high thermal and chemical resistance
Cable mounting system
Cable gland with quick-connector, manual tool-free assembly
Electric cable
Supports cables with a maximum cross-section of 3 x 2.5 mm²
Cable terminals
Screw terminals ensuring stable contact
Additional protection
Integrated spring-loaded protective flaps for each socket
Ergonomics
Specially profiled handle for pulling and hanging
Color scheme
Black body with orange warning elements
Operating temperature
Adapted for operation in harsh outdoor and workshop conditions
Software and interface
The device is a fully passive mechanical component and does not contain integrated circuits, processors, or firmware-type control software. The user interface is limited to physical connection sockets and mechanical protective flaps. Due to the lack of digital components, the device is 100% resistant to cyberattacks and system errors, and does not require software updates, which guarantees immediate readiness for work in any conditions without the need for network configuration or mobile app installation.
Contents
1x Portable triple socket XF188G-EPN
1x Assembly manual
Dimensions, Weight
Product dimensions: 184 x 184 x 56 mm (D x W x H)
Packaging dimensions: 195 x 195 x 65 mm (D x W x H)
Product weight: 394 g
Weight with packaging: 430 g
