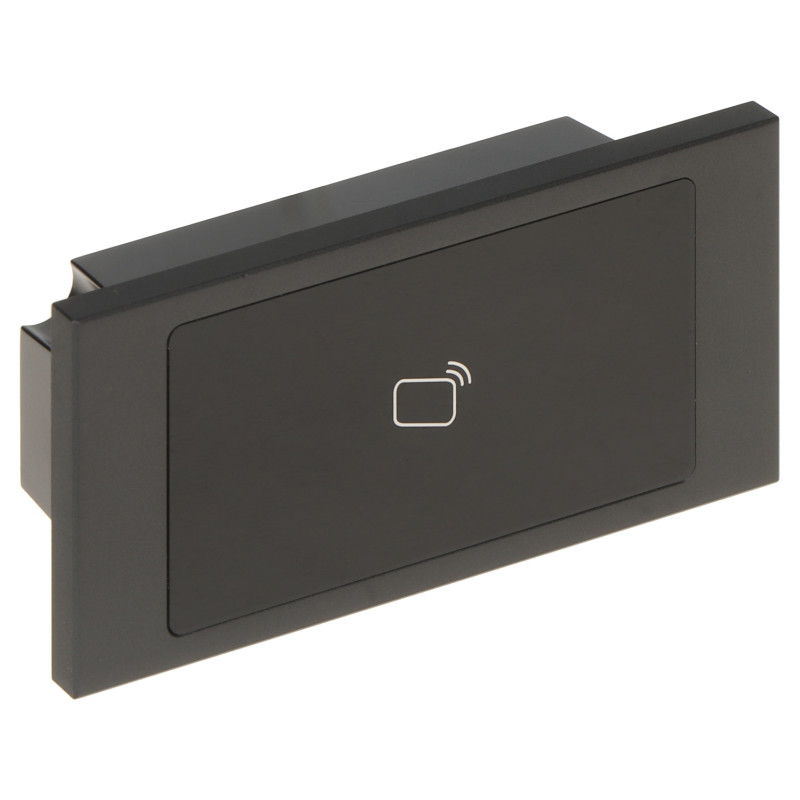

RFID Unique 125kHz proximity reader module for VTO4202FB modular IP video intercom system DAHUA VTO4202FB-MR1
zł274.29
Tax included
The proximity reader module is a key component of a modern video intercom system, significantly increasing the comfort of daily use and the security level of the facility. The device is designed as an expansion module for the VTO4202FB series door stations, allowing for flexible configuration of the outdoor panel according to individual user needs.
The main advantage of this solution is the ability to quickly and contactlessly open the entrance using proximity cards or key fobs operating in the Unique EM 125kHz standard. Thanks to support for up to 10,000 users, the module is ideal for both single-family homes and large multi-tenant buildings or office buildings. A solid construction combining metal and high-quality plastic ensures an aesthetic appearance and exceptional durability.
The device is characterized by a high IP65 ingress protection rating and IK07 mechanical resistance, which guarantees reliable operation in difficult weather conditions and protection against vandalism. Integration with the Dahua system allows for full access management from the mobile application or computer software, making this module an extremely functional tool in access control systems.
The use of a modular design allows for easy system expansion with additional functions, such as a numeric keypad or a fingerprint reader, while maintaining a consistent and professional appearance of the outdoor panel. Choosing this module is an investment in reliability and modernity, signed by a renowned manufacturer of security systems.
RFID Unique 125kHz proximity reader module for VTO4202FB modular IP video intercom system
Model: DAHUA VTO4202FB-MR1
EAN: 6931240076767 SKU: 931076763
- Compatibility with VTO4202FB modular system
- Support for Unique EM 125kHz standard
- Capacity for up to 10,000 user cards
- High IP65 ingress protection rating
- IK07 mechanical impact resistance
- Powered directly from the main module
- Robust metal and plastic housing
- Wide operating temperature range from -20°C to 60°C
Description
The proximity reader module is a key component of a modern video intercom system, significantly increasing the comfort of daily use and the security level of the facility. The device is designed as an expansion module for the VTO4202FB series door stations, allowing for flexible configuration of the outdoor panel according to individual user needs.
The main advantage of this solution is the ability to quickly and contactlessly open the entrance using proximity cards or key fobs operating in the Unique EM 125kHz standard. Thanks to support for up to 10,000 users, the module is ideal for both single-family homes and large multi-tenant buildings or office buildings. A solid construction combining metal and high-quality plastic ensures an aesthetic appearance and exceptional durability.
The device is characterized by a high IP65 ingress protection rating and IK07 mechanical resistance, which guarantees reliable operation in difficult weather conditions and protection against vandalism. Integration with the Dahua system allows for full access management from the mobile application or computer software, making this module an extremely functional tool in access control systems.
The use of a modular design allows for easy system expansion with additional functions, such as a numeric keypad or a fingerprint reader, while maintaining a consistent and professional appearance of the outdoor panel. Choosing this module is an investment in reliability and modernity, signed by a renowned manufacturer of security systems.
Specification
Device type
RFID proximity reader module
Compatibility
Dedicated for use with the VTO4202FB-P-S2 camera module and other VTO4202FB-X series modules
Reading standard
Support for cards and key fobs in the Unique EM 125 kHz standard
Reading range
Maximum reading distance is up to 8 cm, which ensures convenience of use
Memory capacity
The device allows for registering and handling up to 10,000 proximity cards
Communication interface
Cascaded connection with the main module using a dedicated connector
Power supply
5V DC - voltage supplied directly from the main module or the previous module in the series
Power consumption
Very low power consumption at the level of ≤ 1 W during operation
Housing construction
Made of a combination of metal and durable graphite-colored plastic
Ingress protection rating
IP65 - high resistance to dust and water jets (additional sealing required during installation)
Mechanical resistance
IK07 - protection against impacts with energy up to 2J
Environmental conditions
Wide operating temperature range from -20 °C to +60 °C allows for outdoor installation
Dimensions and weight
Compact dimensions of 100 x 49.9 x 28.5 mm with a weight of only 90 grams
Software and configuration
The device is fully manageable via the web interface of the main video intercom module and dedicated Dahua tools. The ConfigTool software allows for quick initialization, firmware updates, and searching for devices on the local network. User and card management is intuitive, allowing for assigning permissions, creating access schedules, and viewing event logs. The system works with the DMSS (Digital Mobile Surveillance System) mobile application, which enables remote call answering, video preview, and lock opening from anywhere in the world. The application offers real-time push notifications, which significantly increases interaction with the security system and allows for full control over the entrance to the facility directly from an Android or iOS smartphone.
Contents
1x VTO4202FB-MR1 reader module
1x Connection ribbon cable
1x Mounting screw kit
1x Quick start guide
Dimensions, Weight
Product dimensions: 29 x 50 x 100 mm (D x W x H)
Package dimensions: 155 x 135 x 55 mm (D x W x H)
Product weight: 90 g
Weight with packaging: 162 g
