- New

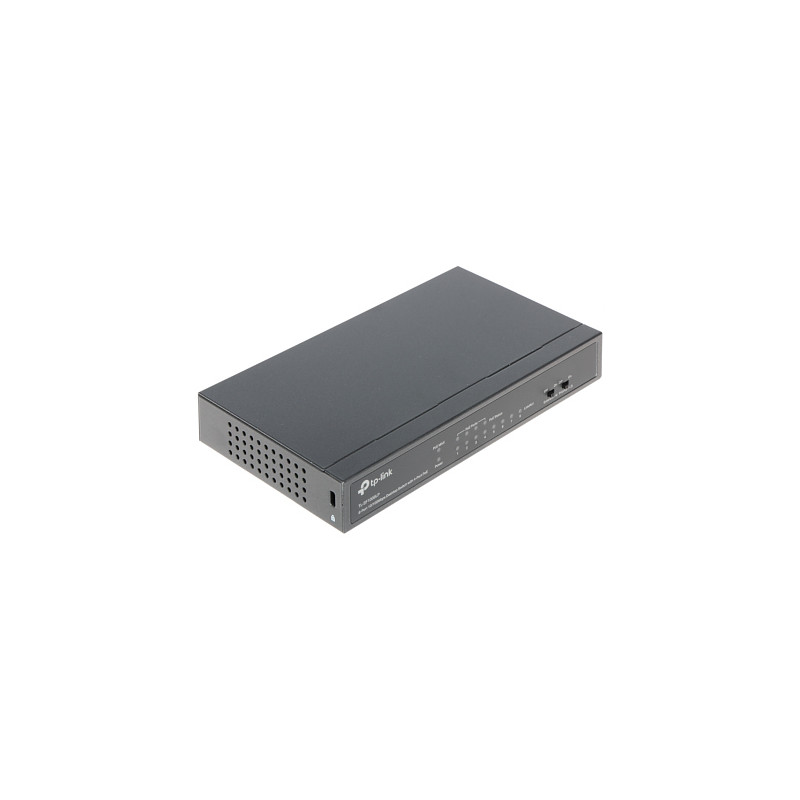

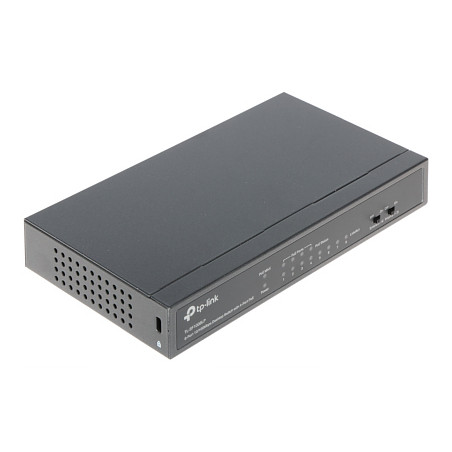

8-Port 10/100 Mbps PoE Switch 4x PoE 41W Desktop Extended Range 250m Metal Housing TP-LINK TL-SF1008LP
zł196.48
Tax included
The TP-LINK TL-SF1008LP is a reliable 8-port desktop switch that is an ideal solution for expanding home or office computer networks. The device offers 8 RJ45 ports with 10/100 Mbps speed, 4 of which support Power over Ethernet (PoE) technology. This allows for simultaneous data transmission and power supply to end devices such as IP cameras, access points, or VoIP phones using a single standard network cable, which significantly reduces costs and simplifies installation.One of the key advantages of this model is the intelligent port prioritization function. In situations where the total power consumption exceeds the 41W budget, the switch automatically manages energy by cutting power to lower-priority ports to ensure stable operation of devices connected to ports 1-4 (maintaining the port-1 > port-2 > port-3 > port-4 hierarchy). Thanks to this, the most important elements of the monitoring system always remain active.The device offers a unique Extend mode, which enables data and PoE power transmission at a distance of up to 250 meters at 10 Mbps speed. This functionality is invaluable in extensive video monitoring installations where the standard 100-meter limit for UTP cable is insufficient. Additionally, Priority mode allows for assigning the highest priority to data transmission on ports 1-2, which guarantees smooth video images from cameras even under heavy network load.The switch is enclosed in a solid metal housing that not only protects internal components but also effectively dissipates heat. The fanless design ensures completely silent operation, making the device discreet and suitable for placement directly in an office workspace. Thanks to Plug and Play technology, installation does not require any configuration – the device is ready to work immediately after taking it out of the box.
8-Port 10/100 Mbps PoE Switch 4x PoE 41W Desktop Extended Range 250m Metal Housing
Model: TP-LINK TL-SF1008LP
EAN: 6931240082881 SKU: 931082883
- 8 x 10/100 Mbps RJ45 ports
- 4 x PoE ports (802.3af) with 41W power budget
- Extend mode: transmission range up to 250m on ports 1-4
- Priority mode: high priority for ports 1-2 (video transmission)
- Power prioritization function protecting the system from overload
- Plug and Play - no configuration required
- Robust metal desktop housing
- Silent operation due to fanless design
- Support for Auto-MDI/MDIX and Auto-negotiation
- Compliance with FCC, CE and RoHS certificates
Description
The TP-LINK TL-SF1008LP is a reliable 8-port desktop switch that is an ideal solution for expanding home or office computer networks. The device offers 8 RJ45 ports with 10/100 Mbps speed, 4 of which support Power over Ethernet (PoE) technology. This allows for simultaneous data transmission and power supply to end devices such as IP cameras, access points, or VoIP phones using a single standard network cable, which significantly reduces costs and simplifies installation.
One of the key advantages of this model is the intelligent port prioritization function. In situations where the total power consumption exceeds the 41W budget, the switch automatically manages energy by cutting power to lower-priority ports to ensure stable operation of devices connected to ports 1-4 (maintaining the port-1 > port-2 > port-3 > port-4 hierarchy). Thanks to this, the most important elements of the monitoring system always remain active.The device offers a unique Extend mode, which enables data and PoE power transmission at a distance of up to 250 meters at 10 Mbps speed. This functionality is invaluable in extensive video monitoring installations where the standard 100-meter limit for UTP cable is insufficient. Additionally, Priority mode allows for assigning the highest priority to data transmission on ports 1-2, which guarantees smooth video images from cameras even under heavy network load.The switch is enclosed in a solid metal housing that not only protects internal components but also effectively dissipates heat. The fanless design ensures completely silent operation, making the device discreet and suitable for placement directly in an office workspace. Thanks to Plug and Play technology, installation does not require any configuration – the device is ready to work immediately after taking it out of the box.Specification
LAN Ports
8x RJ45 (including 4 PoE ports)
Transmission speed
10 / 100 Mbps (Auto-Negotiation)
PoE Standards
IEEE 802.3af
Maximum output power
15.4 W / PoE port
Maximum total power
41 W
MAC address table
2k (Auto-learning, Auto-aging)
Operating modes
Extend On: 250 m, 10 Mbps @ UTP cat. 5e, 6 (Ports 1-4)
Extend Off: 100 m, 100 Mbps @ UTP cat. 5e, 6
Selected features
High priority ports: Ports 1-2 (dedicated to video)
Support for 3 modes: Priority, Standard, Extend
IEEE 802.3x Flow Control
Auto MDI/MDIX
LED indicators
Power, Link/Act, PoE Status, PoE Max
Certificates
FCC, CE, RoHS
Power supply
53.5 V DC / 0.81 A (external power adapter included)
Housing
Metal, Desktop, Fanless
Operating temperature
0 °C ... 40 °C
Warranty
3 years
Software
The device operates under the control of integrated firmware that manages traffic at Layer 2. The system automatically performs the Auto-Negotiation function, adjusting the connection speed to the capabilities of the connected device. The implementation of Auto-learning and Auto-aging algorithms for the 2K MAC address table ensures lightning-fast packet switching. The software supports an advanced QoS (Quality of Service) mechanism that prioritizes video traffic on ports 1 and 2, minimizing latency and image jitter. Additionally, the intelligent power management system monitors power consumption on PoE ports and, if it approaches the 41W limit, manages power distribution according to the programmed port hierarchy, protecting the switch from damage and ensuring the continuity of operation for the most important devices.
Contents
1x Switch TL-SF1008LP
1x Power adapter
1x Installation guide
Dimensions, Weight
Product dimensions: 100 x 171 x 28 mm (D x W x H)
Package dimensions: 225 x 280 x 65 mm (D x W x H)
Product weight: 340 g
Weight with packaging: 928 g
