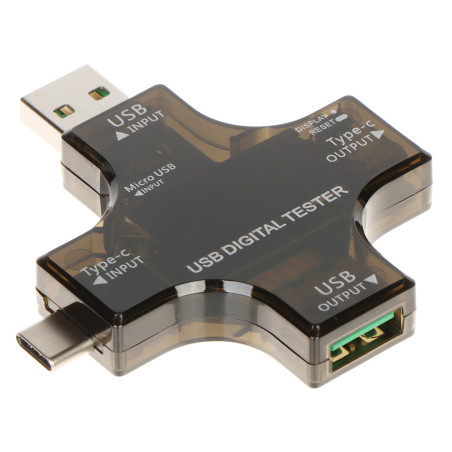

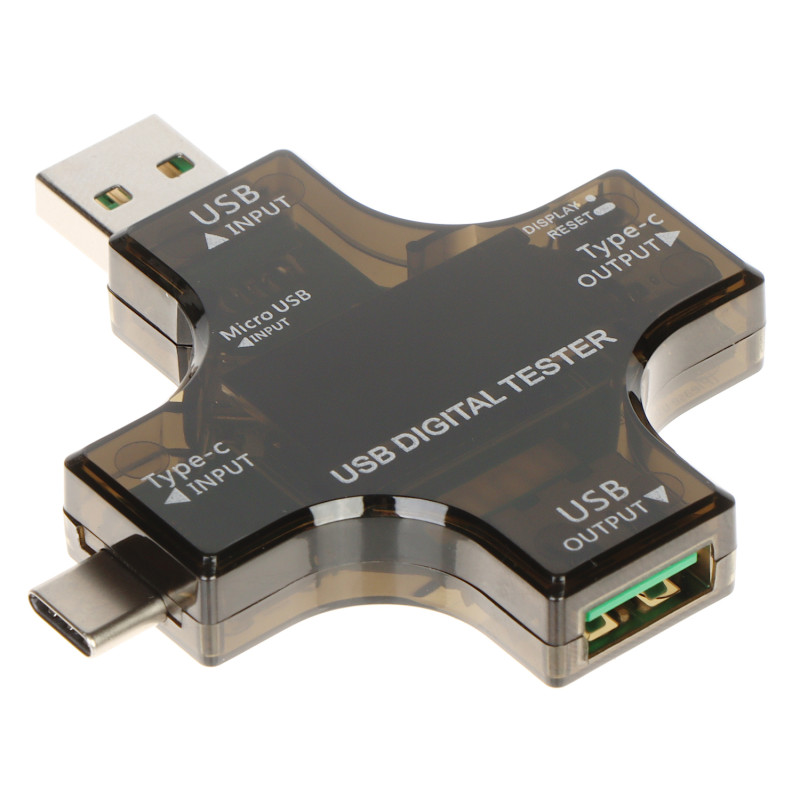

Multifunctional USB USB-C Micro USB Tester Voltage Current Power Capacity Meter LCD QC PD

Model: Spacetronik SP-UT01

EAN: 6931240020111 SKU: 931020110

• Full support for Quick Charge 2.0/3.0 and Power Delivery 2.0/3.0 fast charging standards
• Clear 0.96-inch color LCD display presenting a complete set of measurement data
• Wide DC voltage measurement range from 3.6V to 32V and current up to 5.1A
• Ability to measure actual battery capacity (mAh) and accumulated energy (mWh)
• Built-in ambient and device temperature sensor operating in the 0-80°C range
• Precise load impedance measurement allowing for cable quality testing
• Compact housing made of durable plastic with multiple types of input and output connectors

Description

The Spacetronik SP-UT01 multifunctional USB tester is an advanced and indispensable diagnostic tool for every user of modern electronics, service technician, and mobile gadget enthusiast. This compact meter allows for instant and extremely precise verification of the operating parameters of USB Type-A, USB Type-C, and micro USB ports. Thanks to it, you can easily check whether your wall charger, car charger, or power bank actually delivers the power declared by the manufacturer and whether the cables used do not cause excessive energy losses.

The device is distinguished by an exceptionally wide voltage measurement range from 3.6V up to 32V, which makes it fully compatible with the latest fast charging standards such as Power Delivery (PD) and Quick Charge (QC). The 0.96-inch color LCD display presents data in an extremely clear way, allowing for simultaneous reading of voltage, current, power, temperature, and accumulated energy.

Product advantages:

- Precise diagnostics: Measurement accuracy to two decimal places allows for the detection of even the smallest power supply irregularities.

- Connector versatility: Support for USB-A, USB-C, and micro USB guarantees compatibility with almost every modern device.

- Safety monitoring: Built-in temperature sensor protects the tested equipment from overheating.

- Battery health analysis: Capacity (mAh) and energy (mWh) measurement function allows for a reliable assessment of the condition of batteries in phones and power banks.

- Compact and durable design: The housing made of solid plastic ensures the longevity and portability of the device.

The SP-UT01 tester is a complete diagnostic center that will help you optimize the charging process and take care of the safety of your valuable electronic equipment.

Specification

Device type

Multifunctional power parameter meter for USB, USB-C, and micro USB ports

Input connector type

1 x USB-A plug, 1 x USB-C plug, 1 x microSD slot (test input)

Output connector type

1 x USB-A socket, 1 x USB-C socket

LCD display

0.96-inch high-resolution color screen

DC voltage measurement

3.6 V ... 32 V with accuracy @ 0.01 V

DC current measurement

0 A ... 5.1 A with accuracy @ 0.01 A

Power measurement

0 W ... 150 W with accuracy @ 0.01 W

Battery capacity measurement

0 mAh ... 99999 mAh with accuracy @ 1 mAh

Impedance measurement

1 Ω ... 999.9 Ω with accuracy @ 0.1 Ω

Temperature measurement

0 °C ... 80 °C with accuracy @ 1 °C

Time display range

Maximum 999 h 59 min 59 s with resolution @ 1 s

Maximum load

150 W (safe device operating limit)

Accumulated energy

0.000 mWh ... 999999 mWh with accuracy @ 1 mWh

Charging standards

PD 2.0, PD 3.0, QC 2.0, QC 3.0, BC 1.2 and other fast charging protocols

Software and functions

The device has a built-in real-time operating system that manages the data sampling process at a high frequency. The graphical interface on the 0.96-inch LCD display allows for monitoring multiple parameters simultaneously. The system offers an automatic detection function for fast charging protocols such as Power Delivery (PD 2.0/3.0), Quick Charge (QC 2.0/3.0), and BC1.2, which is crucial for the safe diagnostics of modern smartphones and laptops. The software also allows for resetting capacity and energy counters, which enables comparative testing of different power sources. The algorithms embedded in the firmware ensure precise impedance calculation and temperature monitoring, which prevents damage to the tester at a maximum load of 150W. Thanks to the intuitive menu, the user can easily switch between screens presenting numerical data and graphs of parameter changes over time.

Contents

1x USB Tester SP-UT01

1x User manual

1x Foil packaging

Dimensions, Weight

Product dimensions: 11 x 67 x 61 mm (D x W x H)

Packaging dimensions: 25 x 150 x 120 mm (D x W x H)

Product weight: 30 g

Weight with packaging: 74 g
