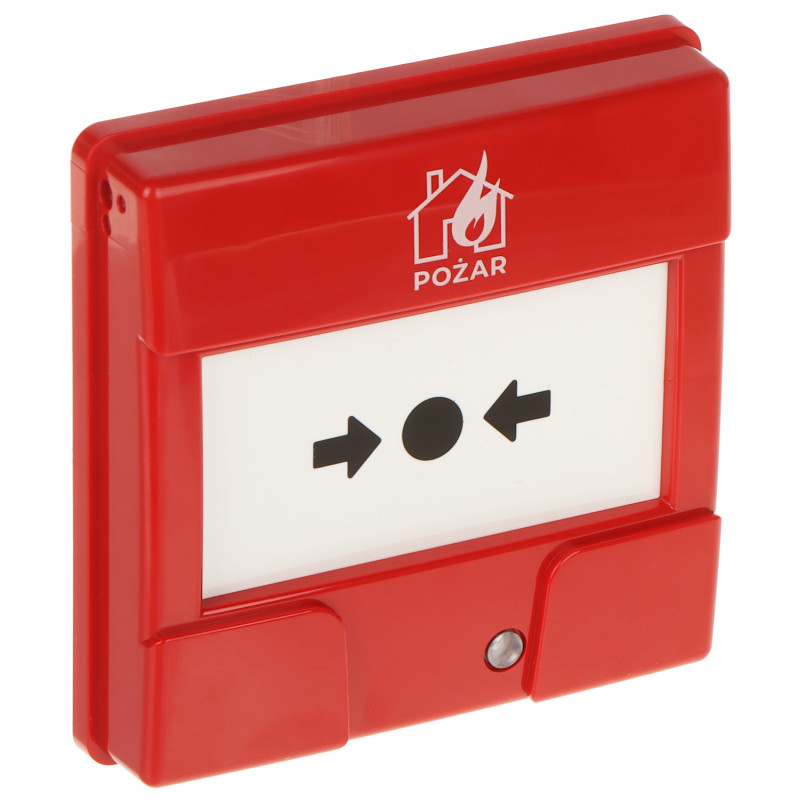

Fire Alarm Manual Call Point ROP Manual Fire Alarm Button CSP Fire System LED Alarm SATEL ROP-110/PL
zł186.50
Tax included
The ROP-110/PL fire alarm call point is an advanced device designed to immediately trigger a fire alarm in protected facilities. It is a key element of security systems that allows for manual notification of a monitoring station or control panel about the occurrence of a threat. The product was created by a renowned Polish manufacturer, SATEL, which guarantees the highest quality of workmanship and reliability in critical situations.
One of the main advantages of the device is the use of a reusable plastic window. This solution eliminates the need to replace broken elements after each use or test, which significantly reduces system operating costs. The set includes a special key that allows for safe opening of the housing, performing an alarm test, and its subsequent reset to standby mode. The device is fully compatible with modern fire alarm control panels from the SATEL CSP series (models 104, 108, 204, 208), which allows for the construction of a coherent and effective fire protection system.
The product is characterized by an aesthetic appearance and a solid construction that meets strict safety standards. It is equipped with an LED indicating the active state, which allows for quick identification of the device that initiated the alarm. Thanks to the wide supply voltage range (9V - 30V DC) and low current consumption, the ROP-110/PL is an energy-efficient solution that is easy to integrate with existing installations. By choosing this product, you are investing in a proven, Polish solution that effectively increases the level of safety for people and property in any building.
Fire Alarm Manual Call Point ROP Manual Fire Alarm Button CSP Fire System LED Alarm
Model: SATEL ROP-110/PL
EAN: 6931240092712 SKU: 931092711
- Manual fire alarm call point dedicated to SATEL CSP systems
- Reusable plastic window - no need for replacement after testing
- Built-in LED indicating the alarm status of the device
- Special key included for testing and resetting the alarm
- Wide supply voltage range from 9V to 30V DC
- Low current consumption in alarm state (only 25 mA)
- High quality confirmed by CNBOP and CPR certificates
- Polish product with an established position in the security market
Description
The ROP-110/PL fire alarm call point is an advanced device designed to immediately trigger a fire alarm in protected facilities. It is a key element of security systems that allows for manual notification of a monitoring station or control panel about the occurrence of a threat. The product was created by a renowned Polish manufacturer, SATEL, which guarantees the highest quality of workmanship and reliability in critical situations.
One of the main advantages of the device is the use of a reusable plastic window. This solution eliminates the need to replace broken elements after each use or test, which significantly reduces system operating costs. The set includes a special key that allows for safe opening of the housing, performing an alarm test, and its subsequent reset to standby mode. The device is fully compatible with modern fire alarm control panels from the SATEL CSP series (models 104, 108, 204, 208), which allows for the construction of a coherent and effective fire protection system.
The product is characterized by an aesthetic appearance and a solid construction that meets strict safety standards. It is equipped with an LED indicating the active state, which allows for quick identification of the device that initiated the alarm. Thanks to the wide supply voltage range (9V - 30V DC) and low current consumption, the ROP-110/PL is an energy-efficient solution that is easy to integrate with existing installations. By choosing this product, you are investing in a proven, Polish solution that effectively increases the level of safety for people and property in any building.
Specification
Device type
Manual Call Point (MCP)
System compatibility
SATEL fire alarm control panels: CSP-104, CSP-108, CSP-204, CSP-208
Supply voltage
9 V ... 30 V DC (direct current)
Current consumption
25 mA in alarm state
Optical signaling
LED indicating active state (alarm triggered)
Window construction
Plastic window, flexible, reusable
Service functions
Possibility of testing without breaking the window, alarm reset using a key
Environmental conditions
Operating temperature from -10 °C to 55 °C
Housing material
High-quality damage-resistant plastic
Color scheme
Red (in accordance with standards for fire protection systems)
Certification and standards
CNBOP approval certificate, CPR certificate, Declaration of Performance (DoP)
Application
Indoors, fire alarm systems
Installation
Surface-mounted (requires a dedicated box) or flush-mounted
Software and System
The device works with the system logic of SATEL CSP control panels. The CSP system offers advanced algorithms for analyzing signals from detectors and MCP buttons, which minimizes the risk of false alarms. The control panel interface allows for precise location of the activated button in the detection zone. The control panel software enables full diagnostics of the detection line, detection of circuit breaks and short circuits, which ensures the device is continuously ready for operation. The system supports remote monitoring of alarm and technical states, which is crucial for security services and fire system maintenance technicians.
Contents
1x ROP-110/PL button
1x Service key
1x User manual
Dimensions, Weight
Product dimensions: 40 x 87 x 87 mm (D x W x H)
Package dimensions: 60 x 105 x 95 mm (D x W x H)
Product weight: 86 g
Weight with packaging: 136 g
